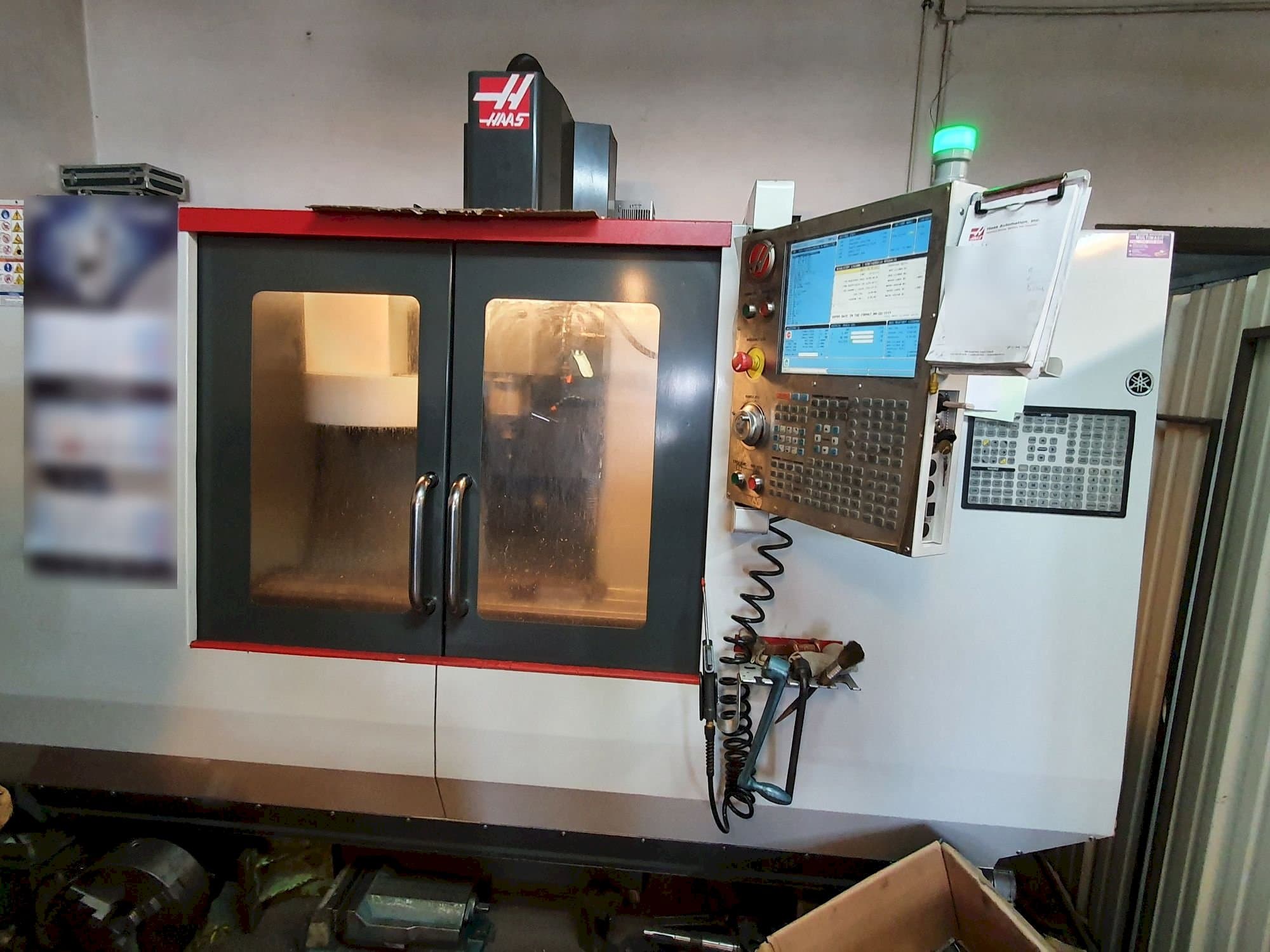

This HAAS TM-2P Vertical Milling Machine was manufactured in 2014 in the United States. It counts with 6228 production hours, of which 1519 are spindle hours. This 3 axis machine is operated through a control unit of the same brand. It stands out for being a high-speed machine with a spindle speed up to 6000 rpm. This machine is in very good working condition, ready for test and with its full documentation available.

Overview

brand: HAAS
year: 2014
MODEL: TM-2P
production hours: 6228
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS TM-2P

General Data

Measurements width: 3310 MM
Measurements depth: 1990 MM
Measurements height: 2510 mm
Machine weight: 2359 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 5.6 kW
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 406 mm

Table

Outer length: 1466 MM
Outer width: 267 mm

Tools

Max weight: 5.4 kg
Max tool diameter: 89 mm
Type of tool holder: Carousel

Media

Main electronic connection: 220 VAC (3 Phase) / 50 - 60 Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High-speed machining
- - Spindle drive system: direct speed, belt drive
- - Table: t-slot type
- - Max torque 45. 0 nm @1200 rpm
- - Changing time: 5. 7 s
- - Automatic tool changer: 10 pocket
Qualitative Machine Benefits:
- - Machine in very good working condition, ready for test.
- - Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
