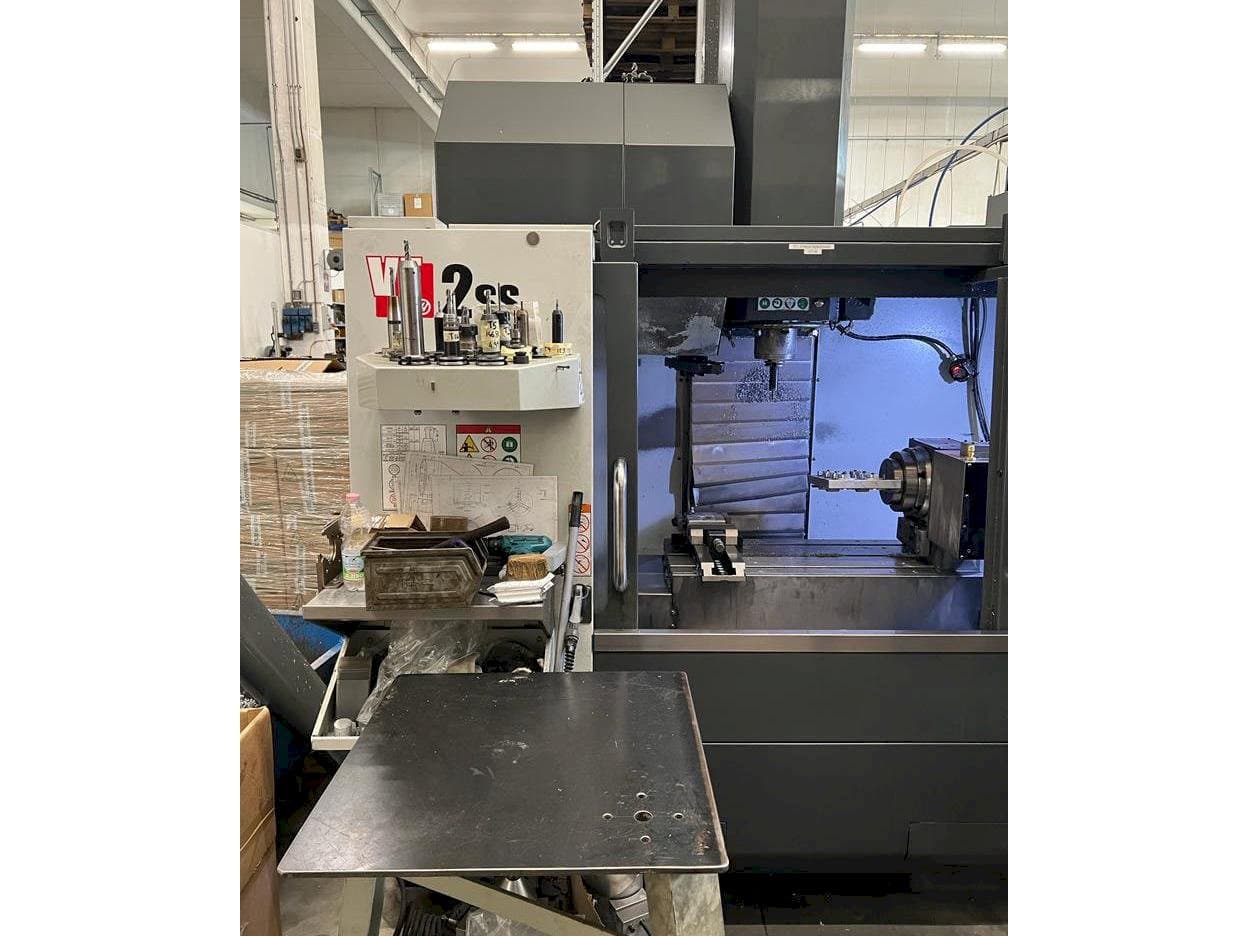

HAAS VF-2SS Vertical Machine Center

Show in original language

This HAAS VF-2SS Vertical Machine Center was made in the year 2018 and has 6500 hours. It is equipped with a Haas control unit. The machine has a spindle speed of 12000 rpm and an X/Y/Z axis travels 762 x 406 x 508 mm.

Overview

brand: HAAS
year: 2018
MODEL: VF-2SS
production hours: 6500
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-2SS

General Data

Measurements width: 2300 mm
Measurements depth: 2150 mm
Measurements height: 2450 mm

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 KW

Movement

X-AXIS Movement: 762 mm
X-AXIS Rapid traverse: 35.6 m/min
Y-AXIS Movement: 406 mm
Y-AXIS Rapid traverse: 35.6 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 35.6 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - From spindle nose to plate 102 mm
- - Cone ct40(din 19871)
- - Max. Cutting speed 20. 5 m/min
- - Random tool change, tool change capacity 30+1 vertical
- - Failure detection module power: si, wi-fi connection, cnc memory 32 gb, 15 " color monitor, usb/wi-fi data transmission
- - Rigid tapping yes, ngc(new generation control) yes
- - Passage of refr. Through the spindle 21 bar
- - 4th axis drive and wiring, continuous 4th axis table hrt-210
- - Intuitive probe system tast. Piece renishaw, intuitive probe system tast. Renishaw tool, intuitive program si system
- - Yes: coordinate rotation system, macro variables and scale factors, coordinate rotation system, auger chip extractor
Qualitative Machine Benefits:
- - Yes: air jet through tooling , high pressure auxiliary filter , programmable coolant nozzle,
- - Internal and external service light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
