HAAS VF-3YT Vertical machining center

Show in original language

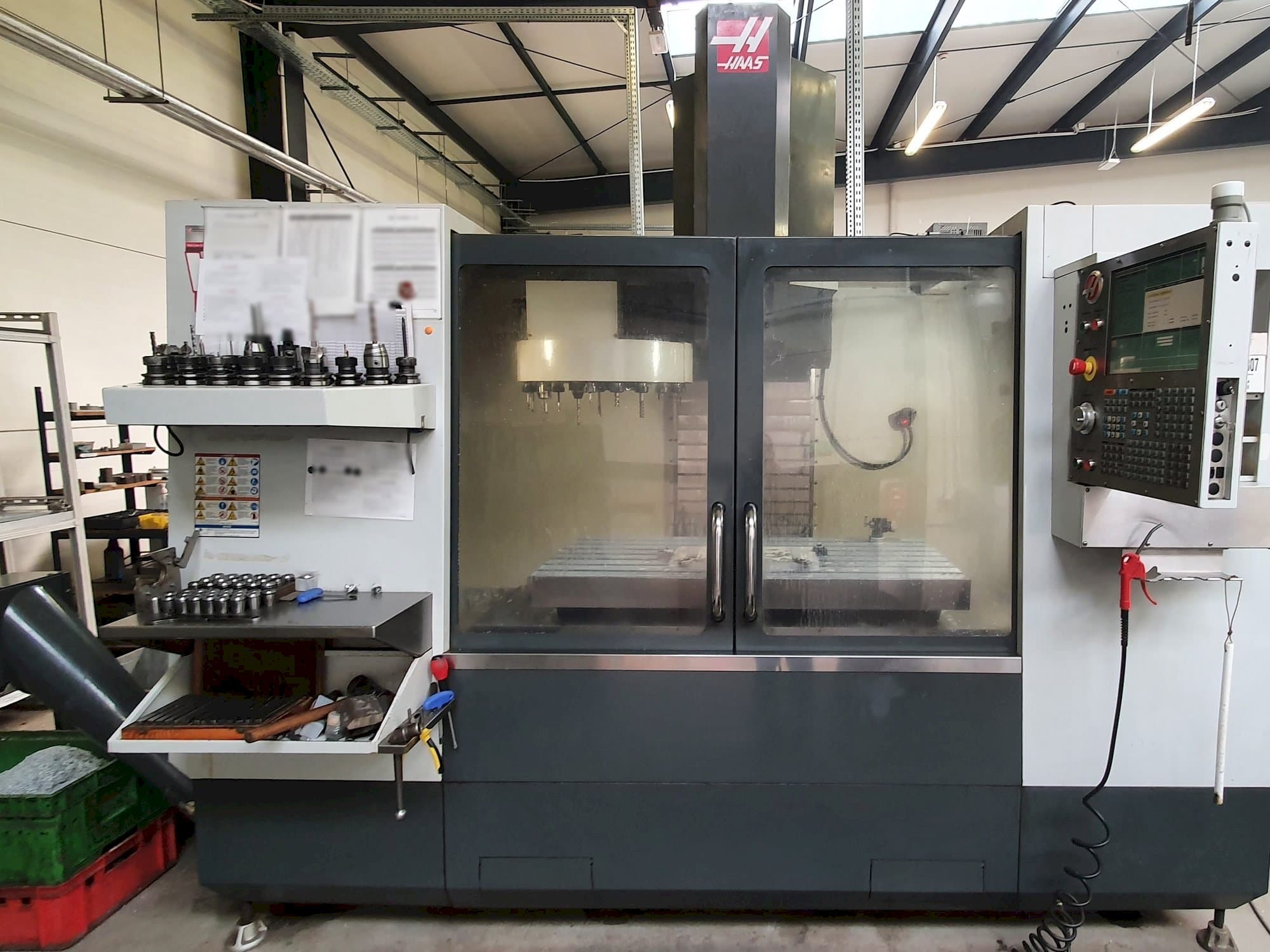

This HAAS VF-3YT Vertical machining center was manufactured in the United States in the year 2012. This 3 axis machine is operated through a control unit of the same brand. It has a spindle speed up to 8100 rpm. It has a 1372 x 635 mm table with a capacity of 1588 kg of table load. Machine ready for tests. Ready to install 4th axis (rotary).

Overview

brand: HAAS
year: 2012
MODEL: VF-3YT
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-3YT

General Data

Measurements width: 3960 mm
Measurements depth: 2590 mm
Measurements height: 3230 mm
Machine weight: 6350 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 8100 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1372 mm
Outer width: 635 mm
Table load: 1588 kg

Tools

Max weight: 5.4 kg
Max tool diameter: 89 mm

Media

Main electronic connection: 360-480V / 50-60Hz

Additional Equipment

- No tooling included in the offer

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool changer: carousel type
- - Atc: 20 pcs
- - Spindle taper: bt40
- - Max. Tool diameter: 89 mm
- - Max. Tool length: 250 mm
- - Max. Tool weight 5. 4 kg
Qualitative Machine Benefits:
- - Machine ready for tests
- - Ready to install 4th axis (rotary)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
