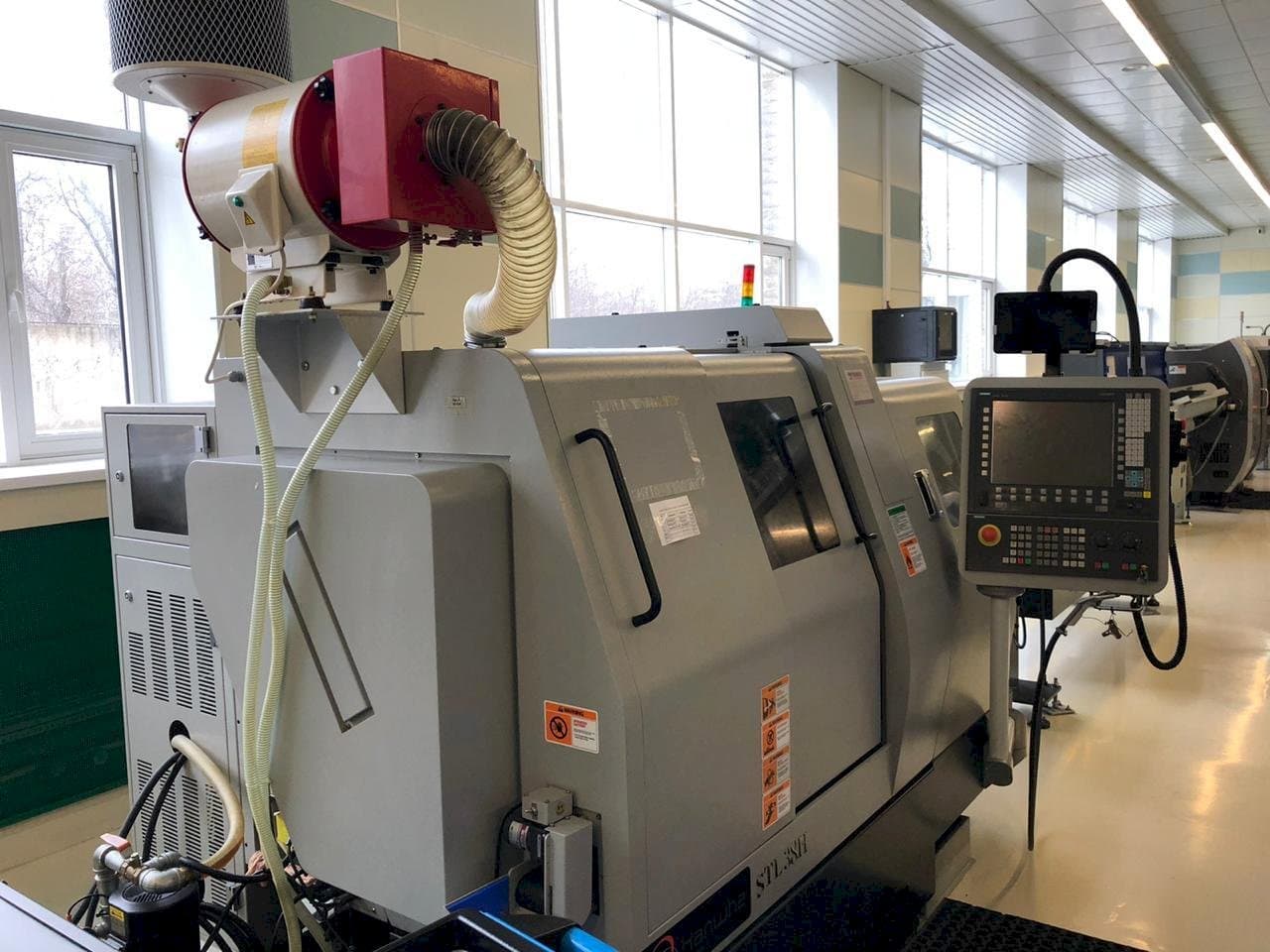

Hanwha STL 38H Lathe

Show in original language

This Hanwha STL 38H Lathe was manufactured in Korea in the year 2011. It is operated through a Siemens 840D control unit. It is counts with a main spindle which can work with a spindle speed up to 8000 rpm, and a counter spindle which can work with a spindle speed up to 7000 rpm. Both spindles can work with an indexing 1º, and a full axis with 0.001 º

Overview

brand: Hanwha
year: 2014
MODEL: STL 38H
application type: Turning
Location: Russia
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Hanwha STL 38H

General Data

Measurements width: 2790 mm
Measurements depth: 1730 mm
Measurements height: 1785 mm
Machine weight: 4600 kg

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 8 kW

Media

Main electronic connection: 40 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle: travel 320 mm, max. Processed Ø (mm) 38, indexing 1º, full axis with 0. 001 º
- - Counter spindle: max. Rotation speed 7000 rpm, travel 320 mm, max. Processed Ø (mm) 38, indexing 1º, full axis with 0. 001 º
- - Caliper for external turning, positions 5 (16×16)
- - Cross drilling / milling support, positions(drive) 4 (er16)
- - Caliper for face drilling in the main spindle, positions (non-drive+drive) 4 (er16)+0
- - Revolver head (pos. ) 10 (×20×20)
- - Max. Drilling diameter on the cross drilling / milling support (mm) 10
- - Max. Diameter of the thread to be cut by the tap on the cross drilling / milling support m6
- - Revolver head high speed x2 / y2 / z2 (m / min) 24 / 8 / 32
- - Coolant tank (l) 270

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
