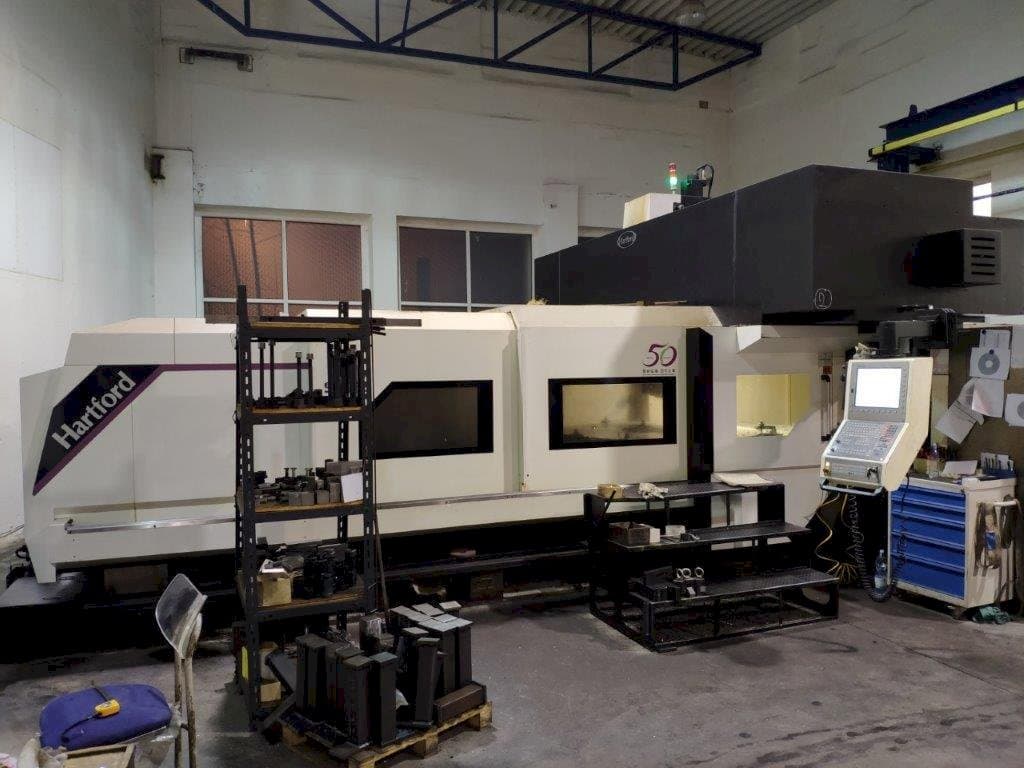

Hartford SW-426 Milling Machine

Show in original language

This Hartford SW-426 Milling Machine was built in 2015 and has been working for 16900 hours, from which 5252 are spindle hours. It is equipped with a HEIDENHAIN TNC 530 Control unit. This machine can work with a spindle speed of 6000 rpm. It includes an angle head HR-S90L, with 5 degrees indexation, hydraulic clamping, and 2000 rpm.

Overview

brand: HARTFORD
year: 2015
MODEL: SW-426
production hours: 5252
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HARTFORD SW-426

General Data

Measurements width: 12400 mm
Measurements depth: 6630 mm
Measurements height: 35000 kg MM

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 30 kW
Distance between bars: 2700 mm

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 2600 mm
Z-AXIS Movement: 780 mm

Workpiece

Workpiece weight: 13500 kg

Table

Outer length: 4000 mm
Outer width: 2500 mm
Number of tslots: 16
Distance between: 250 mm

Tools

Max weight: 15 kg
Max tool diameter: 125 mm
Max tool length: 350 mm
Type of tool holder: 32

Media

Power consumption: 60 kVA

Additional Equipment

- Angle head HR-S90L, 5 degrees indexation, hydraulic clamping, 2000 rpm
- 1x Renishaw RMP 60 workpiece probe
- 1x Renishaw RTS tool probe

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose - table distance 160-940 mm
- - Cutting feedrate 5. 000 mm/min
- - Rapid feedrates x,y: 10. 000 mm/min; z: 12. 000 mm/min
- - Revolving arm for head change
Qualitative Machine Benefits:
- - Complete machine covering
- - Air gun, handwheel hr 410
- - 15'' lcd display

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
