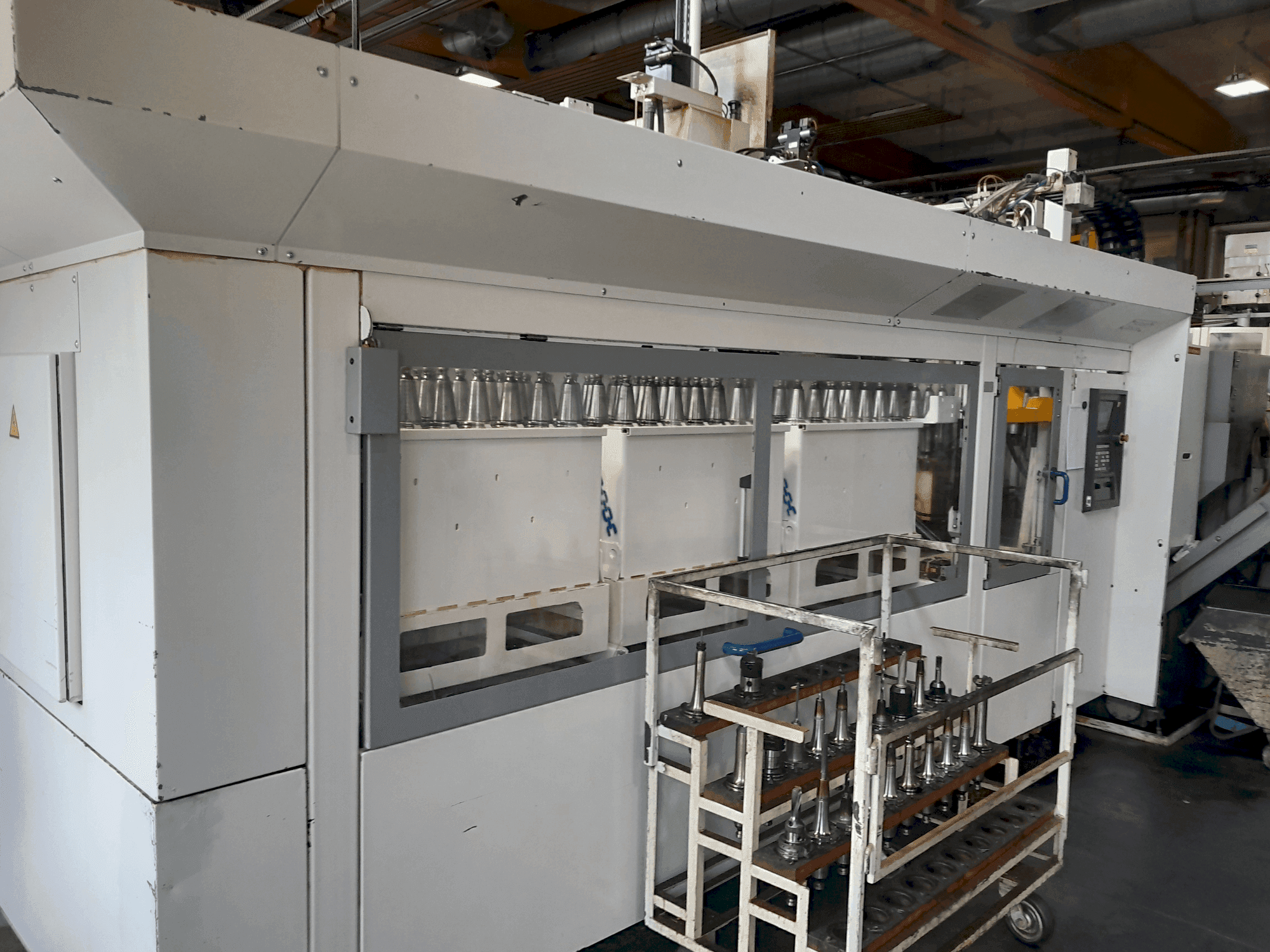

HELLER MCS-H 250

Photo Gallery

HELLER - MCS-H 250DE-MIL-HEL-1997-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HELLER MCS-H 250 For Sale | gindumac.com

Show in original language

This 4-axis HELLER MCS-H 250 was manufactured in 1997. A robust horizontal machining centre, it offers reliable performance for diverse machining needs. Ideal for those seeking advanced machining capabilities. Contact us for more information about this machine.

Overview

brand: HELLER
year: 1997
MODEL: MCS-H 250
production hours: 63800
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre

Technical Information - HELLER MCS-H 250

General Data

Machine weight: 20500 kg

Additional Equipment

- Rotary Indexing Table: Part Accuracy: ±3 arc seconds / Max. Clamping Weight: 800 daN (center) / Max. Tangential Torque: 20000 Nm (locked) / Max. Tilting Torque: 18000 Nm (locked)
- Rotary Indexing Table: Part Accuracy: ±3 arc seconds / Max. Clamping Weight: 800 daN (center) / Max. Tangential Torque: 20000 Nm (locked) / Max. Tilting Torque: 18000 Nm (locked)
- Main Spindle: Speed Range: 45-6000 rpm (infinitely variable) / Drive Power: 36 kW (from 500 rpm, 40 % ED) / Max. Torque: 688 Nm (40 % ED) / Feed Speed: Up to 24000 mm/min / Feed Forces: X/Y-axis 15000 N, Z-axis 20000 N

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Power supply: 400 v, 50 hz/noise level: 73. 8 db(a)
- - Working range: x-axis (longitudinal stroke): 800 mm /y-axis (vertical stroke): 800 mm /z-axis (transverse stroke): 970 mm
- - Rotary indexing table: part accuracy: ±3 arc seconds / max. Clamping weight: 800 dan (center) / max. Tangential torque: 20000 nm (locked) / max. Tilting torque: 18000 nm (locked)
- - Measuring system: direct measurement in x-y-z-axis / position tolerance: 0. 010 mm / resolution: 0. 2 µm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
