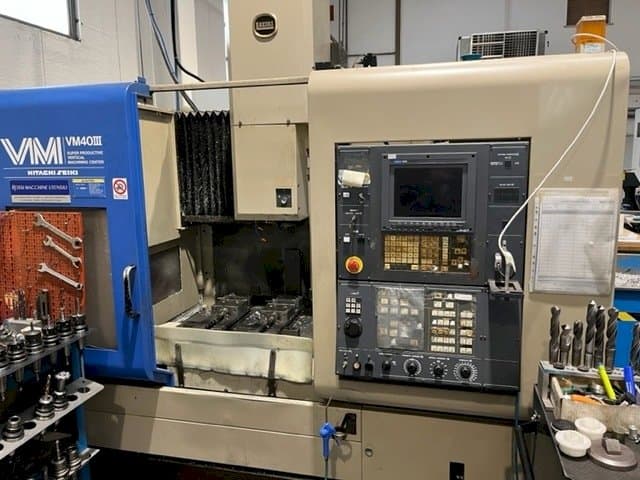

Front view of HITACHI SEIKI VM40 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HITACHI SEIKI VM40

Photo Gallery

HITACHI SEIKI - VM40IT-MIL-HIT-1997-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HITACHI SEIKI VM40 Milling machine

Show in original language

This HITACHI SEIKI VM40 Milling machine was manufactured in the year 1997. The machine has a spindle speed of 120-12000 rpm.

Overview

brand: HITACHI SEIKI
year: 1997
MODEL: VM40
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - HITACHI SEIKI VM40

General Data

Measurements width: 2100 mm
Measurements depth: 2260 mm
Measurements height: 2570 mm
Machine weight: 5100 kg

Main drive

Spindle speed range: 120-12000 1/MIN

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 450 mm

Table

Outer length: 760 mm
Outer width: 400 mm
TSlots size: 2
Min distance between vertical spindle and table: 80 - 530 mm
Table load: 250 kg

Tools

Slots in storage: 20
Max weight: 10 kg
Max tool diameter: 95 mm
Max tool length: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool shank: jis 40. T
- - Direct tapping function
- - Wide range motor 1:16
- - Atc, 20 tool
- - Spiral chip conveyor 2 pcs.
- - Coolant tank
- - Flood coolant
- - Splash cover
- - Operator side door interlock
- - Atc door interlock
Qualitative Machine Benefits:
- - Manual pulse generator
- - Sp. Speed load meter (on screen)
- - Spindle / feedrate override
- - Call light
- - Electric leakage detection breaker
- - Automatic power cut-off device
- - W-setter/easy setter
- - Automatic override memory for spindle and feed
- - Leveling pads
- - Work light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
