Hurco VMX 50/50T

Photo Gallery

Hurco - VMX 50/50TIE-MIL-HUR-2002-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

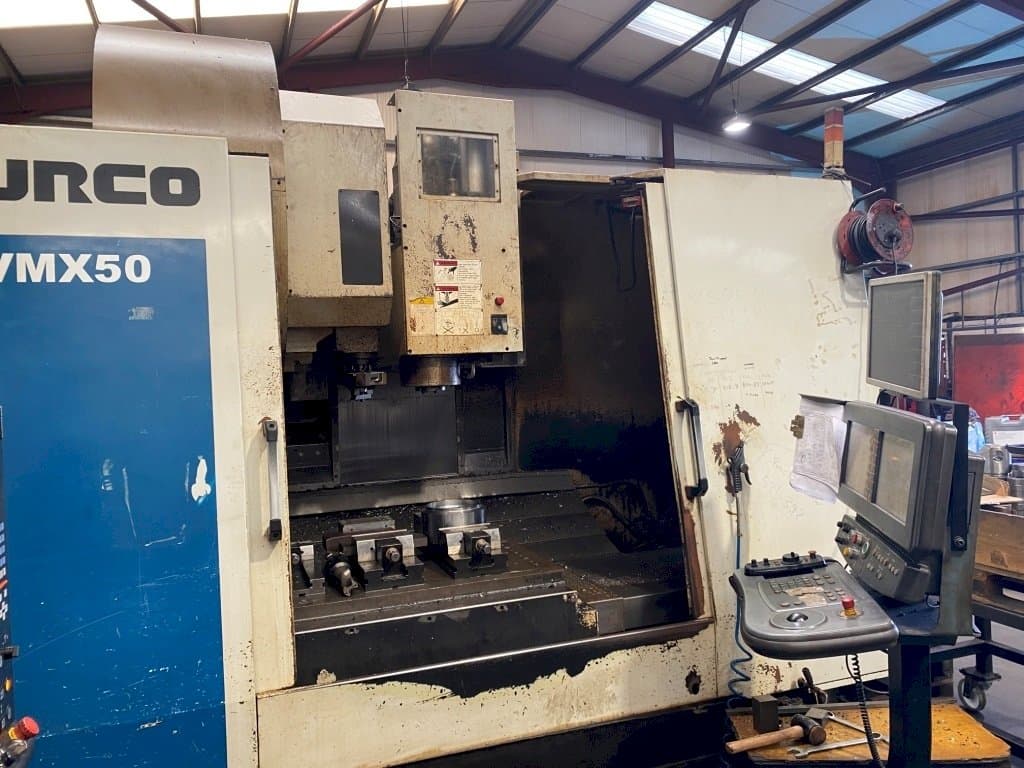

HURCO VMX 50/50T Milling

Show in original language

This HURCO VMX 50/50T Vertical Machining center was manufactured in 2002 in Taiwan. It operates through a Hurco Control Unit. The machine has a spindle speed up to 8000 rpm. It is a large capacity machine including rigid tapping.

Overview

brand: Hurco
year: 2002
MODEL: VMX 50/50T
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco VMX 50/50T

General Data

Measurements width: 4875 mm
Measurements depth: 4580 mm
Measurements height: 3000 mm
Machine weight: 9150 kg

Control Unit

CNC language customizable: Yes
Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 610 mm

Table

Outer length: 1500 mm
Outer width: 660 mm

Tools

Slots in storage: 30
Max weight: 15 kg
Max tool diameter: 220 mm
Max tool length: 300 mm
Type of tool holder: ISO 50

Media

Main electronic connection: 400 V
Power consumption: 40 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- TG 200mm Centre Height Pneumatic Indexer with Tailstock
- 20 Bar Through Spindle Coolant

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Large capacity machine
- - 30 tool atc
- - 20 bar hpc
- - Air blast
- - Rigid tapping

Extra information

- Machine control screens are not working. New screens are needed for this machine. Currently operated using an external screen which works well.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
