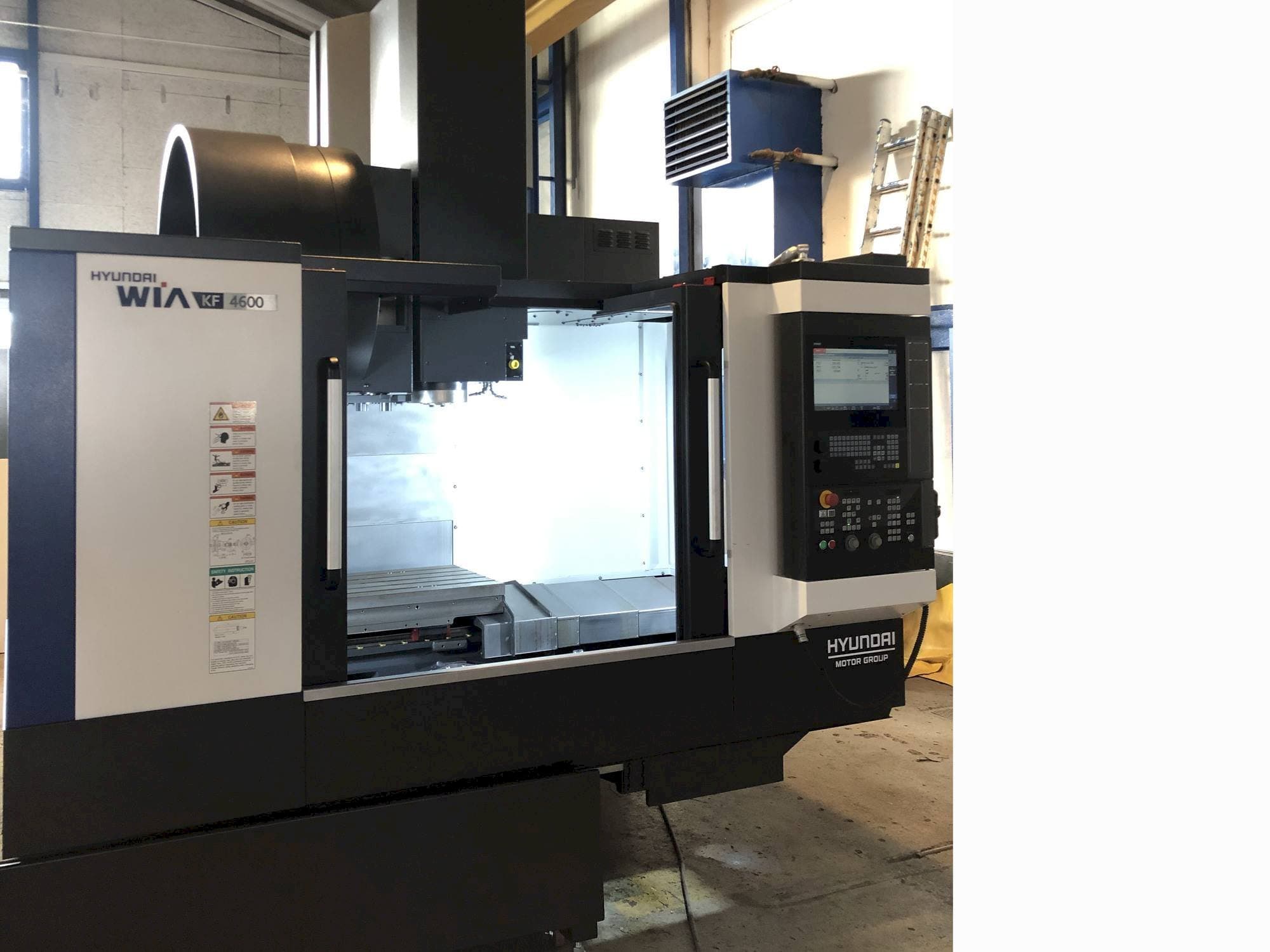

Front view of Hyundai Wia KF4600 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Hyundai Wia KF4600

Photo Gallery

Hyundai Wia - KF4600AT-MIL-HYU-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hyundai Wia KF4600 - Vertical Machining Center

Show in original language

This Hyundai Wia KF4600 Vertical Machining Center was built in Korea in the year 2018. It is equipped with a SIEMENS Sinumerik 828D control unit. This 3 axis machine can works with a spindle speed up to 12000 rpm.

Overview

brand: Hyundai Wia
year: 2018
MODEL: KF4600
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Hyundai Wia KF4600

General Data

Measurements width: 2805 mm
Measurements depth: 2180 mm
Measurements height: 3026 mm
Machine weight: 6000 kg

Control Unit

Model: Sinumerik 828D
Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 18,5/11 kW
Tool taper: BBT40
Number of axis: 3

Movement

X-AXIS Movement: 900 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 460 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 520 mm
Z-AXIS Rapid traverse: 36 m/min

Workpiece

Workpiece weight: 8 kg

Table

Outer length: 1050 mm
Outer width: 460 mm
Table load: 600 kg

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits

Number of tools in magazine 30 pieces
Max workpiece diameter 80 mm
Max tool length 300 mm
Tool change time (tool to tool) 1. 4 sec.
Tool change time (chip to chip) 3. 2
20 bar internal coolant pressure

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
