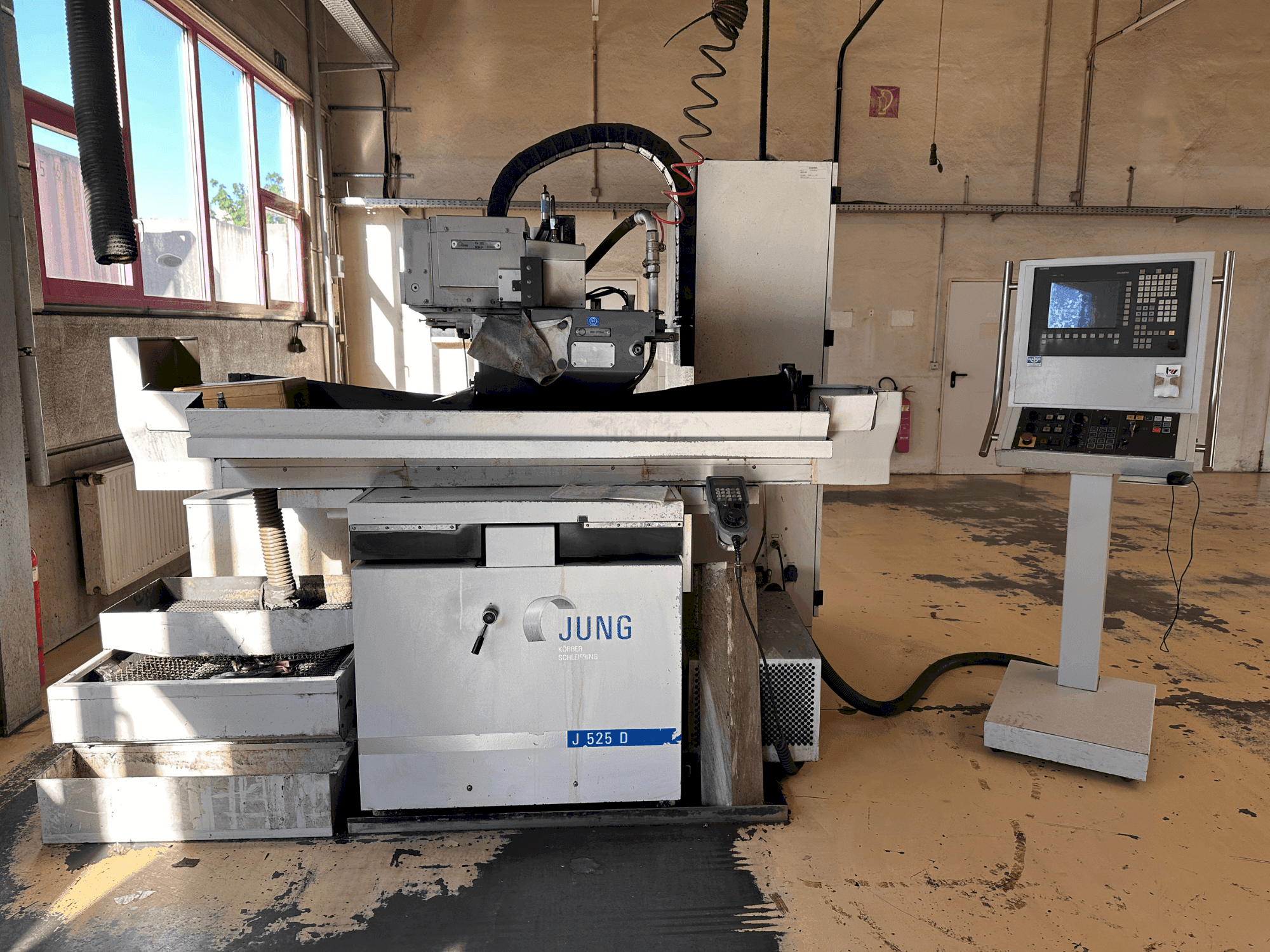

JUNG - J 525-DDE-GRI-JUN-2007-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Dimensions of machine (lxwxh): 3000 x 2700 x 2440 mm /weight (kg): 1600
  • - X-axis (longitudinal table movement): travel speed for reciprocating grinding, hydraulic, continuously adjustable: 1000 - 24000 mm/min / travel speed for creep feed grinding with ac servo motor: 5 - 5000 mm/min/ travel path between the limit switches: 660 mm usable oscillating stroke: 630 mm input resolution: 0. 0001 mm / y-axis (vertical movement): travel speed: 0. 1 - 2000 mm/min / travel path between the limit switches: 385 mm / maximum distance between table and spindle center: 490 mm / input resolution: 0. 0001 mm/ z-axis (horizontal movement): travel speed: 0. 1 - 2000 mm/min / travel path between the limit switches: 225 mm / input resolution: 0. 0001 mm
  • - Table clamping area: 600 x 200 mm / grindable workpiece surface including wheel width: 600 x 250 mm / permissible load including magnetic plate: 100 kg
  • - Speed range: 800 - 4200 min / drive power: maximum 5 kw / cutting speed: 35 m/s
  • - Voltage: 400 v ac -5% to +10% / frequency: 50 hz / control voltage: 230 v ac / 24 v dc / connected load: 13 kva / fuse protection: 25 a / fuse protection with pa37k: 35 a
  • - Control cabinet weight: 600 kg / weight pa37k (option): 120 kg
