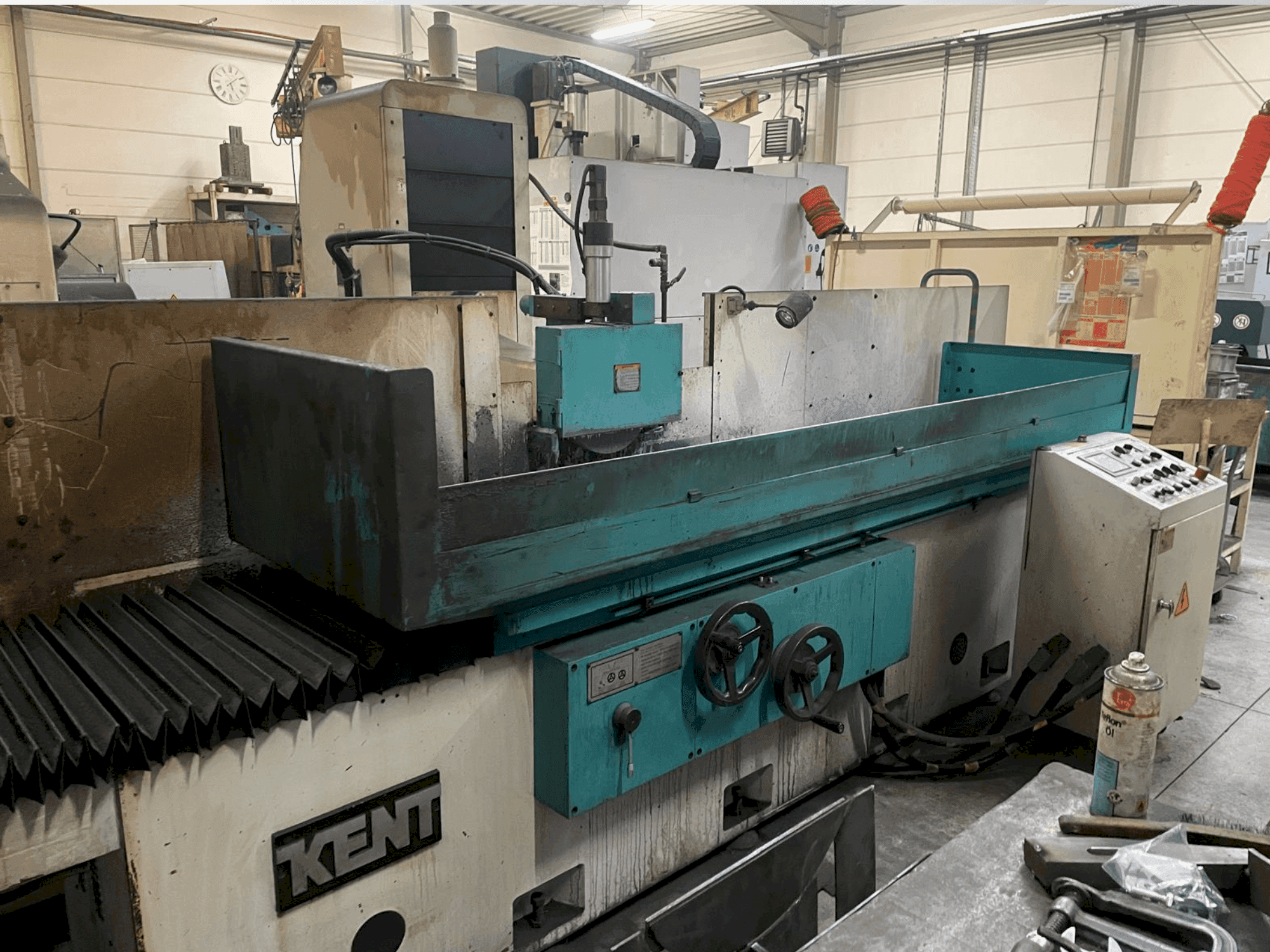

This Kent KGS 615 WMA1 surface grinding machine was manufactured in 2008. It features a robust table clamping area of 1500 x 600 mm, supporting a maximum load of 1300 kg. The machine is equipped with a powerful grinding spindle motor of 7.5 kW and a standard grinding wheel size of 355 x 50.8 x 127 mm. Consider the opportunity to buy this Kent KGS 615 WMA1 surface grinding machine. Contact us for more information about this machine.
Overview
- brand: Kent
- year: 2008
- MODEL: KGS 615 WMA1
- application type: Grinding
- Location: Germany
- machine type: Surface Grinding Machine
Technical Information - Kent KGS 615 WMA1
General Data
- Measurements width: 2700mm
- Measurements depth: 6200mm
- Measurements height: 2470mm
- Machine weight: 8500 kg
Additional Information
- Technical Machine Benefits:
- - Table clamping area: 1500 x 600 mm / max. Table load (with magnet): 1300 kg longitudinal table travel: 1600 mm / table slots, number/width: 3/16 pcs/mm / table feed: 7-25 m/min
- - Vertical y distance from table to spindle center: 600 mm / vertical handwheel pitch: 0. 002 mm / feed per handwheel revolution: 0. 5 mm / automatic grinding feed ahd: 0. 005-0. 04 mm / automatic grinding feed wm1: 0. 002-0. 2 mm / vertical rapid traverse: 230 mm/min / transverse z travel: 660 mm / transverse feed per stroke: 0. 1-12 mm / transverse rapid traverse: 1250 mm/min / handwheel pitch: 0. 02 mm / feed per handwheel revolution: 5 mm
- - Grinding spindle motor: 7. 5 kw / grinding spindle speed: 1450 rpm
- - Grinding spindle motor: 7. 5 kw / grinding spindle speed: 1450 rpm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
