- KIA KV 35C Vertical Machining center

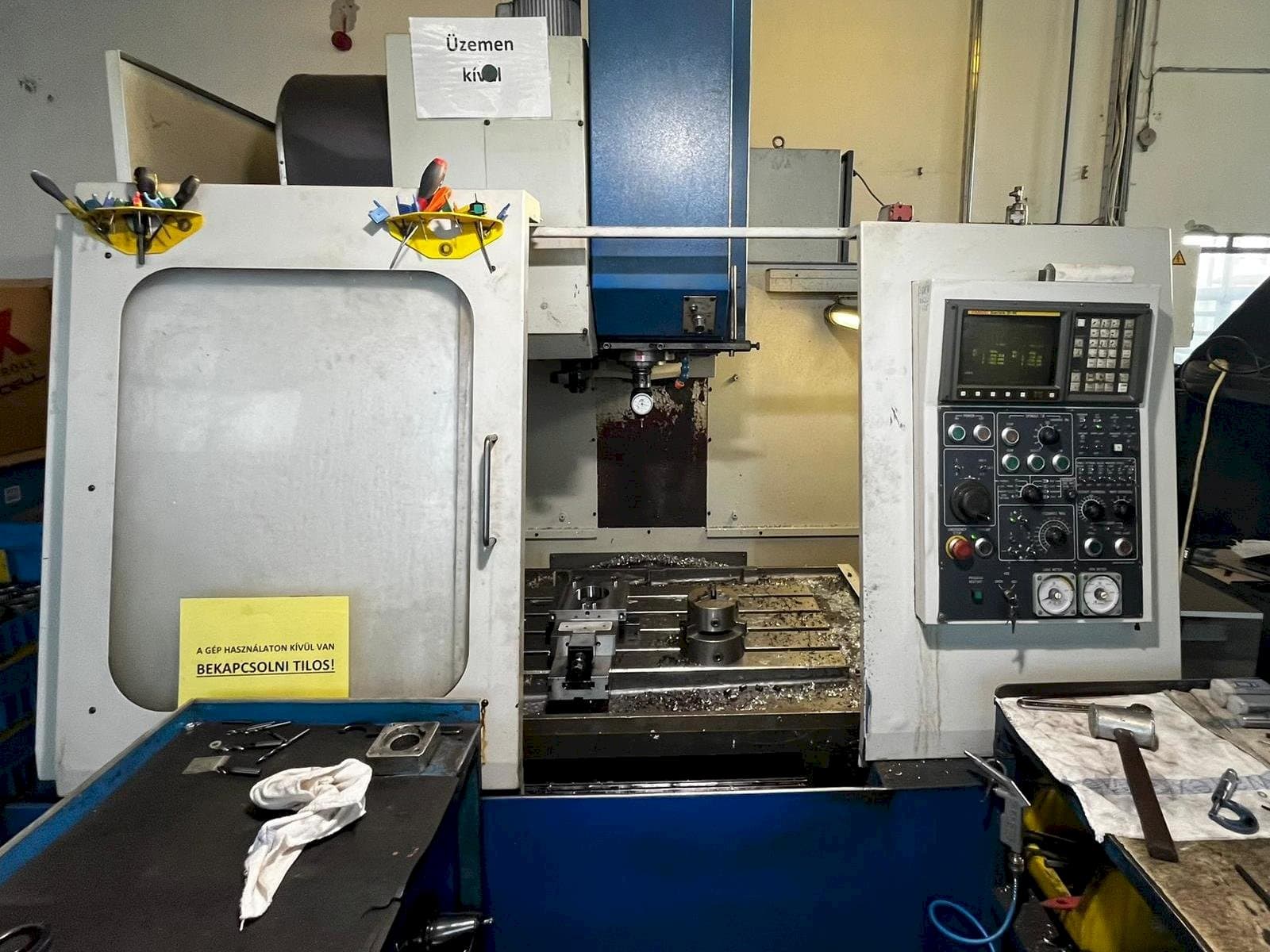

This KIA KV 35C Vertical Machining center was manufactured in the year 2006 in Japan. It is equipped with a Fanuc Series O-M control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.
Overview
- brand: Kia
- year: 2006
- MODEL: KV 35C
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: FANUC
Technical Information - Kia KV 35C
General Data
- Machine weight: 3900 kg
Control Unit
- Model: Series O-M
- Brand: FANUC
Main drive
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 5,5-7,5 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 450 mm
- Z-AXIS Movement: 510 mm
Table
- Outer length: 920 mm
- Outer width: 460 mm
- Table load: 300 kg
Tools
- Slots in storage: 20
- Max weight: 8 kg
- Max tool diameter: 80 mm
- Max tool length: 250 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
