KNUTH - DL E Heavy 500/1500CZ-TUR-KNU-2011-00001
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- KNUTH DL E Heavy 500/1500 Lathe

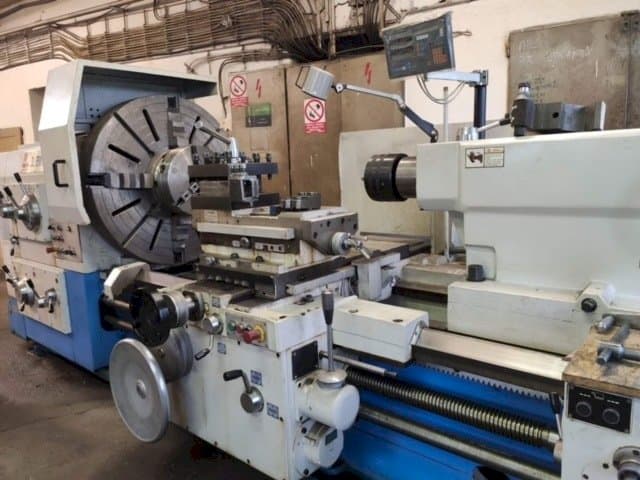

This KNUTH DL E Heavy 500/1500 Lathe was manufactured in the year 2011 in Germany. This 2 axis machine operates with a spindle speed range up to 315 rpm, max turning length 1500 mm, and a spindle bore 130 mm. It presents very good working conditions, low working hours.
Overview
- brand: KNUTH
- year: 2011
- MODEL: DL E Heavy 500/1500
- application type: Turning
- Location: Czech Republic
- machine type: Horizontal Turning Machine
Technical Information - KNUTH DL E Heavy 500/1500
General Data
- Measurements width: 4600 mm
- Measurements depth: 1850 mm
- Measurements height: 1790 mm
- Machine weight: 9350 kg
Main drive
- Number of spindles: 1
- Spindle speed range: 315 1/MIN
Movement
- X-AXIS Movement: 510 mm
- Y-AXIS Movement: 1300 mm
Workpiece
- Workpiece weight: 6000 kg
Additional Information
- Technical Machine Benefits:
- - Max. Turning Ø over bed 1000 mm
- - Max. Turning Ø over cross-slide 650 mm
- - Max. Turning length 1500 mm
- - Spindle bore 130 mm
- - Main motor power 25 kw
- - Spindle taper: iso a2-15
- - Tailstock stroke 300 mm
- - Tailstock quill diameter 160 mm, taper metric 80
- - Digital read-out
- Qualitative Machine Benefits:
- - Very good condition, low hours
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
