KNUTH HFS 2550 VC

Photo Gallery

KNUTH - HFS 2550 VCDE-GRI-KNU-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

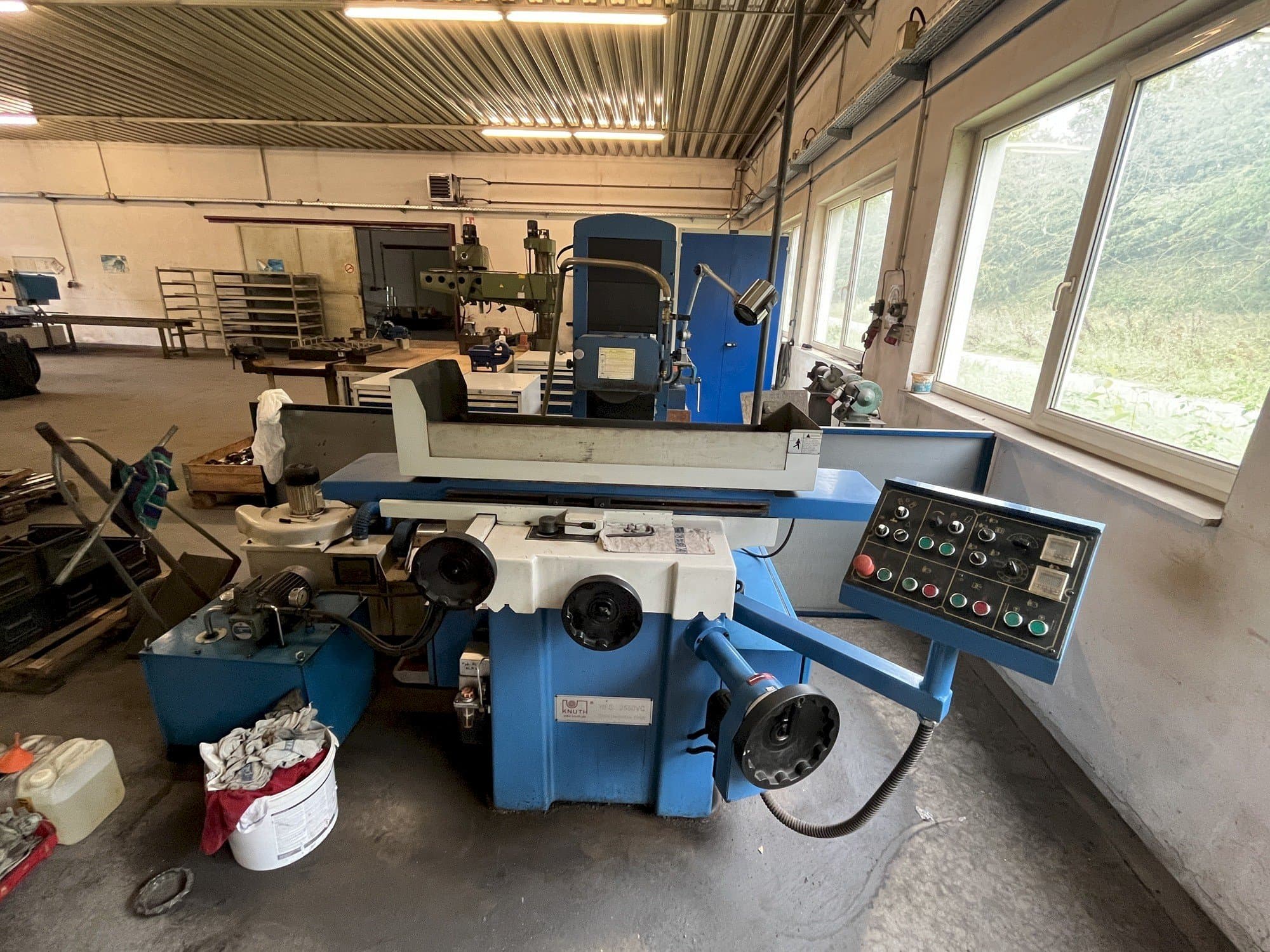

KNUTH HFS 2550 VC Grinding machine

Show in original language

This KNUTH HFS 2550 VC Grinding machine was manufactured in the year 2008 in Germany.

Overview

brand: KNUTH
year: 2008
MODEL: HFS 2550 VC
application type: Milling
Location: Germany
machine type: CNC Milling Machine

Technical Information - KNUTH HFS 2550 VC

General Data

Measurements width: 2650 mm
Measurements depth: 2150 mm
Measurements height: 1675 mm
Machine weight: 1800 kg

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 275 mm

Table

Outer length: 250 mm
Outer width: 500 mm
Table load: 180 kg

Additional Equipment

- Coolant tank, fan
- A device with a dressing diamond is included in the accessory box. Of course, the dressing is done on the machine

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Grinding wheels dimensions 200 x 20 x 31,75 mm
- - Spindle axis-to-table surface distance 450 mm
- - Scale ring division y-axis 0,02 mm
- - Scale ring division z-axis 0,005 mm
- - Autom. Transverse feed 0,1 - 8 mm
- - Autom. Vertical feed 0,005 - 0,05 mm
- - Hydr. Feed x: 7 - 23 m/min, rapid feed: y-axis: 990 mm/min, rapid feed z-axis: 460 mm/min, drive capacity, motor rating grinding spindle: 2,2 kw, motor rating servo drive: 0,5 kw
- - Coolant tank
- - Various accessories
Qualitative Machine Benefits:
- - The surface grinding machine has an automatic vertical infeed
- - The magnetic plate belongs to the machine furthermore the machine also has a magnetic coolant cleaning system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
