KOVOSVIT MAS - MCV 1270SK-MIL-KOV-2016-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
KOVOSVIT MAS MCV 1270 Milling Machine

Show in original language

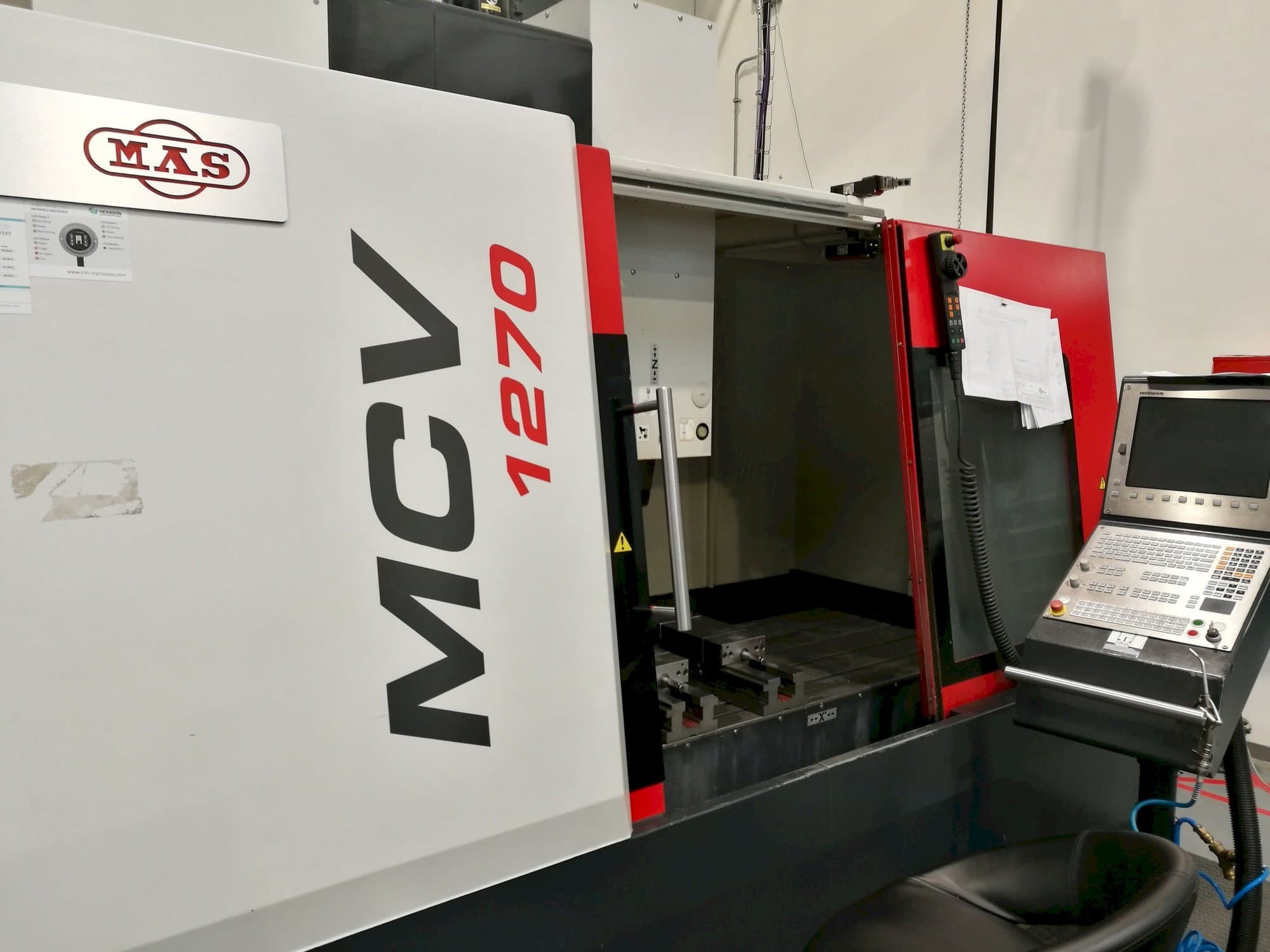

This KOVOSVIT MAS MCV 1270 Milling Machine was manufactured in 2016 in the Czech Republic. It has a working record of only 5840 (1506 spindle) production hours. It is equipped with a HIEDENHAIN iTNC 530 HSCI control unit. This machine can work with a spindle speed range up to 8000 rpm, and incorporates a working table of 1500x670 mm. It includes a workpiece probe, and a tool probe. This KOVOSVIT MAS is like new.

Overview

brand: KOVOSVIT MAS
year: 2016
MODEL: MCV 1270
production hours: 5840
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1270

General Data

Measurements width: 5000 mm
Measurements depth: 3600 mm
Measurements height: 3330 mm
Machine weight: 11800 kg

Control Unit

Model: iTNC 530 HSCI
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 720 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer length: 1500 mm
Outer width: 670 mm
TSlots size: 5
Distance between: 125 mm

Tools

Slots in storage: 40
Max weight: 15 kg
Max tool diameter: 125/175 mm
Max tool length: 400 mm
Type of tool holder: ISO 50

Additional Equipment

- Workpiece probe
- Tool probe

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle power (s1/s6 - 40%) 28 / 43 kw
- - Spindle torque (s1/s6 - 40%) 406 / 623 nm
- - Work feed x, y, z 40000 mm. Min-1
- - Rapid feed x, y, z 40 m. Min-1
- - Thermal compensation
- - Handwheel
- - Automatic lubrication of moving parts
- - Direct measuring system
- - Cooling aggregate for external cooling
Qualitative Machine Benefits:
- - Machine like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
