KOVOSVIT MAS SP 180 SY Lathe

Show in original language

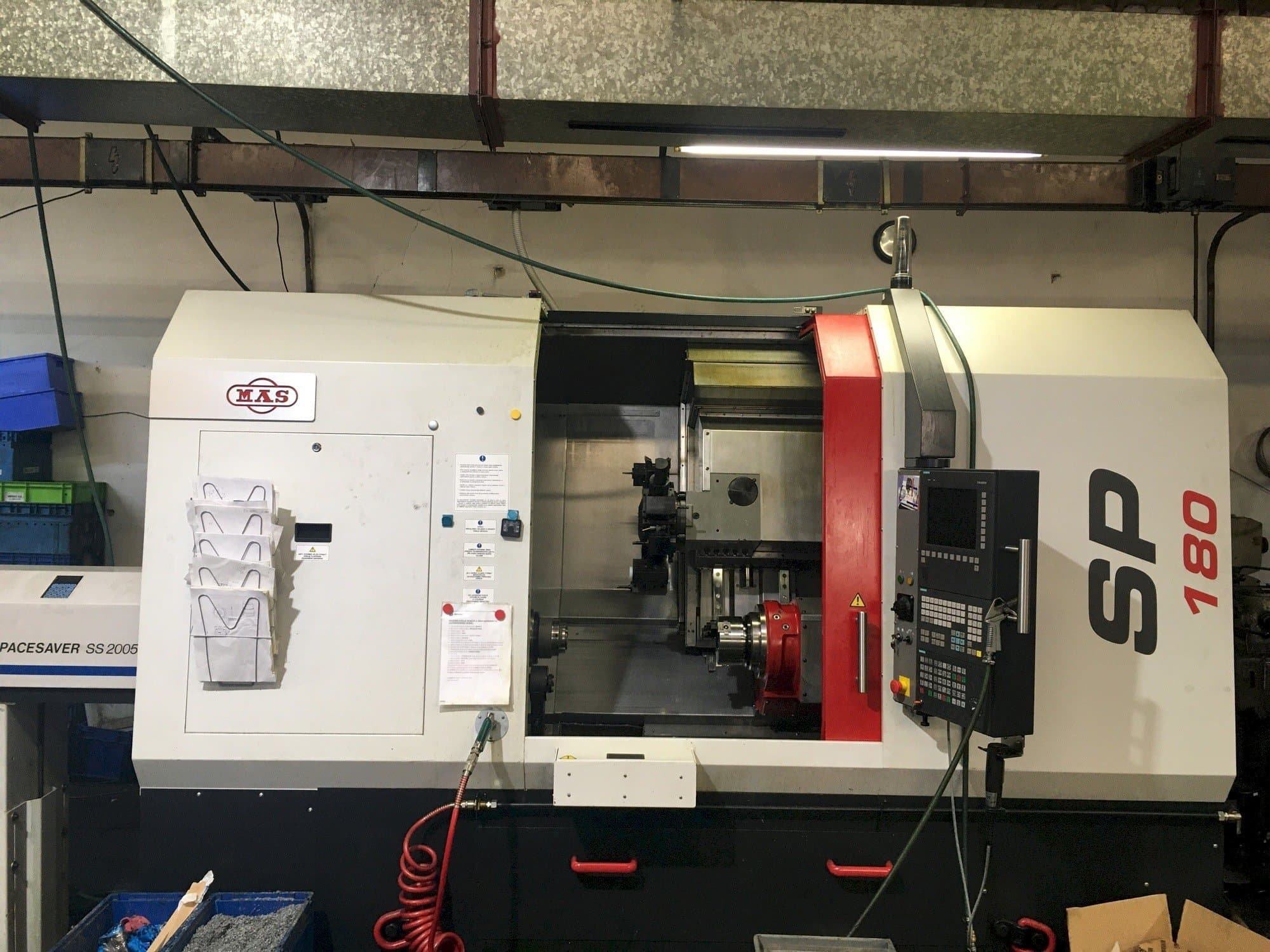

This KOVOSVIT MAS SP 180 SY Lathe was built in 2017 in Czech Republic and has been working for only 1050 hours. Equipped with a SIEMENS 840 D Control unit, this machine operates with 2 spindles with a speed up to 6000 rpm. This machine presents perfectly good conditions, as it has very low working hours.

Overview

brand: KOVOSVIT MAS
year: 2017
MODEL: SP 180 SY
production hours: 1050
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - KOVOSVIT MAS SP 180 SY

General Data

Measurements width: 3875 mm
Measurements depth: 2122 mm
Measurements height: 2345 mm
Machine weight: 7700 kg

Control Unit

Model: 840 D
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 113 mm
Y-AXIS Movement: +/- 45 MM
Z-AXIS Movement: 480 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Equipment

- Bar feeder Spacesaver SS2005 (1000 mm)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter 180 mm
- - Swing diameter over bed 530 mm
- - Max. Turning length 370 mm
- - Max. Bar capacity 43 mm
- - Spindle a5 (16. 8/22 kw/6000 rpm)
- - Subspindle a5 (7. 5/9 kw, 6000 rpm)
- - 2x c axis, y axis
- - Turret 12 positions (all driven, 6 kw power, 5000 rpm)
- - Manual rinsing, fixture blowing – the right headstock
- - Parts ejector & parts catcher
Qualitative Machine Benefits:
- - Very good condition, low hours
- - Under warranty until 30/6/2020

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
