LAGUN GBM 21

Photo Gallery

LAGUN - GBM 21DE-MIL-LAG-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
LAGUN GBM 21 Milling Machine

Show in original language

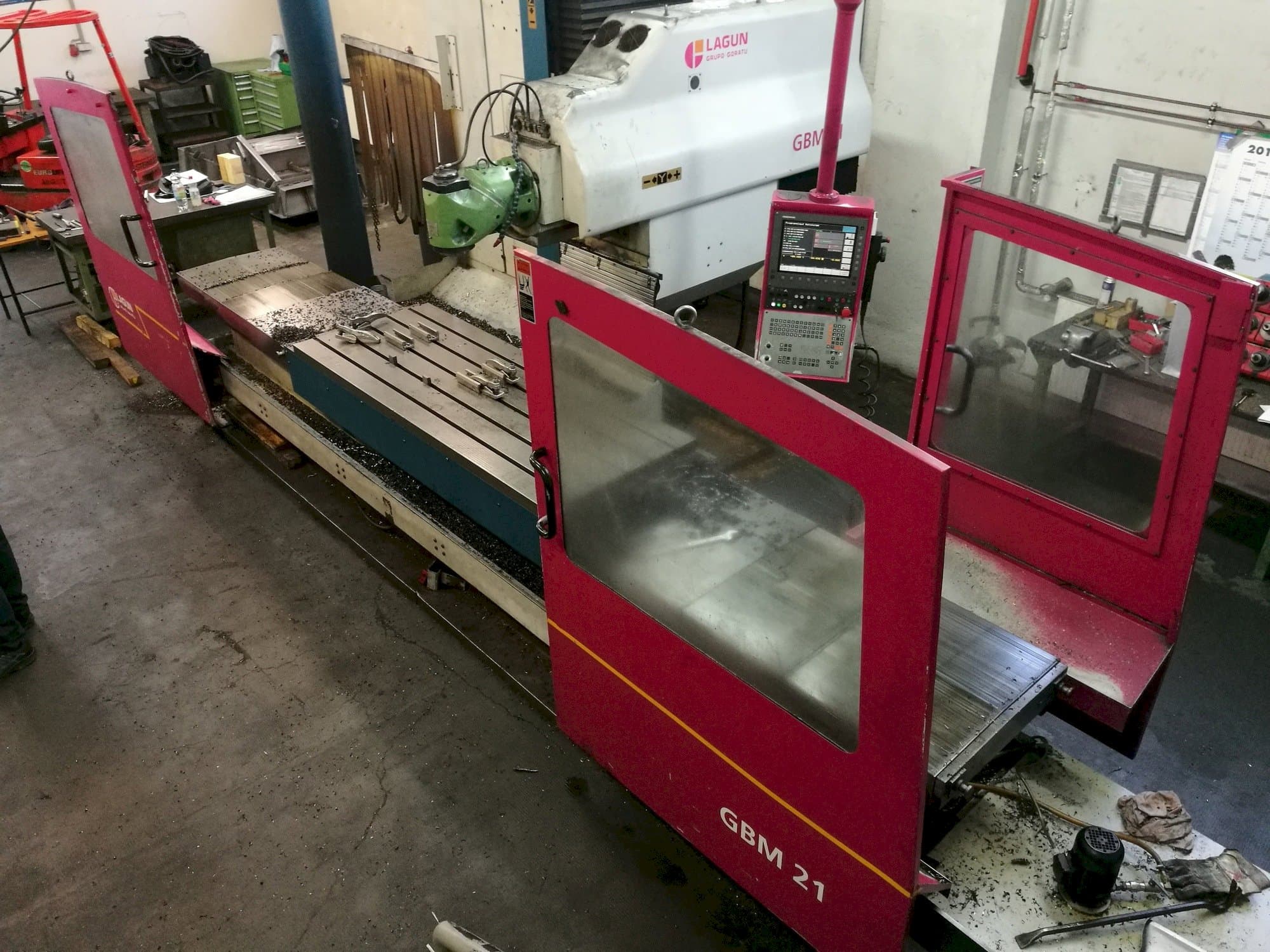

This LAGUN GBM 21 Milling Machine made in 2004 in Spain. It has a production history of 37517 working hours since then. It is operated through a Heidenhain ITNC 530 control unit. This machine counts with a spindle speed up to 3000 rpm. During the past, it has mainly worked for the automotive industry.

Overview

brand: LAGUN
year: 2004
MODEL: GBM 21
production hours: 37517
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - LAGUN GBM 21

General Data

Measurements width: 6434 mm
Measurements depth: 2804 mm
Measurements height: 3016 mm
Machine weight: 11200 kg

Control Unit

Model: ITNC 530
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Spindle speed range: 3000 rpm 1/MIN

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1200 mm

Table

Outer length: 2100 mm
Outer width: 800 mm
TSlots size: 5
Distance between: 140 mm

Tools

Slots in storage: 20
Max weight: 15 kg
Max tool diameter: 200 mm
Max tool length: 300 mm
Type of tool holder: BT50

Media

Main electronic connection: 400 V
Power consumption: 35 kW
Internal cooling: Yes

Additional Equipment

- 30 x tool holders

Additional Information

Machine history

End product: Prototype
Industries: Automotive

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
