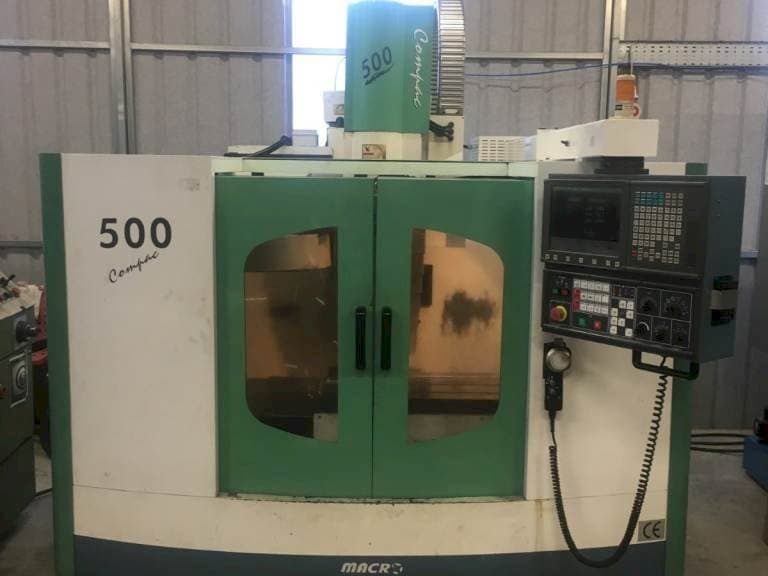

Front view of Macro Micro Tech Compac 500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Macro Micro Tech Compac 500

Photo Gallery

Macro Micro Tech - Compac 500IE-MIL-MAC-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Macro Micro Tech Compac 500 Vertical Machining Center

Show in original language

This Macro Micro Tech Compac 500 Vertical Machining Center was built in Taiwan in the year 2003. It is equipped with a Fanuc Milling 2000 Series control unit. This machine can operate with a spindle speed up to 8000 rpm.

Overview

brand: Macro Micro Tech
year: 2003
MODEL: Compac 500
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Macro Micro Tech Compac 500

General Data

Measurements width: 2200 mm
Measurements depth: 2600 mm
Measurements height: 2150 mm
Machine weight: 4200 kg

Control Unit

Model: Milling 2000 Series
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 510 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 460 mm

Workpiece

Workpiece weight: 350 kg

Table

Outer length: 780 mm
Outer width: 430 mm

Tools

Slots in storage: 16
Max weight: 6 kg
Max tool diameter: 80 mm
Max tool length: 250 mm
Type of tool holder: BT40

Additional Information

Machine history

Material type: Steel
End product: Components

Machine Benefits

Technical Machine Benefits:
- - Compact machine
- - New z axis drive fitted
Qualitative Machine Benefits:
- - Well maintained
- - Rarely used by current owner

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
