Makino - V33i GraphiteNL-MIL-MAK-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

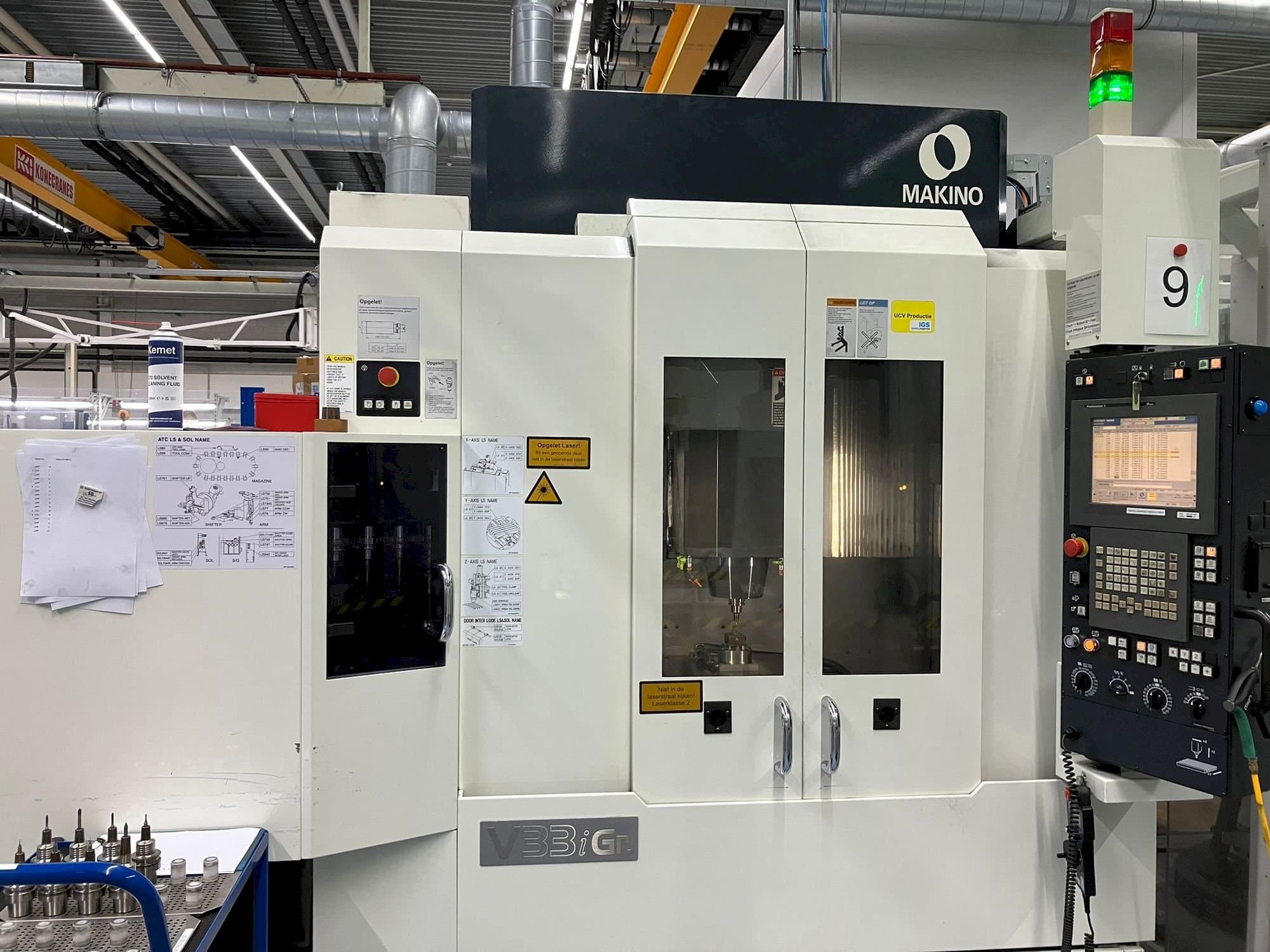

Makino V33i Graphite Vertical Machining Center

Show in original language

This Makino V33i Graphite Vertical Machining Center was made in the year 2014 in Germany. It is equipped with a Professional 6 control unit and has 3 axis. The machine has a spindle speed of 20000 rpm.

Overview

brand: Makino
year: 2014
MODEL: V33i Graphite
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAKINO

Technical Information - Makino V33i Graphite

Control Unit

Model: Professional 6
Brand: MAKINO

Main drive

Spindle speed range: 20000 1/MIN
Tool taper: CAT40 (HSK-A63, HSK-F63 & HSK-E32)
Number of axis: 3

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 350 mm

Table

Outer length: 750 mm
Outer width: 450 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse 20,000 mm/min
- - Cutting feedrate 10,000 mm/min
- - Maximum workpiece 750 x 635 x 250 mm
- - Maximum payload 300 kg
- - Atc capacity 25 (40, 60)
- - Tool to tool 4. 8 secs
- - Maximum tool diameter 80 mm
- - Maximum tool weight 7 kg
- - Optional atc capacity: yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
