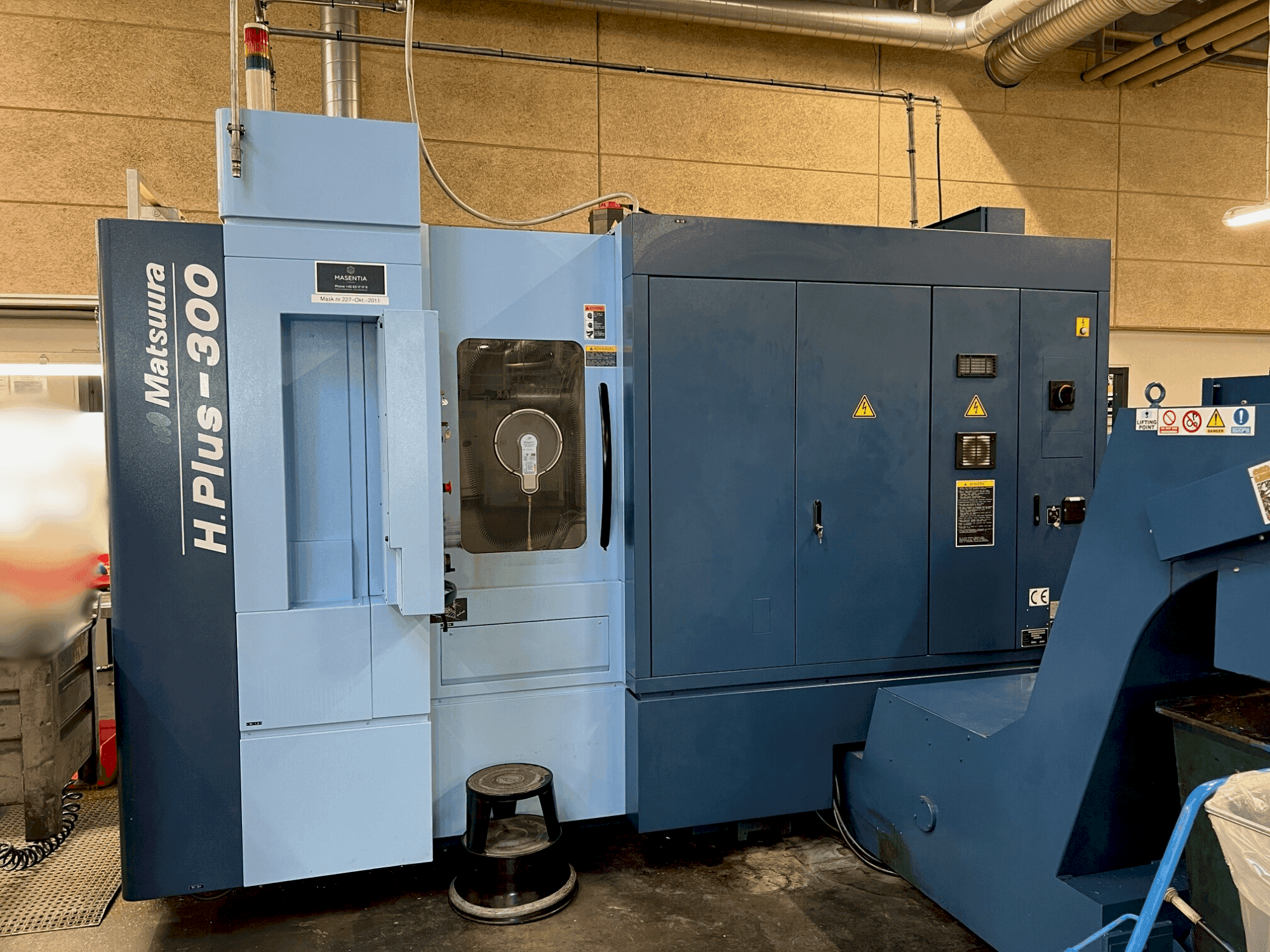

Front view of Matsuura H.PLUS-300 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Matsuura H.PLUS-300

Photo Gallery

Matsuura - H.PLUS-300DK-MIL-MAT-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Matsuura H.PLUS-300 For Sale | gindumac.com

Show in original language

This 4-axis Matsuura H.PLUS-300 horizontal machining center was manufactured in 2011. It features a high-speed spindle capable of 15,000 rpm, a robust 51-tool automatic tool changer, and a dual pallet system for efficient workflow. The machine supports a maximum workpiece weight of 250 kg and offers rapid traverse rates up to 60,000 mm/min. Ideal for precision machining, buy this Matsuura H.PLUS-300 horizontal machining center. Contact us for further details regarding this horizontal machining center.

Overview

brand: Matsuura
year: 2011
MODEL: H.PLUS-300
application type: Milling
Location: Denmark
machine type: Horizontal Machining Centre
control unit brand: MATSUURA

Technical Information - Matsuura H.PLUS-300

General Data

Measurements width: 5952 MM
Measurements depth: 3341 MM
Measurements height: 2591 MM
Machine weight: 5700 KG

Control Unit

Model: G-Tech 18i
Brand: MATSUURA

Main drive

Spindle speed range: 50 - 15,000 1/MIN
Spindle motor power: 7.5/15 kW (constant/40%)
Tool taper: BT 40 Big Plus

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 300 mm
Outer width: 300 mm
Table load: 250 kg

Additional Information

Additional equipment

Linear guides
Ultra-precision ball screws for feed movements
Chip flow system
Coolant unit
Synchronized tapping
Hydraulic unit
Spindle oil cooler
Machine mounts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
