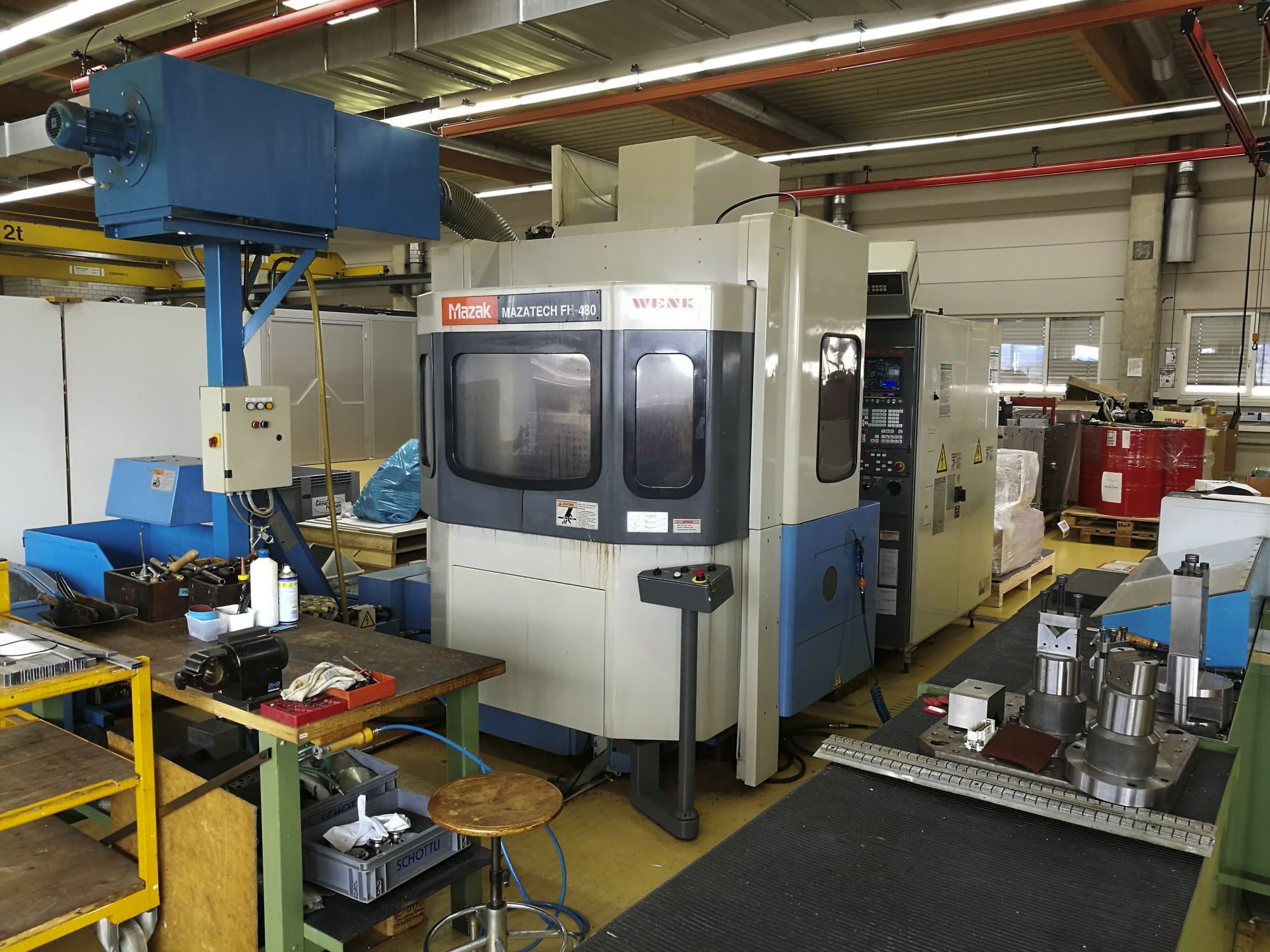

Mazak FH-480 Machining Center

Show in original language

This Mazak FH-480 Machining Center from 1998 is an ideal machine for single-piece production. Operated through a Mazatrol M Plus Control Unit, the equipment stands out for its good condition and includes a 2x palette changer as well as a fire fighting system.

Overview

brand: Mazak
year: 1998
MODEL: FH-480
application type: Milling
Location: Switzerland
machine type: Horizontal Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak FH-480

General Data

Measurements width: 3090 mm
Measurements depth: 3837 mm
Measurements height: 2609 mm
Machine weight: 9260 kg

Control Unit

Brand: MAZATROL
Model: M Plus

Main drive

Number of spindles: 1
Spindle speed range: 35-12000 1/min
Spindle motor power: 11 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 560 mm
X-AXIS Working Feed: 1-32000 mm/min
X-AXIS Rapid traverse: 32000 mm/min
Y-AXIS Movement: 560 mm
Y-AXIS Working Feed: 1-32000 mm/min
Y-AXIS Rapid traverse: 32000 mm/min
Z-AXIS Movement: 510 mm
Z-AXIS Working Feed: 1-32000 mm/min
Z-AXIS Rapid traverse: 32000 mm/min
A-AXIS Movement: 360° MM

Workpiece

Workpiece drm: 610 mm
Workpiece z: 670 mm
Workpiece weight: 400 kg

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 30
Max weight: 12 kg
Max tool diameter: 95/150mm
Max tool length: 320 MM

Media

Main electronic connection: 480V / 50Hz
Power consumption: 56 kVA
Air pressure: 6 bar
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 2x Palette changing system
- Firefighting system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
