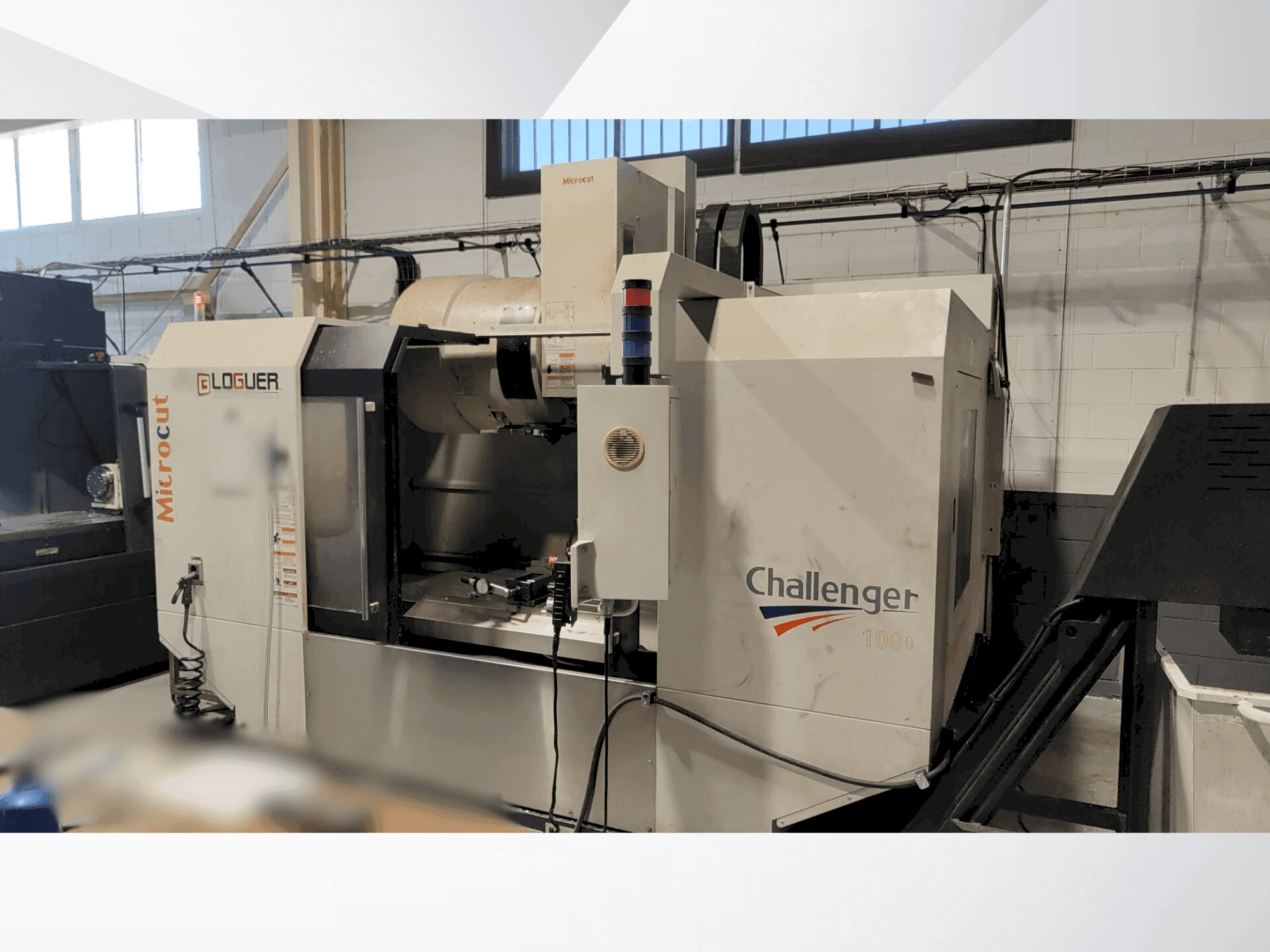

Front view of MICROCUT Challenger VM 1000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MICROCUT Challenger VM 1000

Photo Gallery

MICROCUT - Challenger VM 1000ES-MIL-MIC-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MICROCUT Challenger VM 1000 For Sale | gindumac.com

Show in original language

This 3-axis MICROCUT Challenger VM 1000 vertical machining centre was manufactured in 2013. It features a Fagor 8055 control unit, a table size of 1300 x 600 mm, and a maximum table load of 800 kg. The spindle operates at 10,000 rpm with an ISO40 taper. If you are looking to get high-quality milling capabilities, consider the MICROCUT Challenger VM 1000 machine we have for sale. Contact us for more information.

Overview

brand: MICROCUT
year: 2013
MODEL: Challenger VM 1000
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: FAGOR

Technical Information - MICROCUT Challenger VM 1000

General Data

Measurements width: 2950 MM
Measurements depth: 4200 MM
Measurements height: 2770 MM
Machine weight: 5500 KG

Control Unit

Brand: FAGOR
Model: 8055

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 11 / 15 kW
Tool taper: ISO40

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 600 mm

Table

Min distance between vertical spindle and table: 100 mm
Max distance between vertical spindle and table: 700 mm

Tools

Slots in storage: 24

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle transmission: belt drive
- - Tool selection: arm
- - Positioning accuracy: ±0. 005 / 300 mm
- - Repeatability: 0. 005 mm
- - Floor space: 5250 x 3300 mm
- - Spindle center to z axis way cover: 623 mm
- - T-slot (w/pitch/no): 18 x 100 x 5 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
