Mikron WF-71 D Machining Center

Show in original language

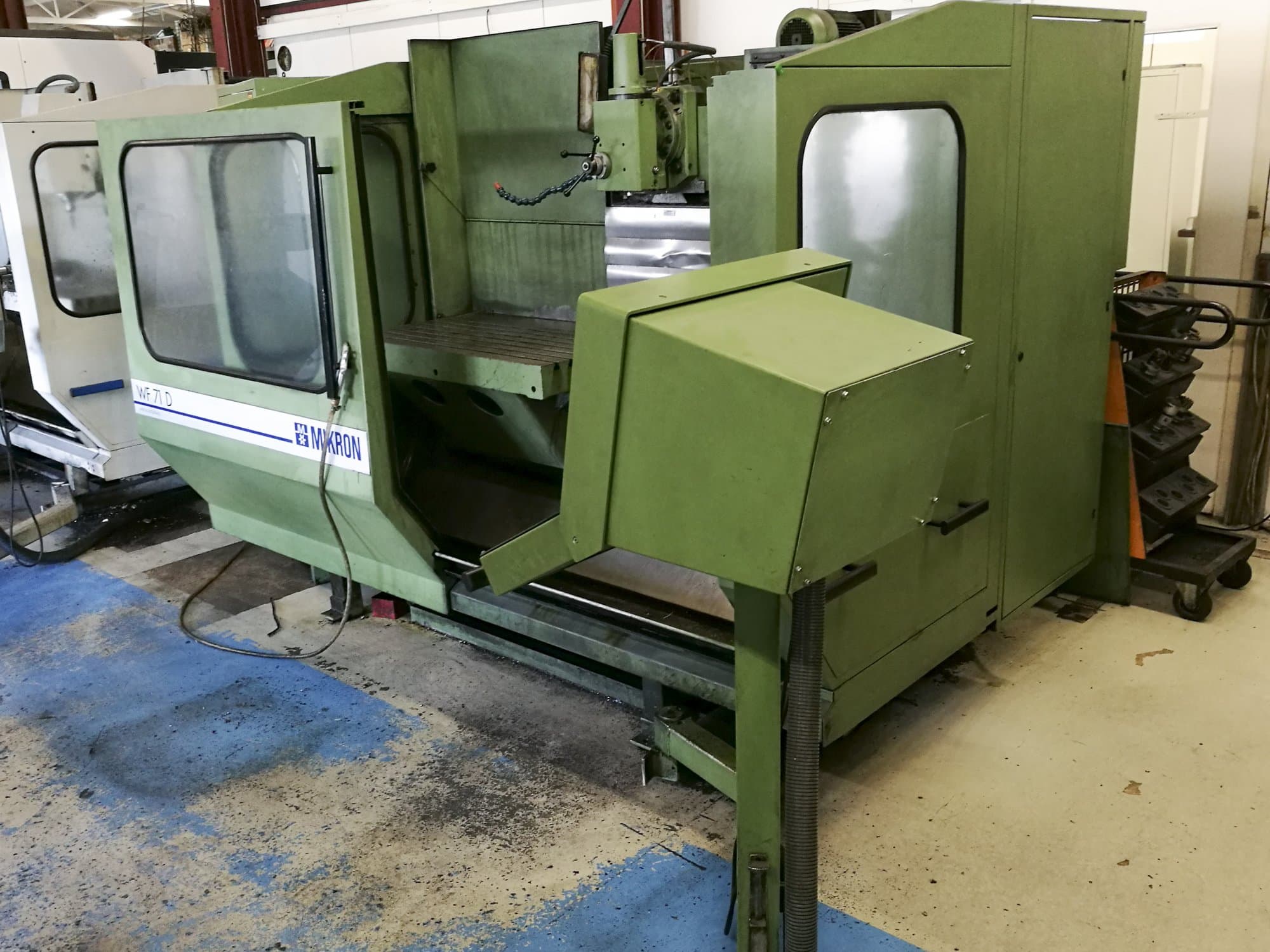

This WF-71 D is a Machining Center manufactured by Mikron in the year 1992. This machine is equipped with the outstanding HEIDENHAIN TNC 415 Control unit. In the past, this machine has exclusively worked with graphite, thus standing in a very good condition.

Overview

brand: MIKRON
year: 1992
MODEL: WF-71 D
production hours: 124703
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON WF-71 D

General Data

Measurements width: 3304 mm
Measurements depth: 2456 mm
Measurements height: 1990 mm
Machine weight: 3500 kg

Control Unit

Model: TNC 415
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 40-4000 1/min
Spindle motor power: 6 kW
Tool taper: SK40

Movement

X-AXIS Movement: 900 mm
X-AXIS Working Feed: 2-3000 mm/min
X-AXIS Rapid traverse: 6 m/min
X-AXIS Backlash: 0.05
Y-AXIS Movement: 500 mm
Y-AXIS Working Feed: 2-3000 mm/min
Y-AXIS Rapid traverse: 6 m/min
Y-AXIS Backlash: 0.03
Z-AXIS Movement: 500 mm
Z-AXIS Working Feed: 2-3000 mm/min
Z-AXIS Rapid traverse: 4 m/min

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 1000 mm
Outer width: 500 mm
Number of tslots: 7

Tools

Slots in storage: 12
Max weight: 6 kg
Max tool diameter: 80 mm
Max tool length: 200 mm

Media

Main electronic connection: 3x380 V / 50 Hz
Power consumption: 15.4 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
