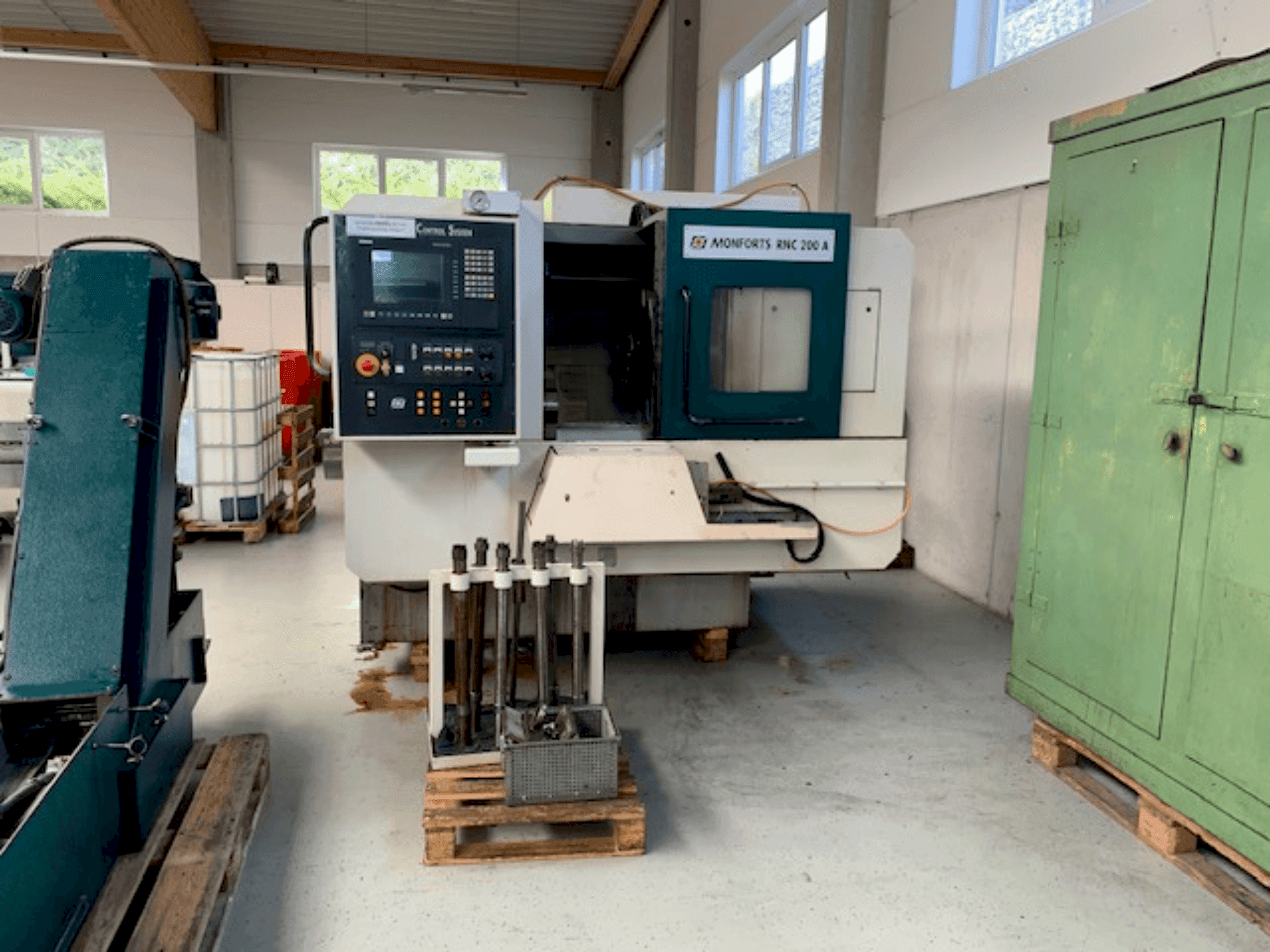

This MONFORTS RNC 200A lathe was manufactured in 2000. It features a maximum orbital diameter of 300mm and a turning length of 250mm. The main spindle supports a speed range of 50-6000 rpm, with a material passage of 42mm. Equipped with 12 driven stations and rapid traverse rates of 24m/min on the X/Z-axis, this machine ensures efficient and precise turning operations. The MONFORTS RNC 200A machine we have for sale is ready to meet your production needs. Delivery scope does not include a bar feeder. Contact us for more information.

Overview

brand: Monforts
year: 2000
MODEL: RNC 200A
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Monforts RNC 200A

General Data

Measurements width: 2320 MM
Measurements depth: 2270 MM
Measurements height: 1750 MM
Machine weight: 3500 KG

Main drive

Number of spindles: 1
Spindle speed range: 50 - 6000 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 175 mm
X-AXIS Feed Force: 3.6 kN
X-AXIS Rapid traverse: 24 m/miin
Z-AXIS Movement: 300 mm
Z-AXIS Feed Force: 3.6 kN
Z-AXIS Rapid traverse: 24 m/miin

Workpiece

Workpiece drm over bed: 300 mm
Workpiece drm over support: 190 mm

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Tailstock with quill diameter 70mm and max quill force 8.8 kN
The following tools are still available: Hainbuch Spanntop without collets, without tools, Chip conveyor, Spindle insert tubes for the following material diameters: 16/21/25/27/30/34/36 and 41.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
