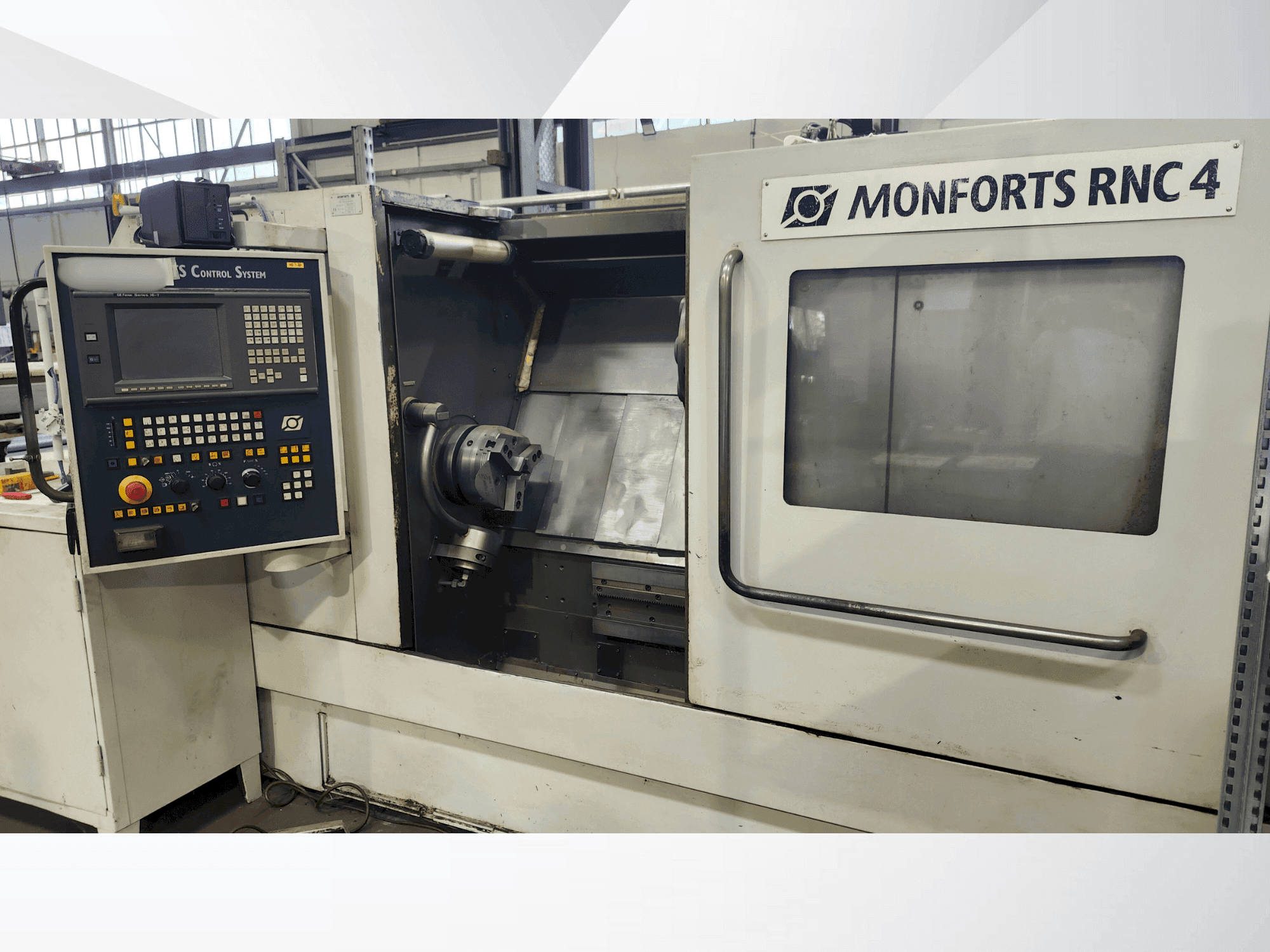

Monforts - RNC 4CH-TUR-MON-1997-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Various tools included, see pictures

Extra information

• - Machine still under power // Working area: Swing over bed: 420 mm/ Swing over radial slide: 280 mm/ Turning length: 600 mm/ Spindle diameter in front bearing: 130 mm/ Spindle mount: DIN 55026 A6/ Material throughput: 65 mm/ Main drive: Three-phase direct drive (100% duty cycle / 50% duty cycle): 18.5 / 22 kW/ Speed ​​range: 44 – 4000 rpm/ Torque: 346 / 411 Nm/ Feed drive: Three-phase servo drives with electronic safety monitoring/ Rapid traverse speed X/Z axis: 24 / 30 m/min/ Feed force X-axis: 6.4 kN/ Feed force Z-axis: 10.4 kN/ Tool turret: 12 tool holders according to DIN 69880 (VDI) 3425/2)/ Shaft diameter: 40 mm/ Control: MONFORTS Control System MCS F (Version 16T)/ With AC servo and digital spindle drives./ Features: 32-bit processor and bus/ Measuring circuits for 2 axes and 1 spindle (expandable up to 8 axes / 2 spindles)/ Integrated, freely programmable interface control/ Operator panel components: High-resolution color screen with tool path display (with/without machine movement)/ Softkey / Diagnostic system for service/ Integrated machine control and handheld control panel/ Basic CNC equipment: Program memory: approx. 256 KB/ Max. 63 programs in memory (expandable to 1000)/ 64 tool data memories, separate for length and wear/ Simultaneous program input during machining/ Cutting radius compensation/ Machining and thread-cutting cycles (four-cycle cycles)/ Subroutines (4-way nesting)/ Copying and mixing of programs/program sections/ Thread cutting up to 500 mm/rev, feed per revolution up to 500 mm/rev/ Input/output resolution: 0.001 mm/ Directly programmable spindle speed/ Correction for spindle speed, feed, and rapid traverse/ Constant cutting speed with speed limitation/ 8 zero point offsets (1 general, 1 additive, 6 programmable)/ Full-circle programming with direct radius input/ Spindle positioning (resolution: 0.1 degrees)/ Tool length determination by scratching/ Data backup for 6 months via batteries/ 2 RS232C-V24 interfaces (one connected to the control panel)/ Input/output of tool data via interface/ Support for 15T machining programs/ Additional equipment: Chip conveyor, chain hinge conveyor, discharge height: 1200 mm/ Reinforced coolant pump: 40 l/min at 3 bar/ Tailstock including guideway/ Quill diameter: 90 mm/ Stroke: 90 mm (programmable)/ Quill force (adjustable): 12,000 N, MT3/ Tailstock adjustment: manual/ Tool measurement: Manually retractable measuring probe in the work area/ Manual approach to the measuring probe, transfer of tool lengths including software/ Workpiece must be unclamped for the measurement process/ Chuck: Three-jaw power chuck, Forkardt, type 3 NHF 250-65/ Spindle mount: A6, max. 4000 rpm/ With base and hard top jaws, including connecting parts
