NCT KAFO SV-1000 Vertical Machining Center

Show in original language

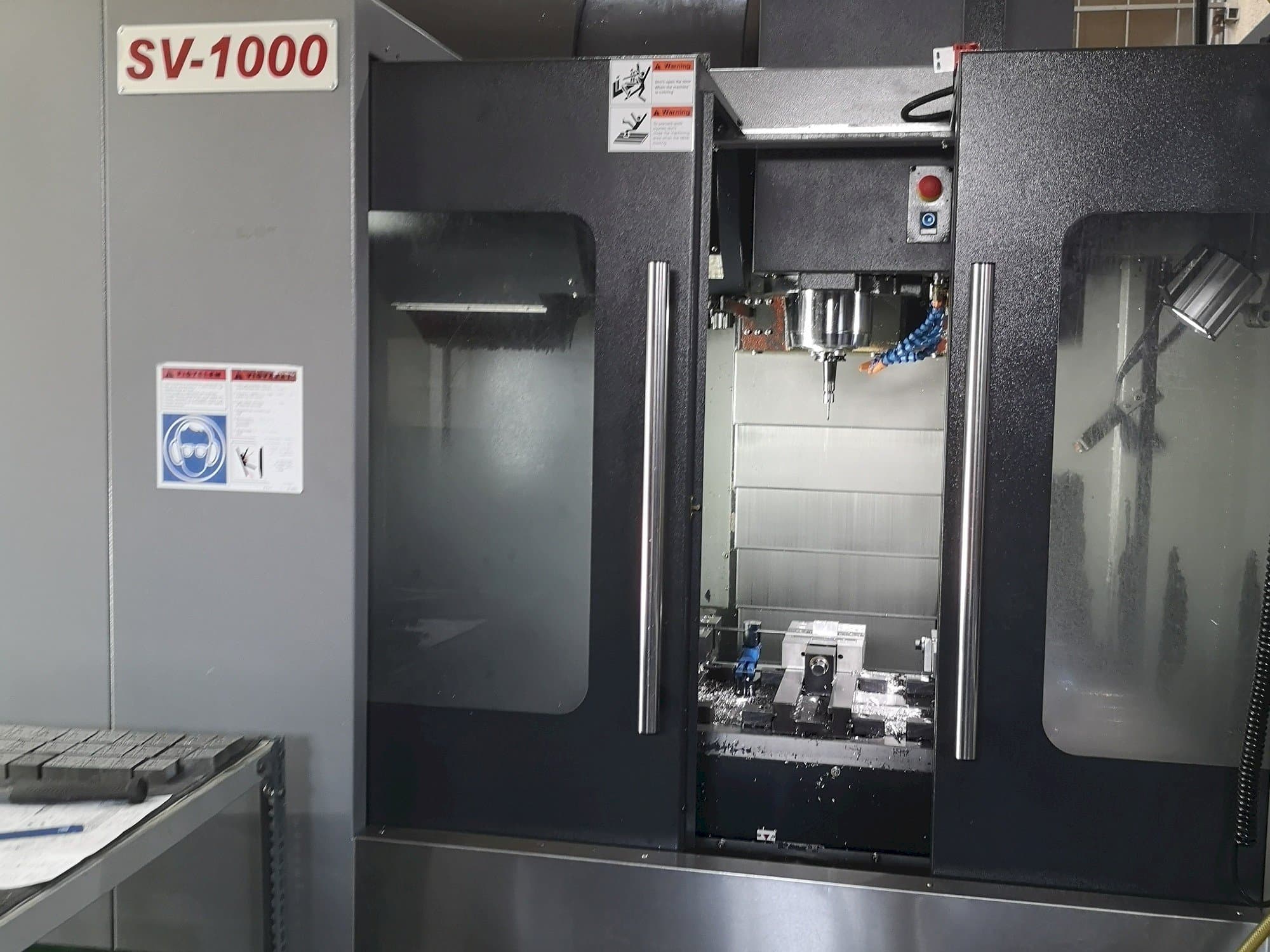

This NCT KAFO SV-1000 Vertical Machining Center was built in the year 2017 in Hungary. It is equipped with control unit of the same brand. This machine incorporates a spindle speed range up to 8.000 rpm. It presents very good conditions.

Overview

brand: NCT
year: 2017
MODEL: KAFO SV-1000
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre

Technical Information - NCT KAFO SV-1000

General Data

Measurements width: 2600 mm
Measurements depth: 2800 mm
Measurements height: 2890 mm
Machine weight: 5500 kg

Main drive

Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 1020 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 520 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 640 mm
Z-AXIS Rapid traverse: 36 m/min

Table

Outer length: 1150 mm
Outer width: 520 mm
Table load: 600 kg

Tools

Type of tool holder: BT-40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool magazine: 20
- - Tool storage: 16
- - Maximum tool diameter: Ø75 mm
- - Maximum tool length: 300 mm
- - Maximum tool weight: 6 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
