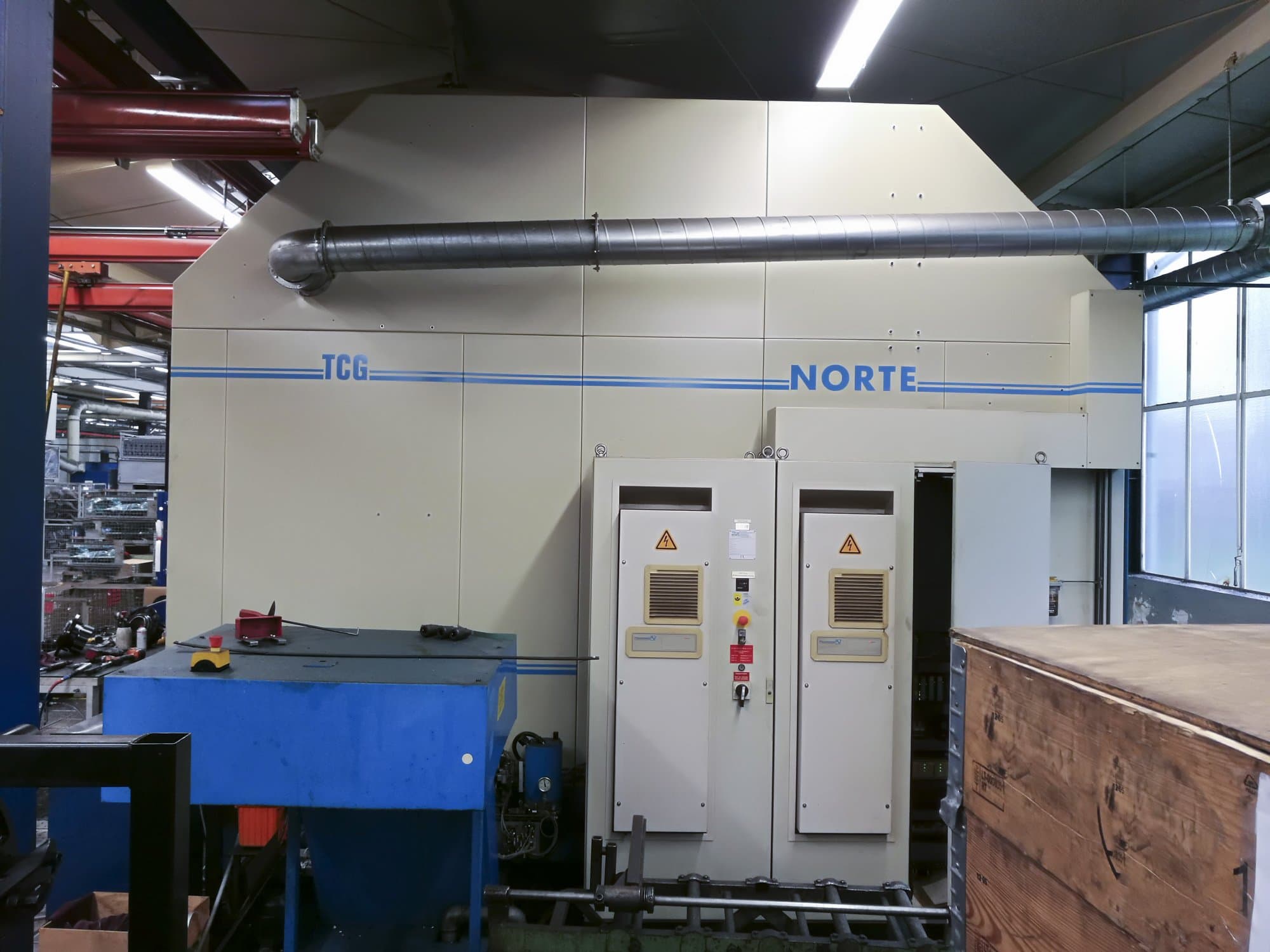

NORTE VHS 630 Machining Center

Show in original language

This NORTE VHS 630 Machining Center from 1999 was manufactured in Germany and has a working record of 15780 production hours since then. Equipped with a SIEMENS SINUMERIK 840D Control unit, this model stands out due to its large table size. During the past, this machine has mainly worked with steel and cast metal.

Overview

brand: NORTE
year: 1999
MODEL: VHS 630
production hours: 15780
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - NORTE VHS 630

General Data

Measurements width: 8234 mm
Measurements depth: 4800 mm
Measurements height: 4060 mm
Machine weight: 29000 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840 D

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/min

Movement

X-AXIS Movement: 4500 mm
X-AXIS Working Feed: 20 m/min
Y-AXIS Movement: 630 mm
Y-AXIS Working Feed: 20 m/min
Z-AXIS Movement: 1200 mm
Z-AXIS Working Feed: 20 m/min

Workpiece

Workpiece weight: 2000 kg

Table

Outer length: 4062 mm
Outer width: 850 mm

Turret

Number of turrets: 5
Number of tool slots: 28

Media

Main electronic connection: 400 / 230 V
Power consumption: 55 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
