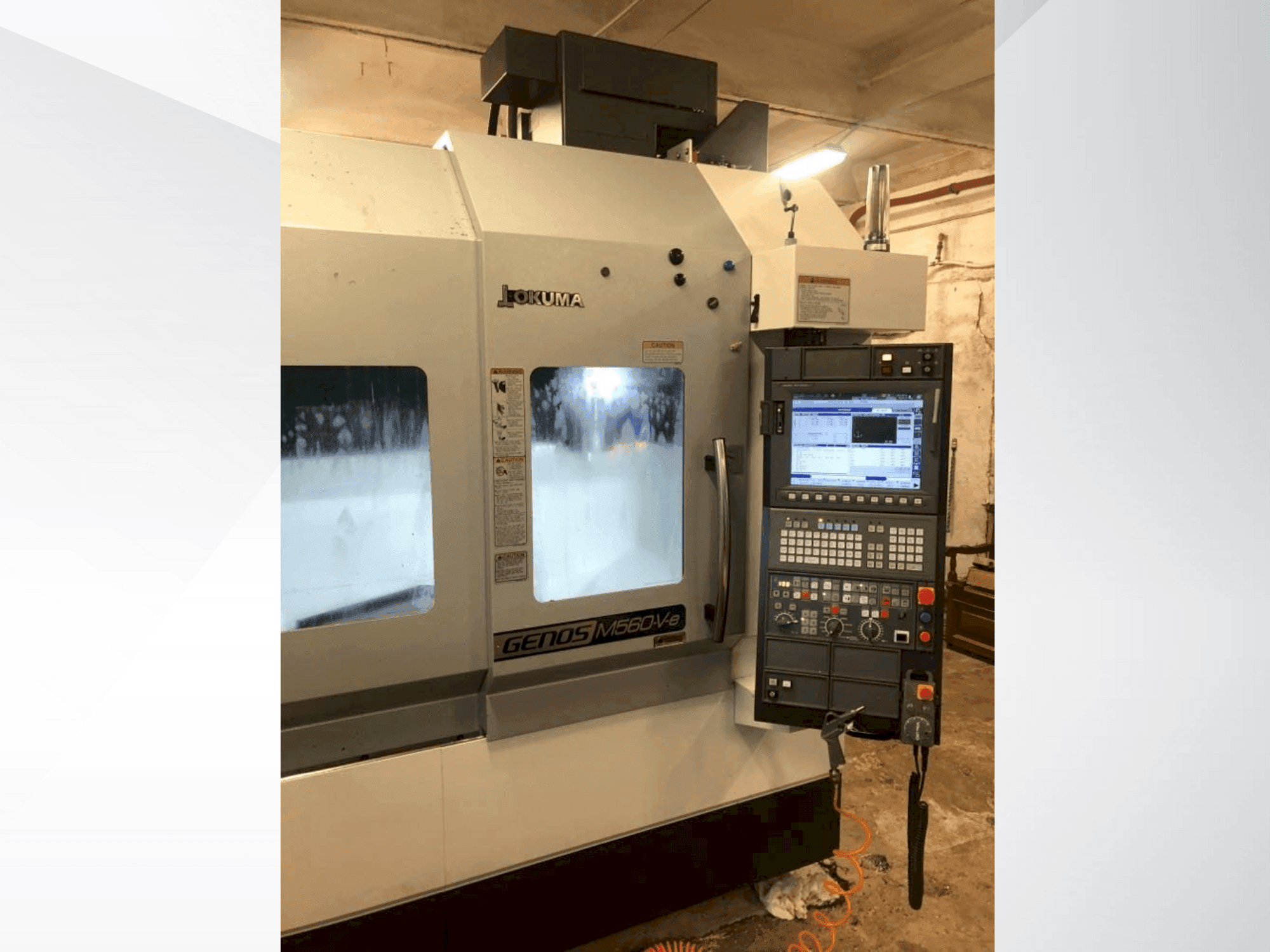

Front view of Okuma GENOS M560-V-e machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Okuma GENOS M560-V-e

Photo Gallery

Okuma - GENOS M560-V-eLT-MIL-OKU-2021-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Vertical Machining centre Okuma GENOS M560-V-e - 2021 - for sale | gindumac.com

Show in original language

This 4-axis OKUMA vertical machining centre was manufactured in 2021. It features an impressive travel range with X-axis at 1,050 mm, Y-axis at 560 mm, and Z-axis at 460 mm. The spindle can reach speeds up to 15,000 min^-1 and supports a maximum load capacity of 900 kg. Rapid traverse rates are 40 m/min for X and Y axes and 32 m/min for Z-axis, enhancing productivity. The machine accommodates 32 tools with a max tool diameter of 125 mm when adjacent slots are vacant. Reach out for further details regarding this vertical machine center.

Overview

brand: Okuma
year: 2021
MODEL: GENOS M560-V-e
application type: Milling
Location: Lithuania
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Okuma GENOS M560-V-e

General Data

Measurements height: 2746 mm
Machine weight: 8,300 kg

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Spindle motor power: 22/18.5 kW
Number of axis: 4

Movement

X-AXIS Movement: 1050 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 460 mm
Z-AXIS Rapid traverse: 32 m/min

Tools

Number of index: 32

Additional Equipment

- Feedrate
- Tool shank: MAS BT.40 [DIN No.40]
- Pull stud: JIS
- NC unit: OSP-P300M-e

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table top to spindle nose: 150 to 610 mm
- - Max work dimension: 1,300 x 560 mm
- - Distance from floor to table top: 800 mm
- - Max load capacity: 900 kg
- - Speed ranges: infinitely variable
- - Tapered bore: 7/24 taper no. 40
- - Bearing dia: ø70 mm
- - Cutting feedrate: 32,000 m/min
- - Max tool dia (with adjacent tools): ø90 mm // max tool dia (without adjacent tools): ø125 mm // max tool length: 300 mm // max tool mass: 8 kg // max tool mass moment: 7,8 (8 kg x 100 mm) n·m // tool selection: memory random
- - Axis feed: x·y·z: 3. 5 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
