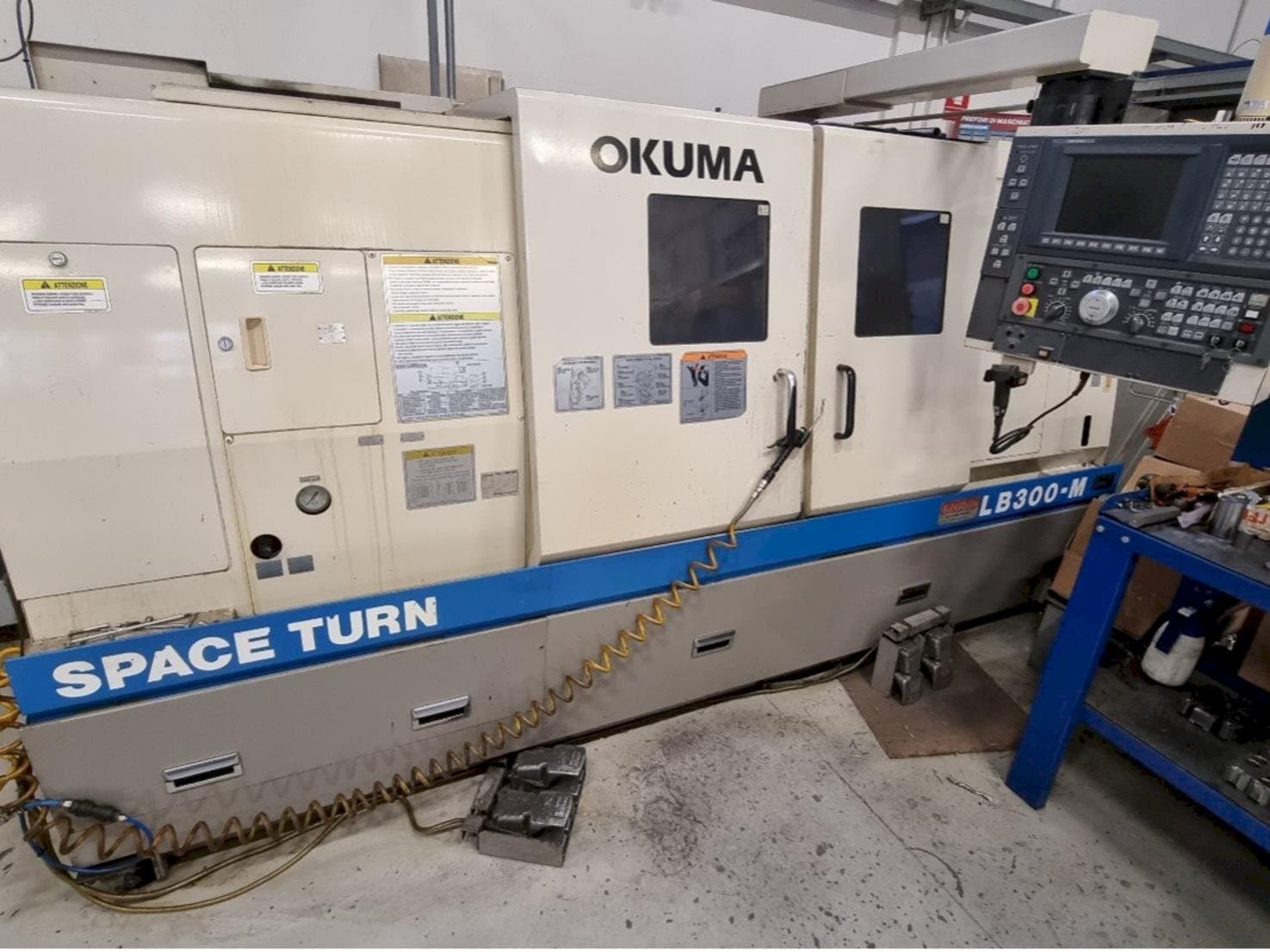

Okuma - LB 300MIT-TUR-OKU-2001-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Distance between the points 1020 mm.
  • - Dia. Max rotating on the guards 530 mm.
  • - Dia. Rotating between points 420 mm.
  • - Dia. Max turning with std. Tools 340mm.
  • - Spindle attachment asa 6”
  • - Dia. Useful bar passage 52
  • - Max power available kw 15/11
  • - Motor power x – z axis drive kw bl 3,0/bl 4,0
  • - X-axis push kfg 660
  • - Z axis push kfg 640
• Qualitative Machine Benefits:
  • - Screws activation axis x – z dia. /pitch 32-40/16 mm, x, z axis positioning precision mm. 0,01/100 – 0,15/300, positioning repeatability x – z axis +/- 0. 001 – 0. 002 mm,
  • - Turret for tools, station p/tools n. 12, attachment for vdi tools-mm. 40,
  • - Index time (1 position) sec. 0,1, index time (6 position) sec. 0,36, rotary tools drive, , station for motorizable tools n. 12
  • - Max power available kw 7/3. 3, max torque available nw 23. 7,
  • - Tailstock, dia. 90 mm post, post stroke mm. 120
  • - Cone attachment cm n. 5, maximum thrust allowed kfg 500,
  • - Chips conveyor with exhaust belt right, tailstock
  • - Autoc. Dia. 210mm.
  • - Manual presetting
  • - Static and motorized tool holders
