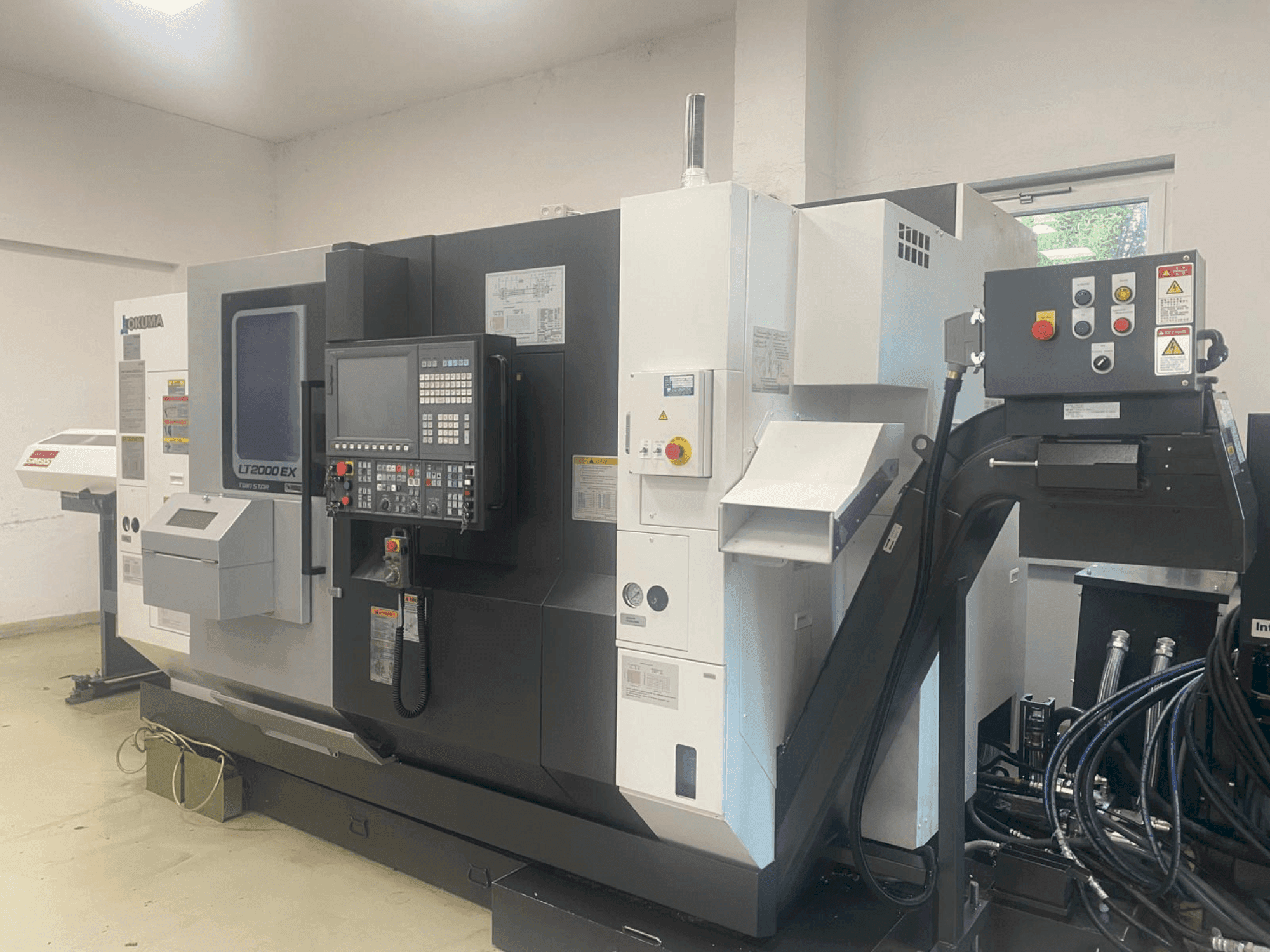

Okuma - LT2000-2T1MYDE-TUR-OKU-2022-00001

Additional Equipment

• - Automation: Samsys short bar loader
• - Extra Features: High-pressure pump & tank, high-pressure seal kit, workpiece removal arm, tool height correction in the Y-axis, coolant tank and pumps, detachable wired handwheel, tool monitoring, programmable face printing, and Hi-Cut Pro for driven tools
• - two BMT55 revolvers with 16 stations each

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Features: reduction of machine-related idle times, harmonic speed oscillation, automatic speed synchronization, and remote diagnostics during warranty
  • - Machine hours: 2268
  • - Z taper: 140 mm
  • - Front bearing diameter: 100 mm
  • - Torque: 183 nm
  • - Y-axis: y-axis in the upper turret with a movement range of +50/-45 = 95 mm
  • - Helical interpolation: available with x/y/z linear axes, including eccentric milling with x/y/c axes
  • - Tool monitoring system
  • - Tool corrections: 96 tool corrections per turret

Extra information

• - Spindle Orientation: Electronic spindle orientation +/- 0.1 Memory: 2 GB part program memory with a maximum program length of 2 MB Data Management: MacMan machine management with integrated production data acquisition Control Unit Control System: CNC double turning center with a control system featuring OSP suite with numerous apps and ECO suite energy-saving features Display: 15" color LCD TFT with 3D color graphics and a multi-touch screen/panel Operating System: Second Windows operating system for operation and data communication Controller Ports: 2 USB 2.0 ports on the control panel Communication: Ethernet/LAN interface with browser and DNC-T1 for program transfer Turret Tool Stations: Upper and lower turrets each with 16 driven tool stations Motor Power: 5.5 kW per motor Speed Range: 50 - 6000 rpm Torque: 22.5 Nm
