Quaser HX504II BP

Photo Gallery

Quaser - HX504II BPTW-MIL-QUA-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Quaser HX504II BP

Show in original language

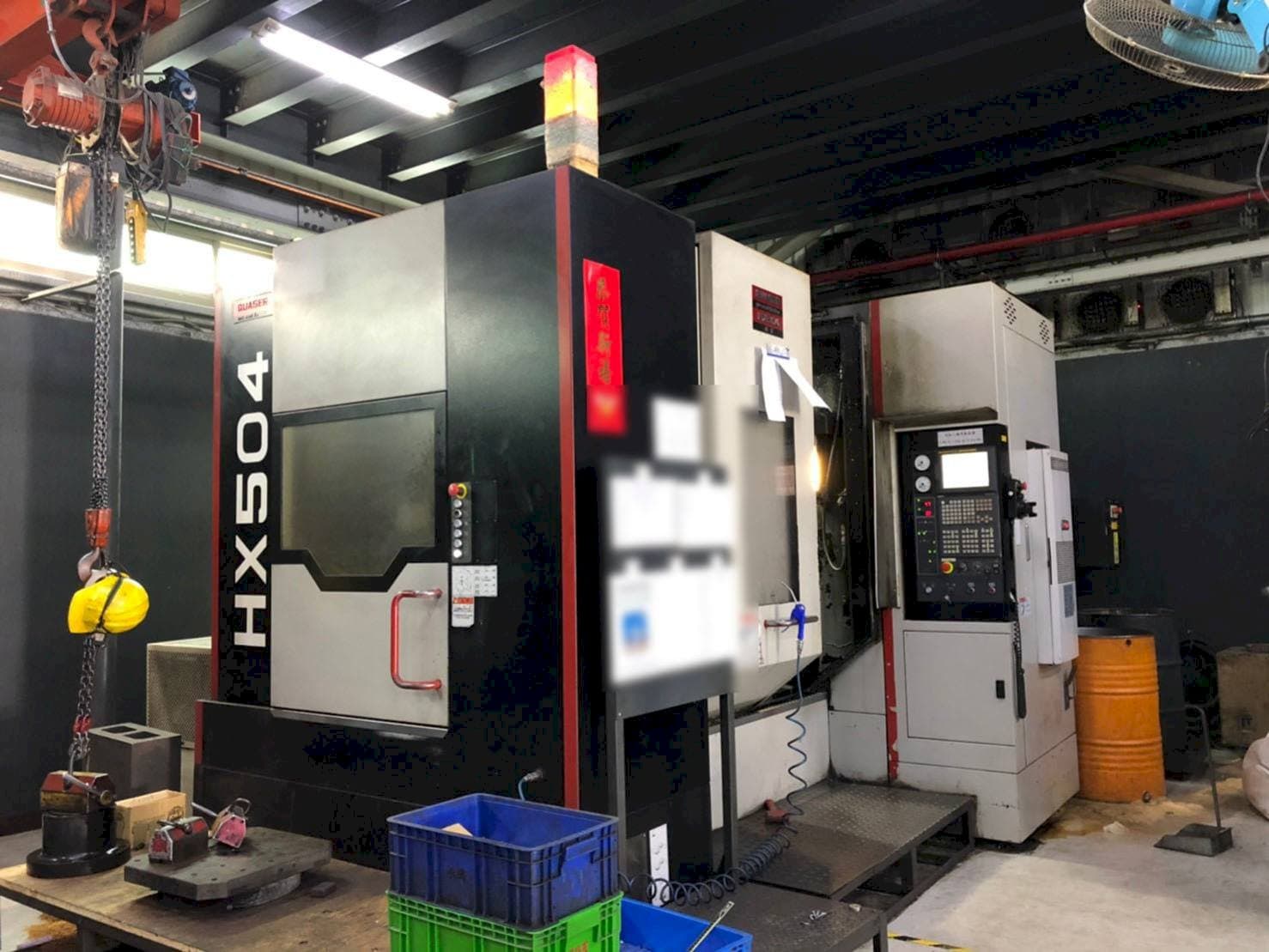

This Quaser HX504II BP Horizontal Machining Center was made in 2014. It has been on for 49684 hours, of which 8608 are operating hours, and 19185 are cutting hours. It is equipped with a FANUC 18iMB control unit. This 4 axis machine can work with a spindle speed up to 12000 rpm and comes with an air conditioner for electrical cabinet.

Overview

brand: Quaser
year: 2014
MODEL: HX504II BP
production hours: 8608
application type: Milling
Location: Taiwan
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Quaser HX504II BP

Control Unit

Model: 18iMB
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 30Kw/40HP
Number of axis: 4

Movement

X-AXIS Movement: 762 MM
Y-AXIS Movement: 640 MM
Z-AXIS Movement: 800 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bbt40 / 60atc
- - Table min. Indexing angle: 0. 001 degree
- - Coolant thru spindle 50bar + paper filter
- - Oil mist collector
- - Air conditioner for electrical cabinet
- - Air thru spindle
- - 4 axis machine. (x/y/z/b axis)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
