Samsung PL 60 LM

Photo Gallery

Samsung - PL 60 LMGB-TUR-SAM-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

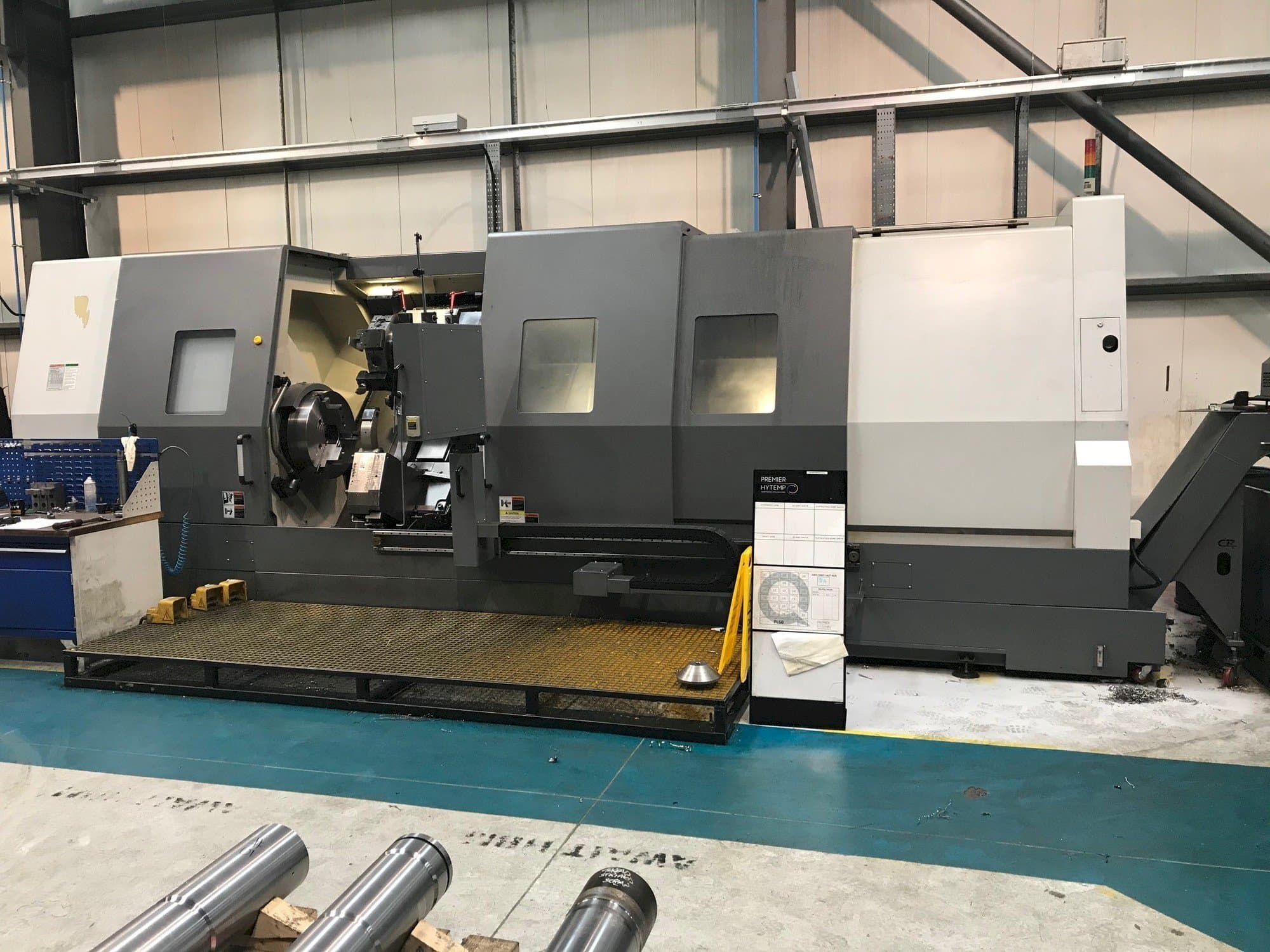

This Samsung PL 60 LM Lathe was built in South Korea in 2014. It has a record of 46802 hours, of which 6318 are cutting time and 1320 are running hours. This 3 axis machine is equipped with a FANUC Series oi-TD control unit. This lathe can work with a spindle speed up to 1500 rpm and a turning Length 3200 mm. As additional equipment a selection of driven tool holders is included. This machine is in very good condition.

Overview

brand: Samsung
year: 2014
MODEL: PL 60 LM
production hours: 46802
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Samsung PL 60 LM

Control Unit

Model: Series oi-TD
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 1500 1/MIN
Spindle motor power: 45.0 / 37.0 KW
Spindle bore: 152 MM
Number of axis: 3

Movement

X-AXIS Rapid traverse: 12 M/MIN
Y-AXIS Rapid traverse: 12 M/MIN

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Selection Of Driven Tool Holders, Axial & Driven Heads. (2 Off Each)
Selection Of Static Tool Holders Including Capto C4. (8 Off In Total)

Machine Benefits

Qualitative Machine Benefits

Machine in very good condition

Technical Machine Benefits

Heavy duty 3-axis extended slant bed cnc lathe with c-axis, driven tools & bmt85p turret
Swing over bed 1030 mm, over carriage 800 mm
Max. Turning length 3200 mm
Distance between centres 3250 mm
Chuck diameter 24" - 610 mm
C-axis indexing 0. 001 degree
Bar capacity 139. 5 mm
3 jaw hydraulic chuck, diameter 24” with hard & soft jaws, smw autoblok hydraulic steady model k5- msw with capacity 80 ~ 390 mm, heavy duty programmable tailstock, tool setting arm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
