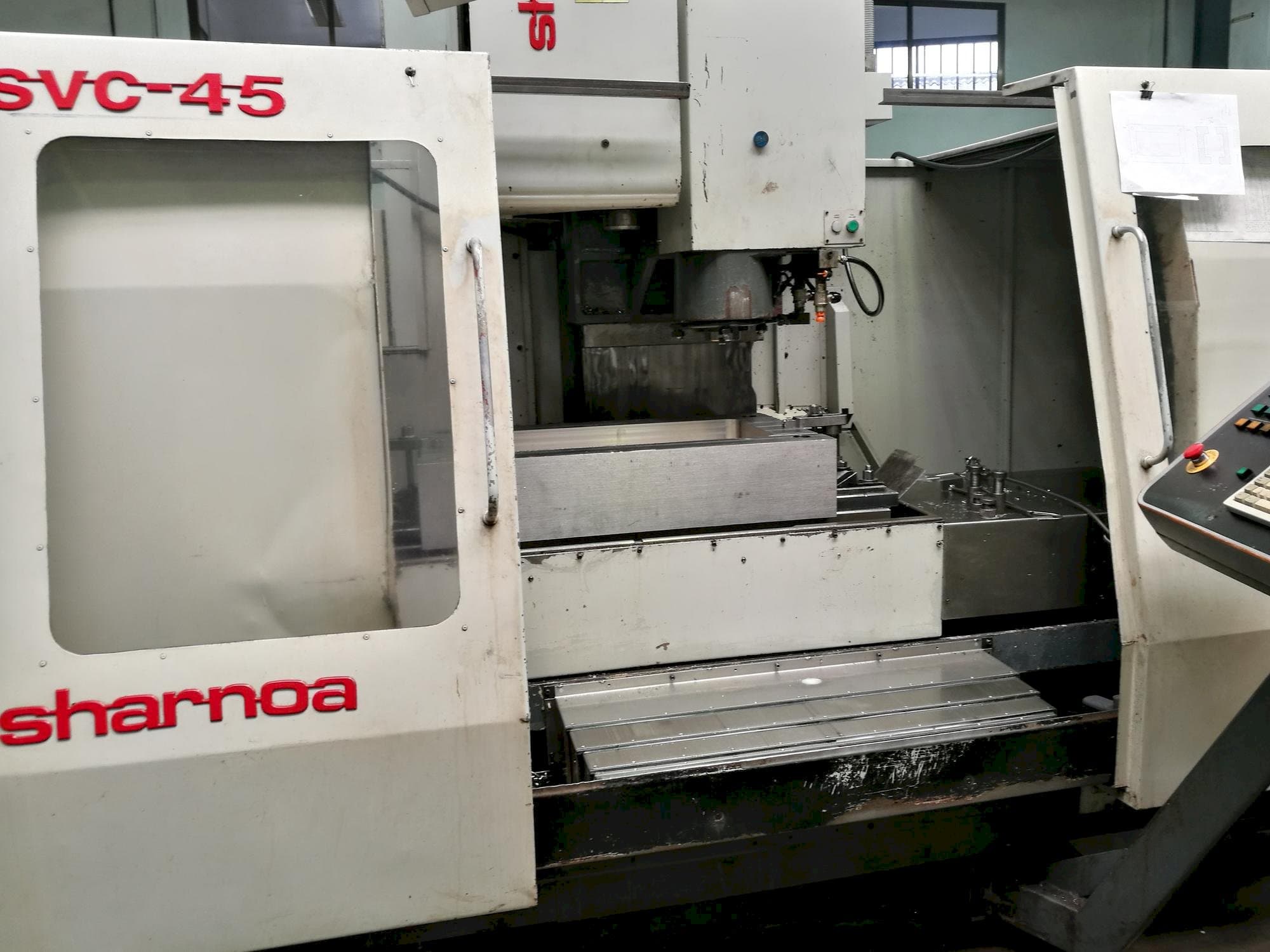

Sharnoa SVC-45 Vertical Machining Center

Show in original language

This Sharnoa SVC-45 Vertical Machining Center was built in 1993 in Spain and has been operative for 20000 hours. Equipped with a Sharnoa Tiger 5 Control unit, this machine can operate with a spindle speed range of 60-6540 rpm. It incorporates travels of 1130 x 560 x 670mm. It has a really good status, as in 2016 it had a complete revision and alignment of the axes.

Overview

brand: Sharnoa
year: 1993
MODEL: SVC-45
production hours: 20000
application type: Milling
Location: Spain
machine type: Vertical Machining Centre

Technical Information - Sharnoa SVC-45

General Data

Measurements width: 2500 mm
Measurements depth: 2665 mm
Measurements height: 2848 mm
Machine weight: 7500 kg

Control Unit

Model: Tiger 5
CNC main language: Spanish
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 60-6540 rpm 1/MIN

Movement

X-AXIS Movement: 1130 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 670 mm

Workpiece

Workpiece x: 1130 mm
Workpiece y: 560 mm
Workpiece z: 670 mm
Workpiece weight: 1000 kg

Table

Outer length: 1250 mm
Outer width: 500 mm

Tools

Slots in storage: 24
Max weight: 10 kg
Max tool diameter: 100 mm
Max tool length: 250 mm
Type of tool holder: BT-40

Media

Main electronic connection: 220 V
Power consumption: 30 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
