➤ Used Sigma EK 110/50 For Sale | gindumac.com

Show in original language

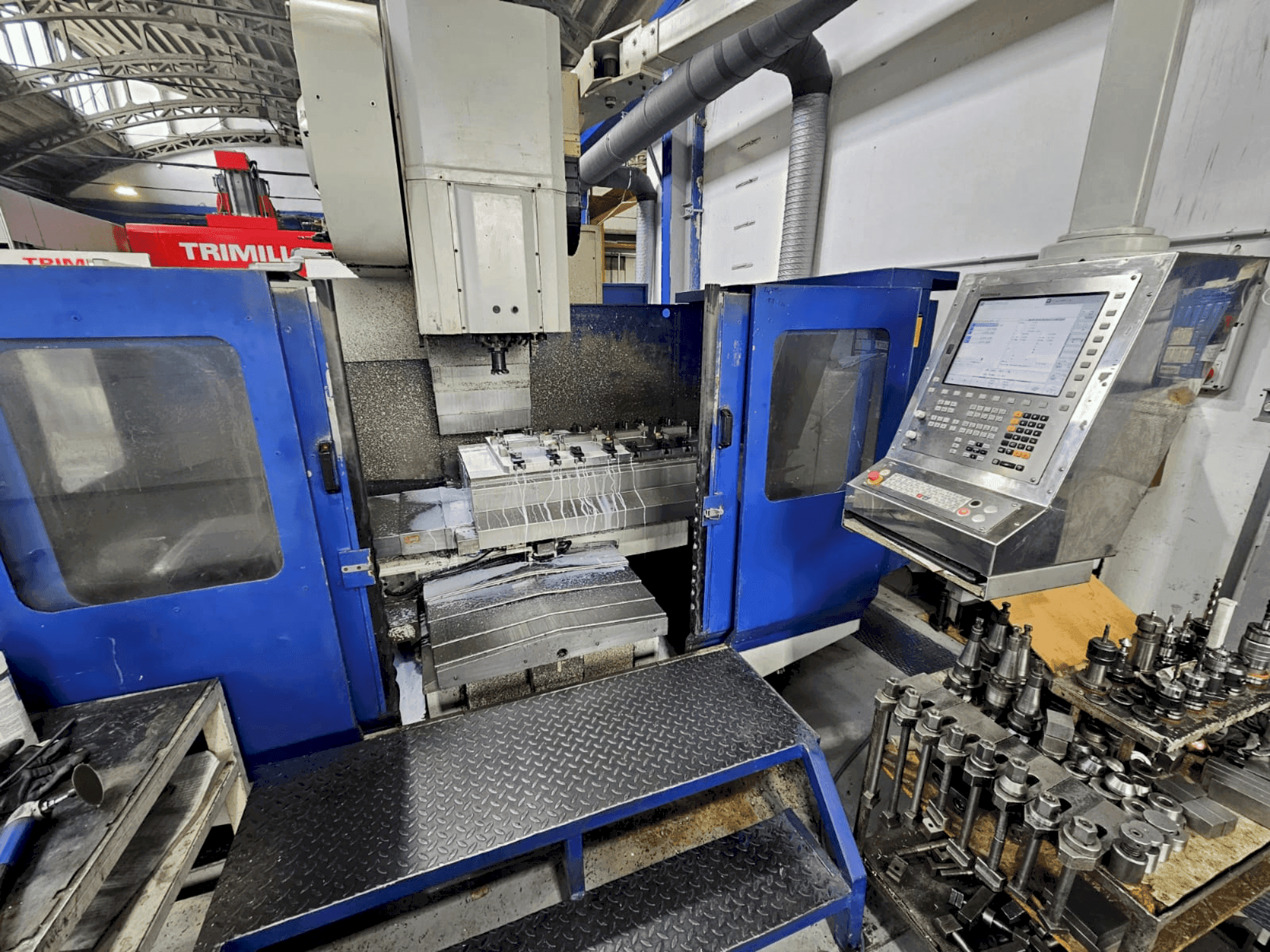

This 3-axis Sigma EK 110/50 CNC milling machine was manufactured in 1985 and fully refurbished in 2015. It features a robust table size of 1400 x 650 mm, capable of handling a maximum load of 2500 kg. Equipped with a high-capacity tool magazine holding up to 40 tools and rapid feed rates up to 15,000 mm/min, this machine ensures efficient and precise milling operations. If you are looking to get high-quality milling capabilities, consider the Sigma EK 110/50 machine we have for sale. Contact us for more information.

Overview

brand: Sigma
year: 1985
MODEL: EK 110/50
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Sigma EK 110/50

General Data

Measurements width: 5300 mm
Measurements depth: 5900 mm
Measurements height: 3266 mm
Machine weight: 12800 kg

Control Unit

Brand: HEIDENHAIN
Model: tnc 320

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 1250 MM
Y-AXIS Movement: 650 MM
Z-AXIS Movement: 750 MM

Table

Outer length: 1400 mm
Outer width: 650 mm
Table load: 2500 kg

Additional Information

Additional equipment

Tool Magazine: Type: Random with Fixed Position Double Clamps ISO 50 DIN 69871-A
Tool Capacity: 40 tools
Max Tool Diameter (with adjacent tools): 120 mm / Max Tool Length: 200 mm / Max Tool Weight: 20 kg
Tool Change Time: Tool-to-Tool Time: 5 sec / Chip-to-Chip Time: 11 sec
Connected Load: 36 kW / Coolant Pump Capacity: 250 l/min / Coolant Tank Capacity: 320 l
Hydraulic Tank Capacity: 80 l / Compressed Air Consumption: 0.1 m³/h / Compressed Air Connection: 0.50-0.60 Mpa
Spindle and Drive: Spindle Nose/Table Distance (min/max): 770 mm / Spindle Axis/Guides Distance (with telescopic cover): 715 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
