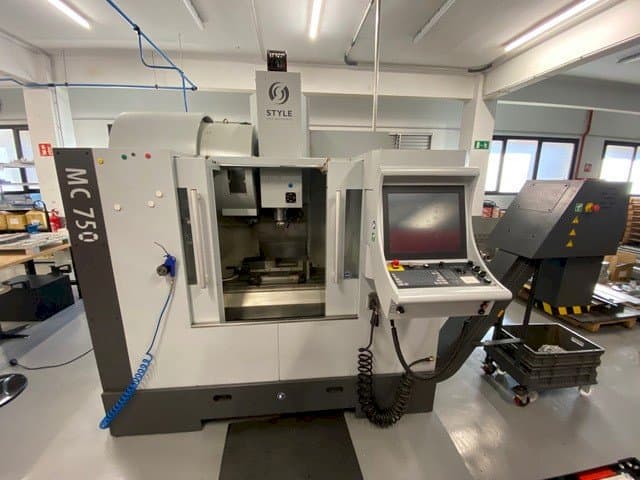

STYLE MC 750 Vertical Machining center

Show in original language

This STYLE MC 750 Vertical Machining center was manufactured in the year 2020 in the Netherlands and has 1156 production hours. It has 4 axis. The machine has a spindle speed of 8000 rpm. See the extract of the original order confirmation (EN) attached as PDF below.

Overview

brand: STYLE
year: 2020
MODEL: MC 750
production hours: 1156
application type: Milling
Location: Andorra
machine type: Vertical Machining Centre

Technical Information - STYLE MC 750

General Data

Measurements width: 2200 mm
Measurements depth: 2100 mm
Measurements height: 2500 mm
Machine weight: 3300 kg

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 5.5 kW
Tool taper: BT 40
Number of axis: 4

Movement

X-AXIS Movement: 760 mm

Table

Outer length: 900 mm
Outer width: 410 mm
Height adjustment: 820 mm
Table load: 350 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle nose to table 100-560 mm
- - Distance spindle nose to column 475 mm
- - X-, y- and z-axis
- - Rapid movement x/y/z 24 m/min
- - Feed rate x/y/z 10 m/min
- - Axis guide width x/y/z mm lineair 35
- - Automatic tool changer 16/24
- - Max. Weight tools 8 kg
- - Max. Tools length 300 mm
- - T-slots (din 650) 16x100x4 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
