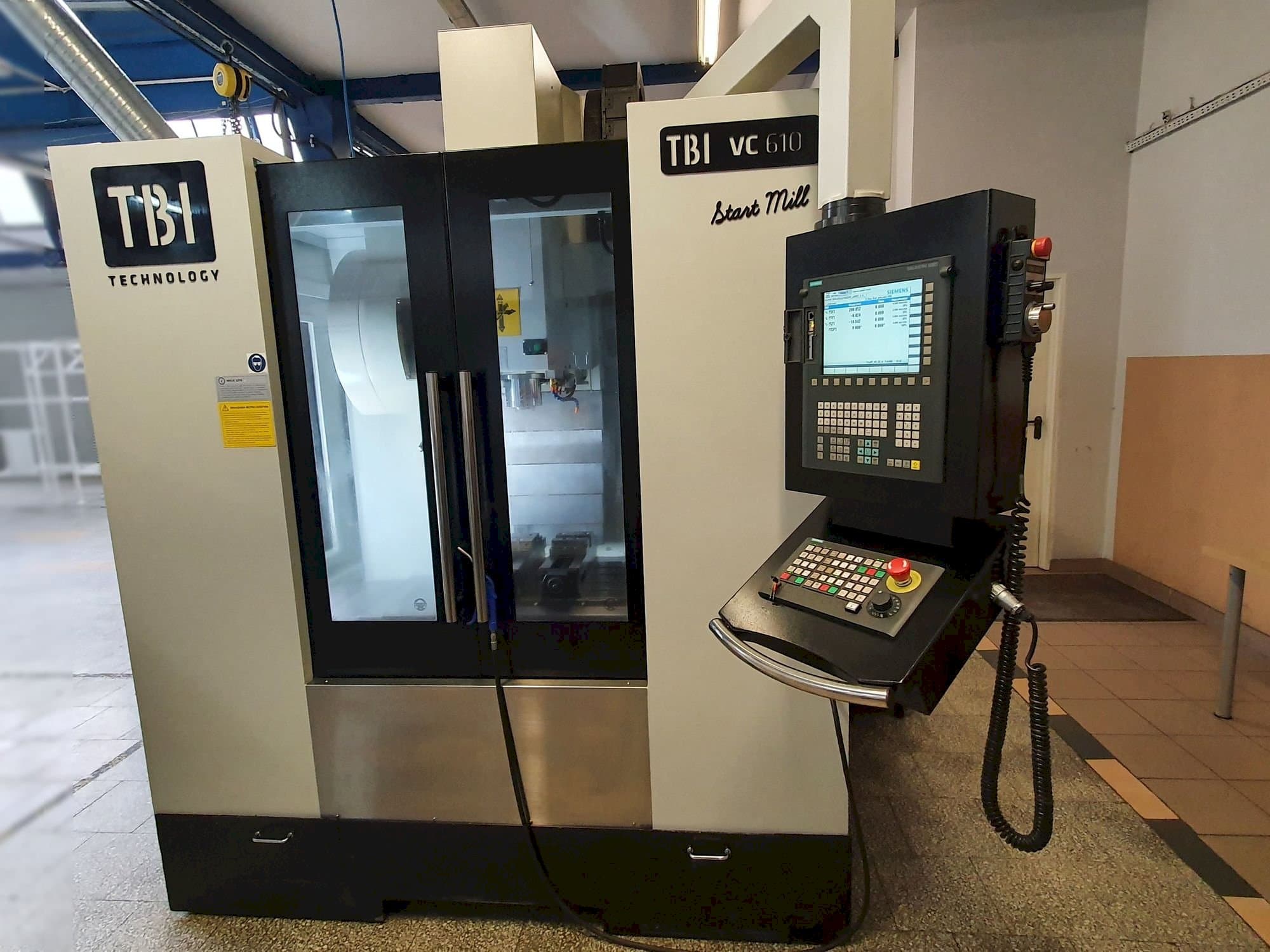

Front view of TBI VC610 Start Mill machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TBI VC610 Start Mill

Photo Gallery

TBI - VC610 Start MillPL-MIL-TBI-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
TBI VC610 Start Mill Vertical Machine Center

Show in original language

This TBI VC610 Start Mill Vertical Machine Center was manufactured in the year 2016 (the first installation and startup in 2017). It has been working for approximately 4000 hours. This 3 axis machine operates through a Siemens Sinumerik 828D control unit. It has a spindle speed up to 10000 rpm. The machine is in very good condition and is ready for tests. Full documentation available.

Overview

brand: TBI
year: 2016
MODEL: VC610 Start Mill
production hours: 4000
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - TBI VC610 Start Mill

General Data

Measurements width: 2180 mm
Measurements depth: 1850 mm
Measurements height: 2500 mm
Machine weight: 4500 kg

Control Unit

Model: Sinumerik 828D
Brand: SIEMENS

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 7,5/11 kW
Tool taper: SK40
Number of axis: 3

Movement

X-AXIS Movement: 610 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 450 mm

Table

Outer length: 650 mm
Outer width: 400 mm
Table load: 400 kg

Media

Main electronic connection: 400V / 50Hz
Power consumption: 20 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle - table distance: 130 – 580 mm
- - Automatic tool changer: 20 pcs
- - Max tool dim. : 80 mm
- - Max tool length: 300 mm
- - Max tool weight: 7 kg
Qualitative Machine Benefits:
- - This machine looks like a new and is ready for test.
- - Full documentation available.

Extra information

- No additional tooling included in the offer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
