TORNOS MultiSwiss 8x26 Lathe

Show in original language

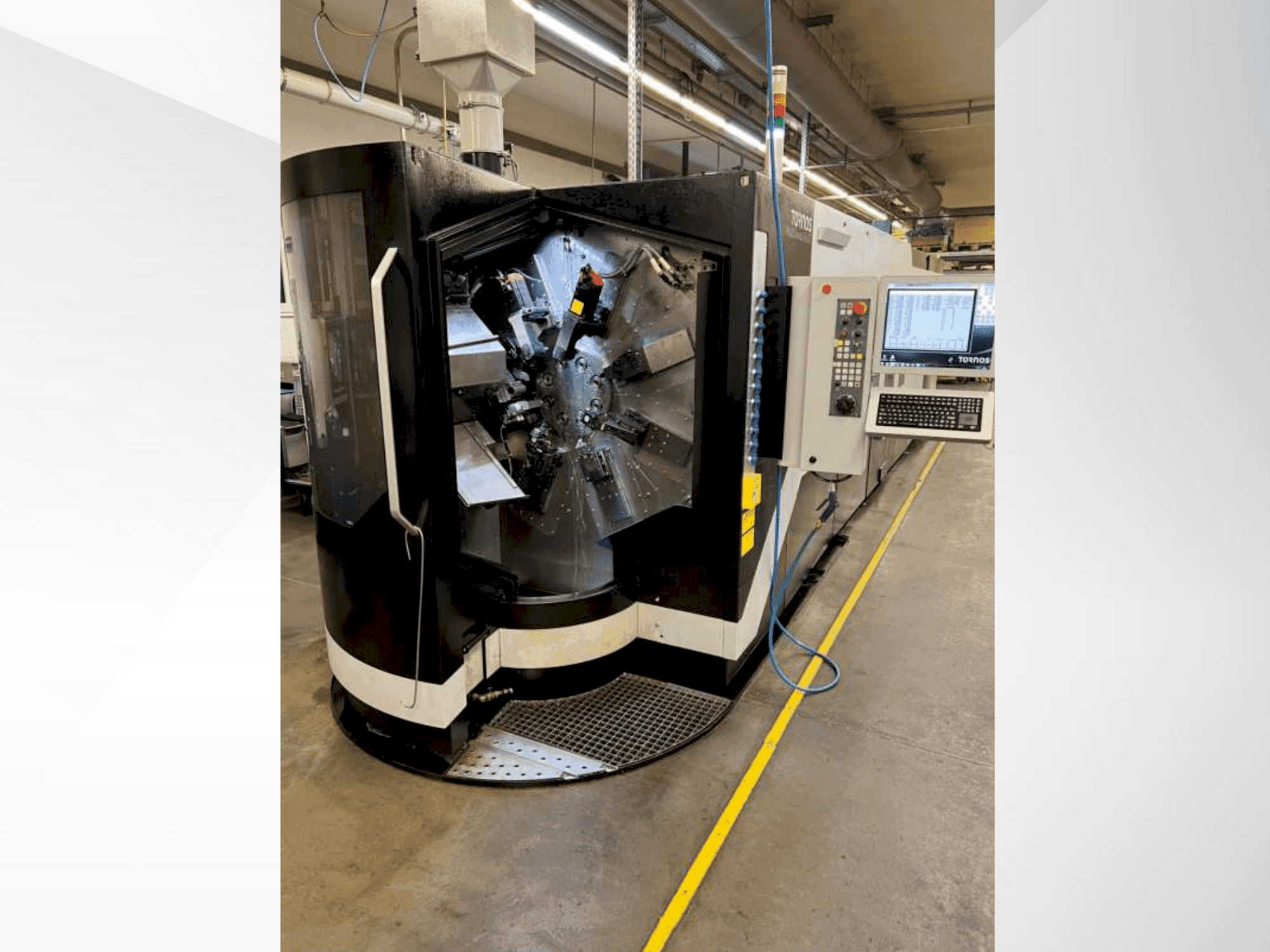

This TORNOS MultiSwiss 8x26 Lathe was manufactured in the year 2018. It is equipped with a Kraft & Bauer fire extinguishing system and a hinged belt conveyor. It is included all existing machining units and accessories. The machine is under power and immediately available.

Overview

brand: TORNOS
year: 2018
MODEL: MultiSwiss 8x26
production hours: 8070
application type: Turning
Location: Germany
machine type: Swiss Type Turning Machine
availability: Immediately

Technical Information - TORNOS MultiSwiss 8x26

Main drive

Number of spindles: 9
Spindle speed range: 8000 rpm 1/MIN
Wire diameter: 26mm
Number of axis: 3

Additional Equipment

- Including all existing machining units and accessories

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Oil cooling // all axes fully cnc
- - 9 spindles (8 main and 1 counter)
- - 4 x back machining
- - Hinged belt conveyor for finished parts
- - 2x 80 bar high pressure pumps
- - Kraft & bauer fire extinguishing system
- - Bar loader // paper belt filter
- - Z axis: 75mm stroke 150mm x 170mm // stroke 8 slides x 80mm // stroke fanuc 30i // z 150mm x 170mm stroke
- - Holder for 2 quick-change systems vdi-25 // slide max. 135mm // part length max. 65mm
- - Collets diameter 6-26mm // counter-spindle collet 3-26mm diameter
Qualitative Machine Benefits:
- - Machine under power and immediately available
- - Oil collecting basin
- - Clamping tubes 20mm diameter // reduction tubes 20mm diameter
- - Bracket for 2 front units 25mm diameter // support for 2 front units 25mm diameter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
