TSUGAMI SS327-5AX

Photo Gallery

TSUGAMI - SS327-5AXKR-TUR-TSU-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

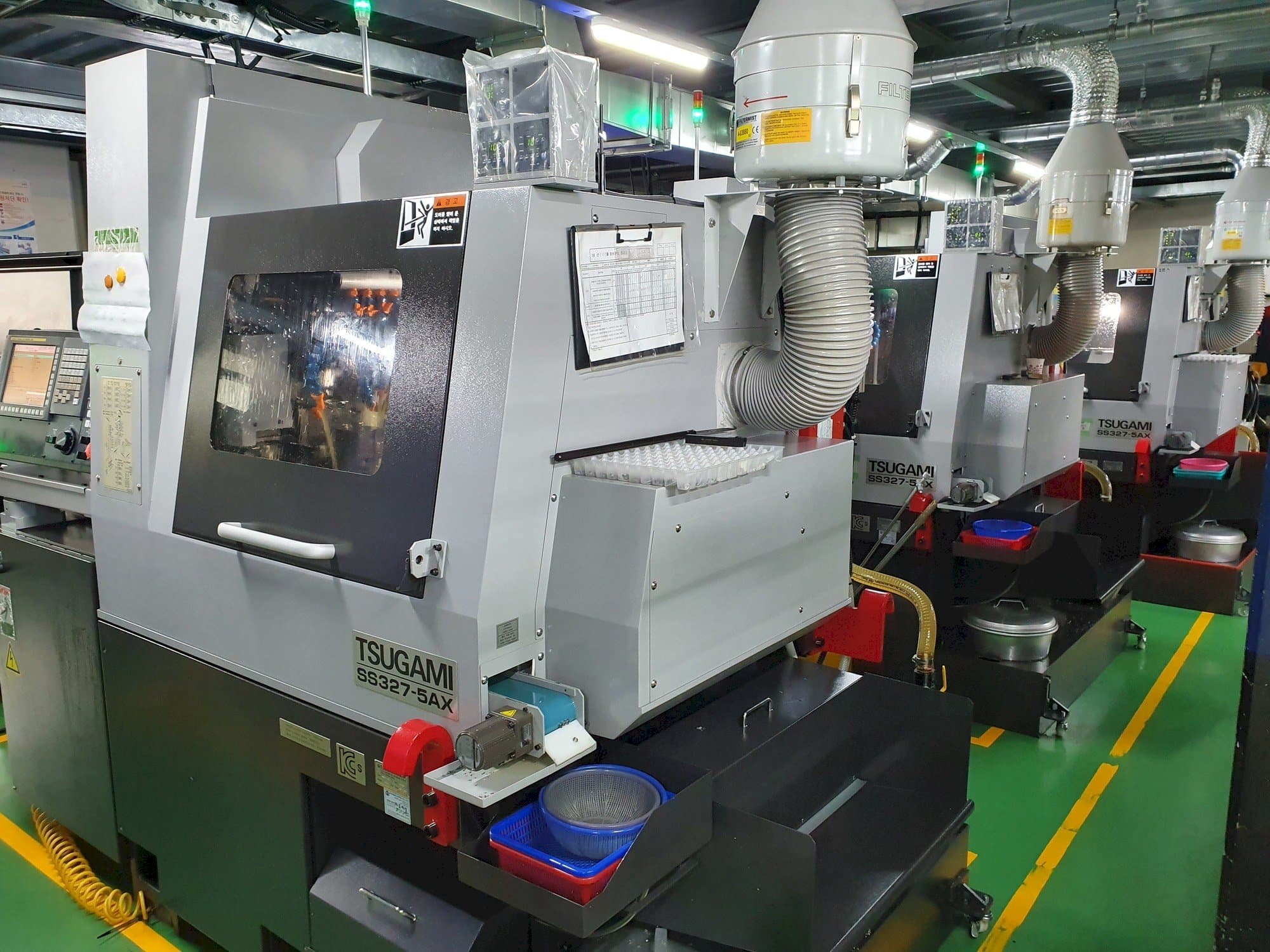

TSUGAMI SS327-5AX Lathe

Show in original language

This TSUGAMI SS327-5AX Lathe was manufactured in Japan in 2018. Equipped with a FANUC 31i-MODEL B5 Control unit, this powerful machine operates with a spindle speed up to 60000 rpm with a NAKANISHI tool, EM20-S6000 (Very high rpm is required to process ultra-precision. It's a very special option.

Overview

brand: TSUGAMI
year: 2018
MODEL: SS327-5AX
application type: Turning
Location: South Korea
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - TSUGAMI SS327-5AX

General Data

Measurements width: 2630 mm
Measurements depth: 1280 mm
Measurements height: 2010 mm
Machine weight: 4000 kg

Control Unit

Model: 31i-MODEL B5
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 3.7/5.5KW
Number of axis: 7

Movement

X-AXIS Rapid traverse: 35 m/min
Y-AXIS Rapid traverse: 35 m/min
Z-AXIS Rapid traverse: 24 m/min

Tools

Slots in storage: 38

Additional Equipment

- NAKANISHI tools.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar-feeder brand:barload (3. 2 meter)
- - B-axis sliding headstock swiss type lathe
- - Live tool positions std 16 max 18
- - Nakanishi tool, em20-s6000 (very high rpm is required to process ultra-precision. It's a very special option. Maximum rpm 60,000.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
