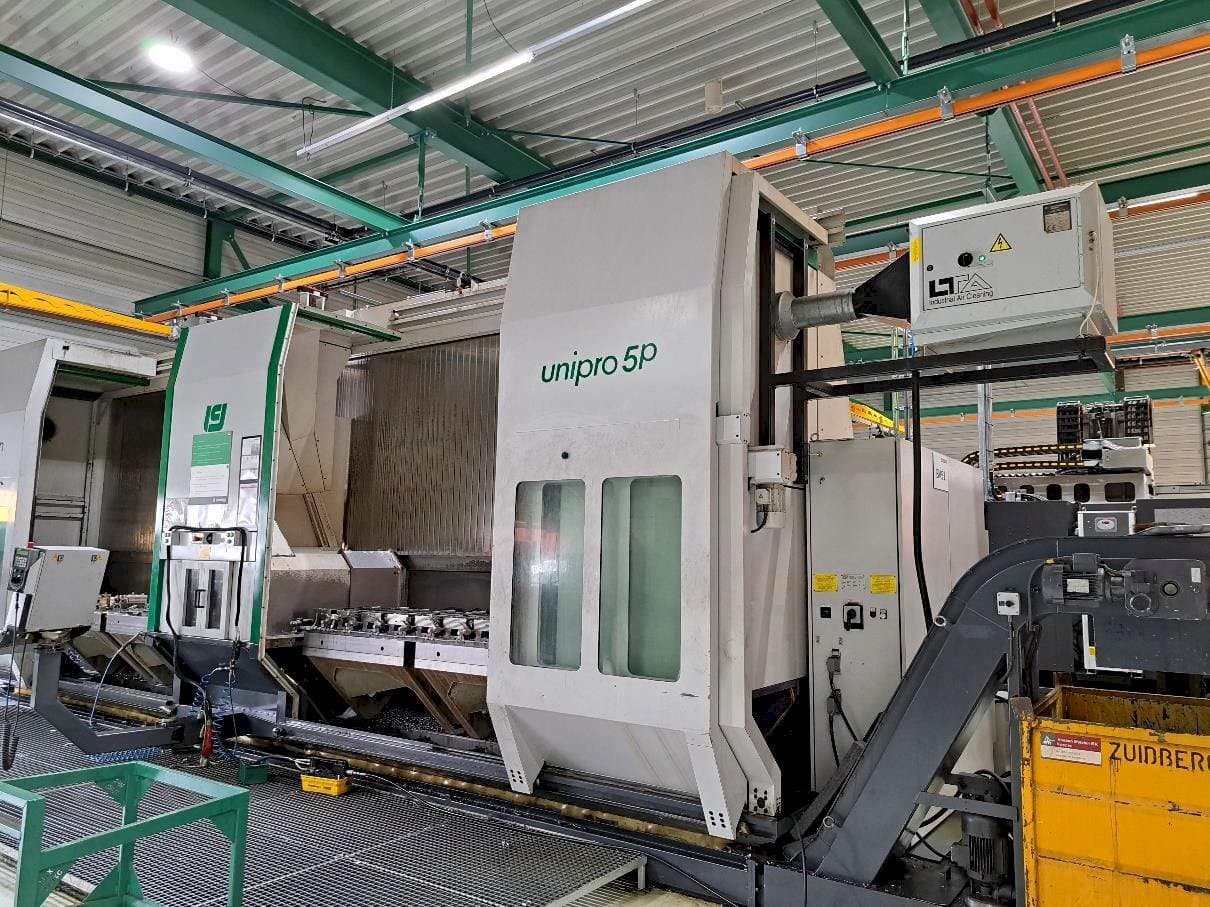

Unisign Unipro 5P Drilling and Vertical Machining center

Show in original language

This Unisign Unipro 5P Drilling and Vertical Machining center was manufactured in the year 2004 in Netherlands. It is equipped with a Siemens Sinumerik 840D control unit. The machine has a spindle speed of 12000 rpm and a drill pressure of 1300 kN.

Overview

brand: Unisign
year: 2004
MODEL: Unipro 5P
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Unisign Unipro 5P

General Data

Measurements width: 10500 MM
Measurements depth: 4500 mm
Measurements height: 3700 mm
Machine weight: 20500 kg

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 2 x 2000 mm
X-AXIS Rapid traverse: 60000 mm/min
Y-AXIS Movement: 800 mm
Y-AXIS Rapid traverse: 60000 mm/min
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 60000 mm/min

Table

Table load: 2000 kg

Tools

Slots in storage: 63 + 99 (Extra magazine)
Max weight: 10 kg
Max tool diameter: 95 mm
Max tool length: 350 mm
Type of tool holder: HSK 63 A

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Drill pressure: 1300 kn
- - Torque spindle 180 nm
- - Main bearing diameter d = 70 mm
- - Tool change time, approx. 4. 5 sec
- - Drilling in c45 d = 50 mm
- - Tapping in c45 m30
- - Milling in c45 400 cm3/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
