URBAN - PF 6500DE-MIL-URB-2009-00001

Name: URBAN PF 6500
Brand: URBAN
SKU: DE-MIL-URB-2009-00001
Price: 34372 GBP
Availability: InStock

£ 34,372

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used URBAN PF 6500 For Sale | gindumac.com

Show in original language

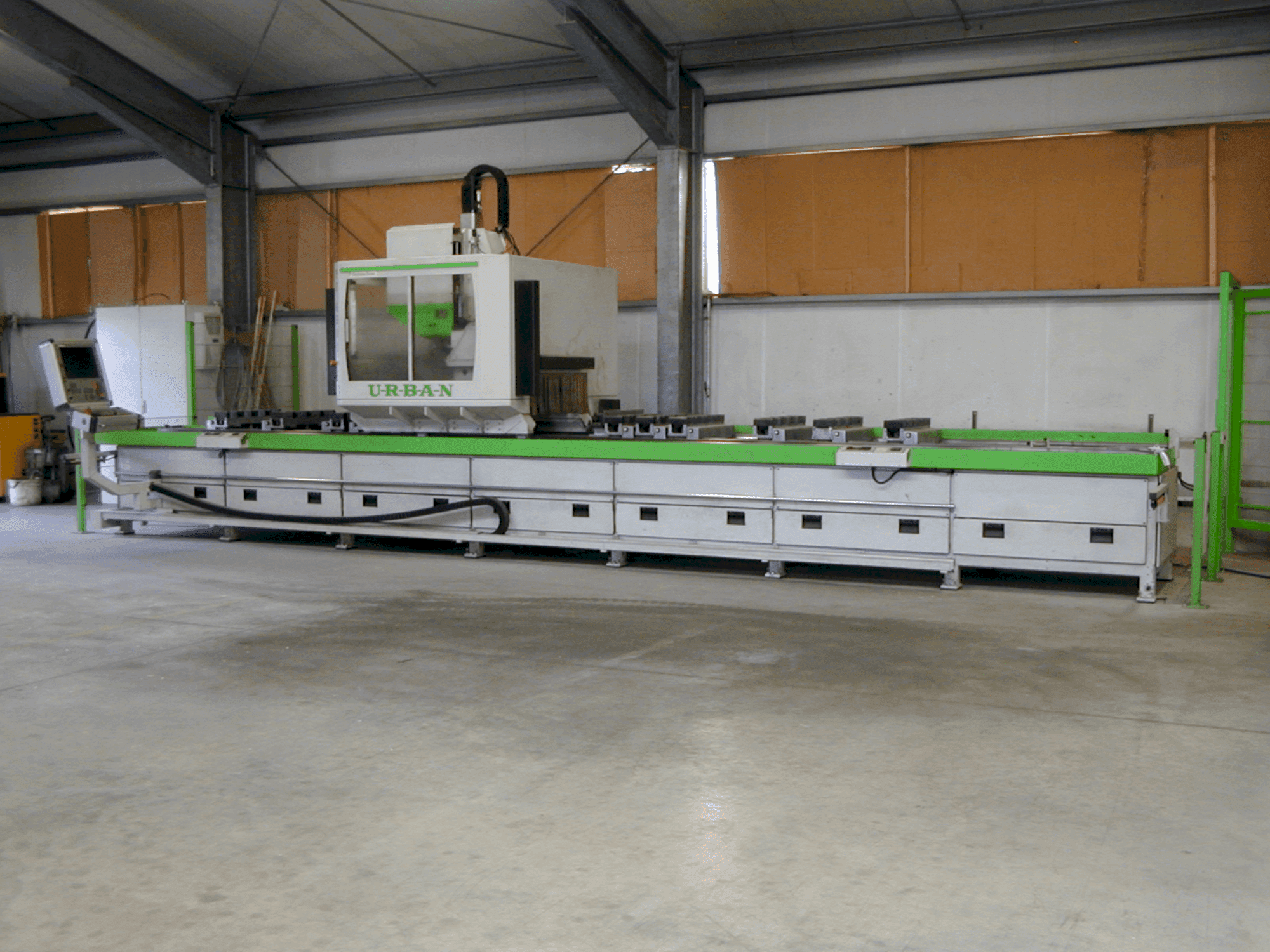

This 3-axis URBAN PF 6500 milling machine was manufactured in 2009. It features a Heidenhain ITNC 620 CNC control, a 12-position tool changer, and a spindle capable of 6000 rpm. The machine offers a machining length of 6500 mm and supports a table load of up to 500 kg/m. Additional features include a special hydraulic/pneumatic clamping unit and safety fencing. A great opportunity to buy this URBAN PF 6500 milling machine. Contact us for further details regarding this milling machine.

Overview

brand: URBAN
year: 2009
MODEL: PF 6500
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - URBAN PF 6500

Control Unit

Control Brand: HEIDENHAIN
Control Model: ITNC 620

Dimensions

Machine Weight: 6500 kg
Table Load: 500 kg

Movement

Number of Axes: 3
X-axis Travel: 6670 mm
Y-axis Travel: 695 mm
Z-axis Travel: 585 mm

Technical Specification

Spindle Power: 5.5 kW
Spindle Speed: 6000 RPM

Additional Information

Additional equipment

Heidenhain HR130 handwheel: Yes
Control panel: Can be moved along the entire length
Tool cooling: By compressed air/cold air down to -20°C
Automatic central lubrication system: Yes
Chip tray: With 6 drawers
Safety fencing: Yes
Special hydraulic/pneumatic clamping unit: 2x4-fold for bar and profile processing
Quick clamping units: 6 4-fold per side
Pendulum operation: 2 working areas with 2650 mm processing length each
Tool Changer: 12-position tool changer with disc magazine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
