Yang SMV -1000

Photo Gallery

Yang - SMV -1000ES-MIL-YAN-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

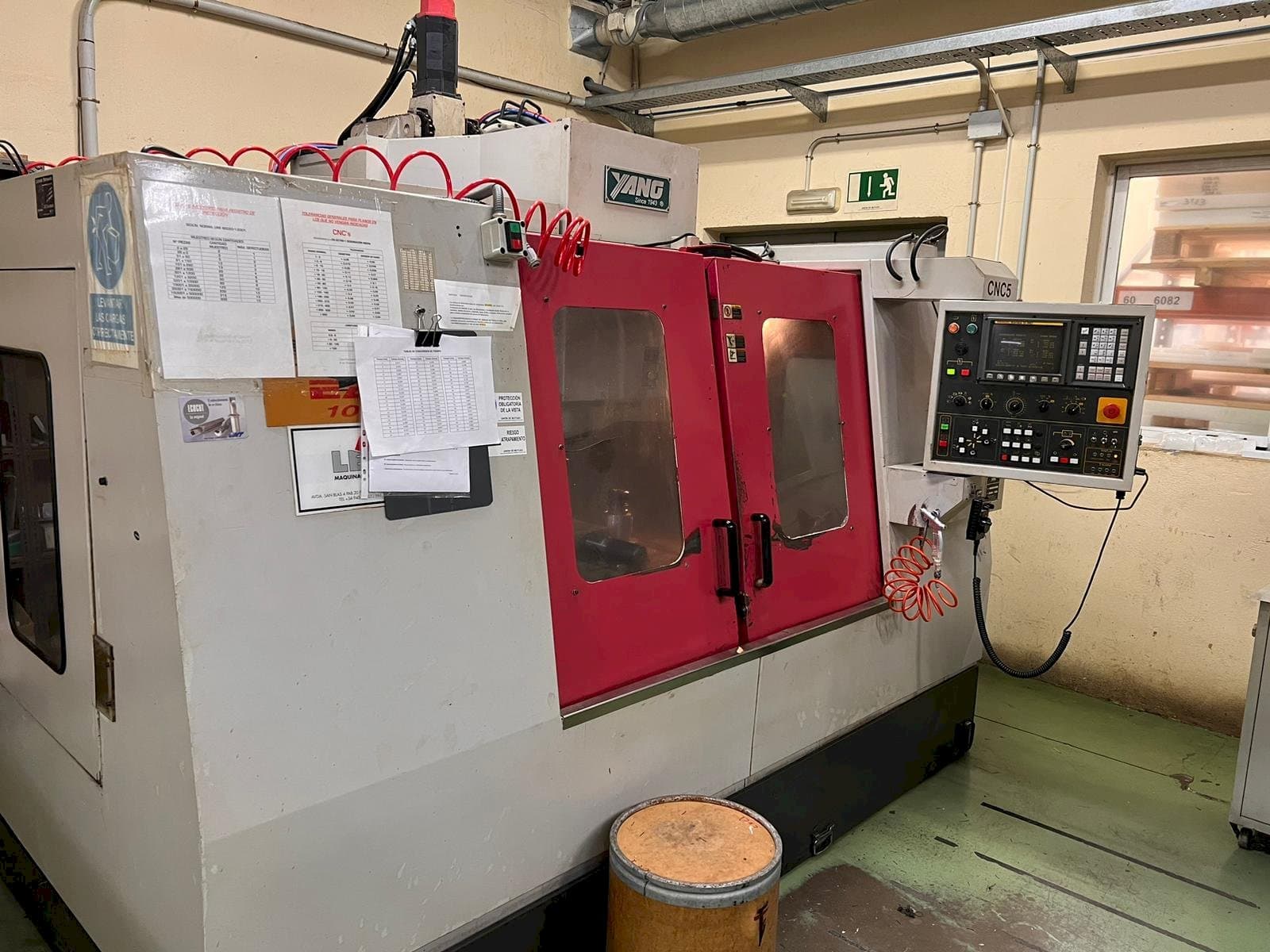

Yang SMV -1000 Vertical Machining center

Show in original language

This Yang SMV -1000 Vertical Machining center was manufactured in the year 2000 in Taiwan and has 3241 production hours. It is equipped with a Fanuc Series O-MD control unit and has 3 axis. The machine has a spindle speed of 7500 rpm.

Overview

brand: Yang
year: 2000
MODEL: SMV -1000
production hours: 3241
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Yang SMV -1000

General Data

Machine weight: 4200 kg

Control Unit

Model: Series O-MD
Brand: FANUC

Main drive

Spindle speed range: 7500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 1300 mm
Outer width: 550 mm

Tools

Slots in storage: 16
Max weight: 6 kg
Max tool diameter: 89 mm
Max tool length: 250 mm
Type of tool holder: BT40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X = 1000 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
