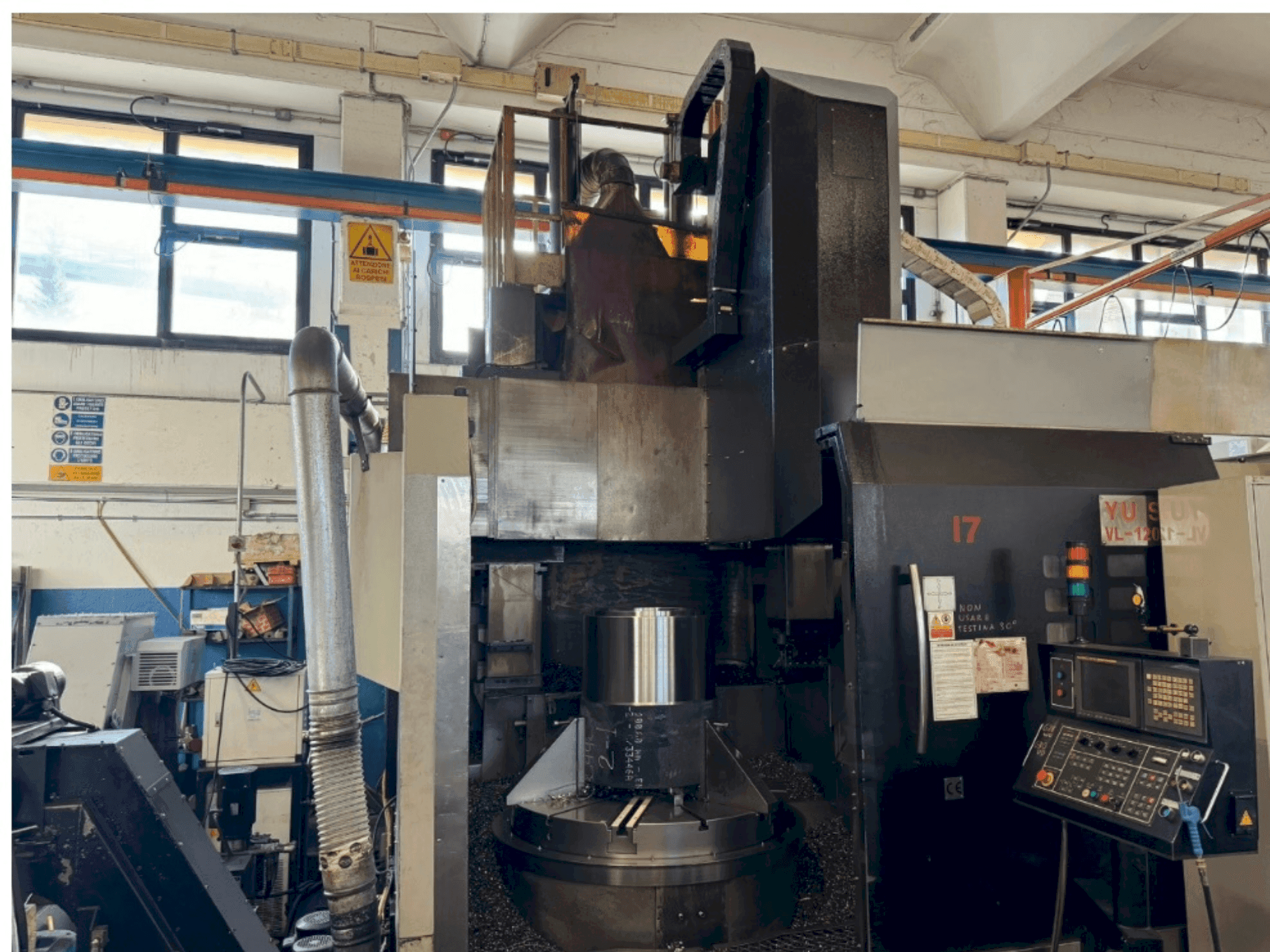

YU SHINE - YS-VL-1200 ATC+CIT-TUR-YUS-2008-00001

Additional Equipment

• - Perimeter Enclosure with Partial Upper Cover
• - Air Conditioner for Table Drive System
• - Automatic Cooling System External to Tool Holder
• - Coolant Collection Tank, Capacity: 700 Liters
• - Oil Separator
• - Hydraulic Unit for Service Power Supply, Capacity: 100 Liters
• - Automatic Lubrication System
• - Machine-Mounted Electrical Cabinet with Air Conditioner
• - End-of-Cycle Alarm Light
• - Work Area Lighting Lamp

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Special table nose
  • - Manual self-centering chuck with 4 independent jaws, Ø 1200 mm
  • - Continuously variable table rotation speed: 2-300 mm
  • - Table motor power (cont. /30 min. ): 37/45 kw
  • - Max. Table motor torque (30 min. ): 12500 nm
  • - Hydraulic stroke of movable crossbeam (4 steps of 200 mm): 800 mm
  • - Hydraulic tool holder clamping via din 69871-a50
  • - Automatic tool changer: fixed position pick-up
  • - Tool change time: approx. 30 s
  • - Max. Turning length (using movable crossbeam stroke): 1250 mm
• Qualitative Machine Benefits:
  • - Transformer
  • - Installation equipment
  • - Toolbox with essential spare parts
  • - Fanuc cnc features – model 0i-tc
  • - Ac motors and digital drives for spindle and axes (fanuc)
  • - Controlled axes: x-z
  • - Display type: 10. 4” color lcd
  • - Extended keyboard
  • - Fanuc manual guide-i standard conversational programming
  • - Graphic tool path display

Payment Terms

• Payment in advance

• Asset Financing
