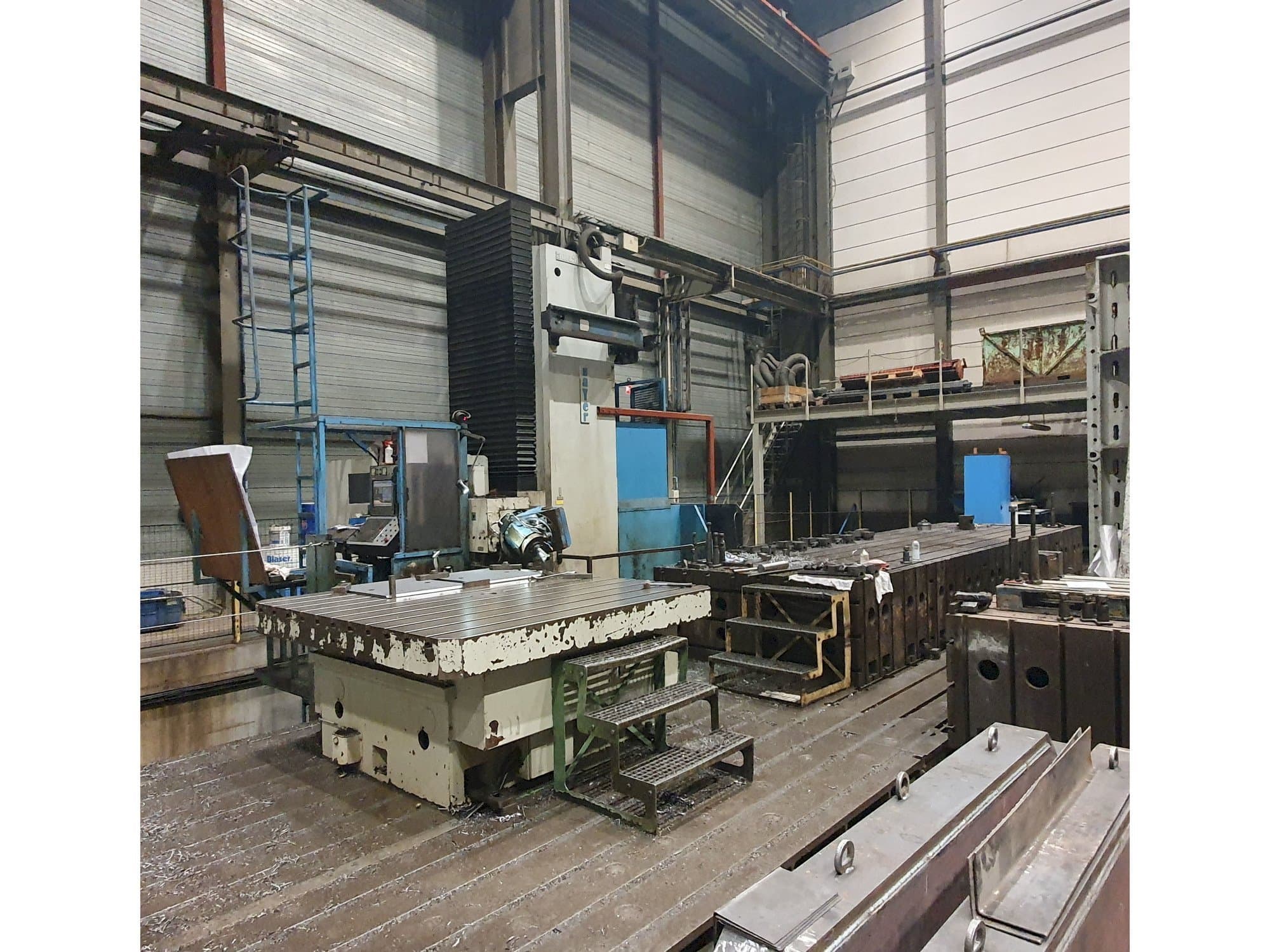

Front view of Zayer 30-KCU-12000 machine
Front view of Zayer 30-KCU-12000 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Zayer - 30-KCU-12000BE-MIL-ZAY-1998-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Zayer 30-KCU-12000 Milling machine was manufactured in the year 1998. It is equipped with a Siemens TNC 430 CA control unit and has 3 axis. The machine has a spindle speed of 35-3000 rpm.

Overview

  • brand: Zayer
  • year: 1998
  • MODEL: 30-KCU-12000
  • application type: Milling
  • Location: Belgium
  • machine type: Gantry Milling Machine
  • control unit brand: SIEMENS

Technical Information - Zayer 30-KCU-12000

General Data

  • Machine weight: 45500 kg

Control Unit

  • Model: TNC 430 CA
  • Brand: SIEMENS

Main drive

  • Spindle speed range: 35-3000 1/MIN
  • Number of axis: 3

Table

  • Outer length: 14000 mm
  • Outer width: 3500 mm
  • TSlots size: 14
  • Distance between: 250 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Movement in length: 12008 mm
      • - Cross movement: 1507 mm
      • - Vertical movement: 3008 mm
      • - Tool conus: din69871 - b50
      • - Tightening bolt for tool holder: 150 7388-2-b50
      • - # tools in magazine holder: 100
      • - Feed rate (normal): 6-5000 mm/min
      • - Feed rate in length direction (rapid traverse): 10000 mm/min
      • - Feed rate in cross direction (rapid traverse): 15000 mm/min
      • - Feed rate in vertical direction (rapid traverse): 15000 mm/min
    • Qualitative Machine Benefits:
      • - Positioning accuracy: +- 0,013 mm
      • - Reiteration accuracy: +-0,007 mm
      • - Max. Permitted torque is then 100 danm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
