➤ Used DOOSAN Dnm 5705 For sale | gindumac.com

Show in original language

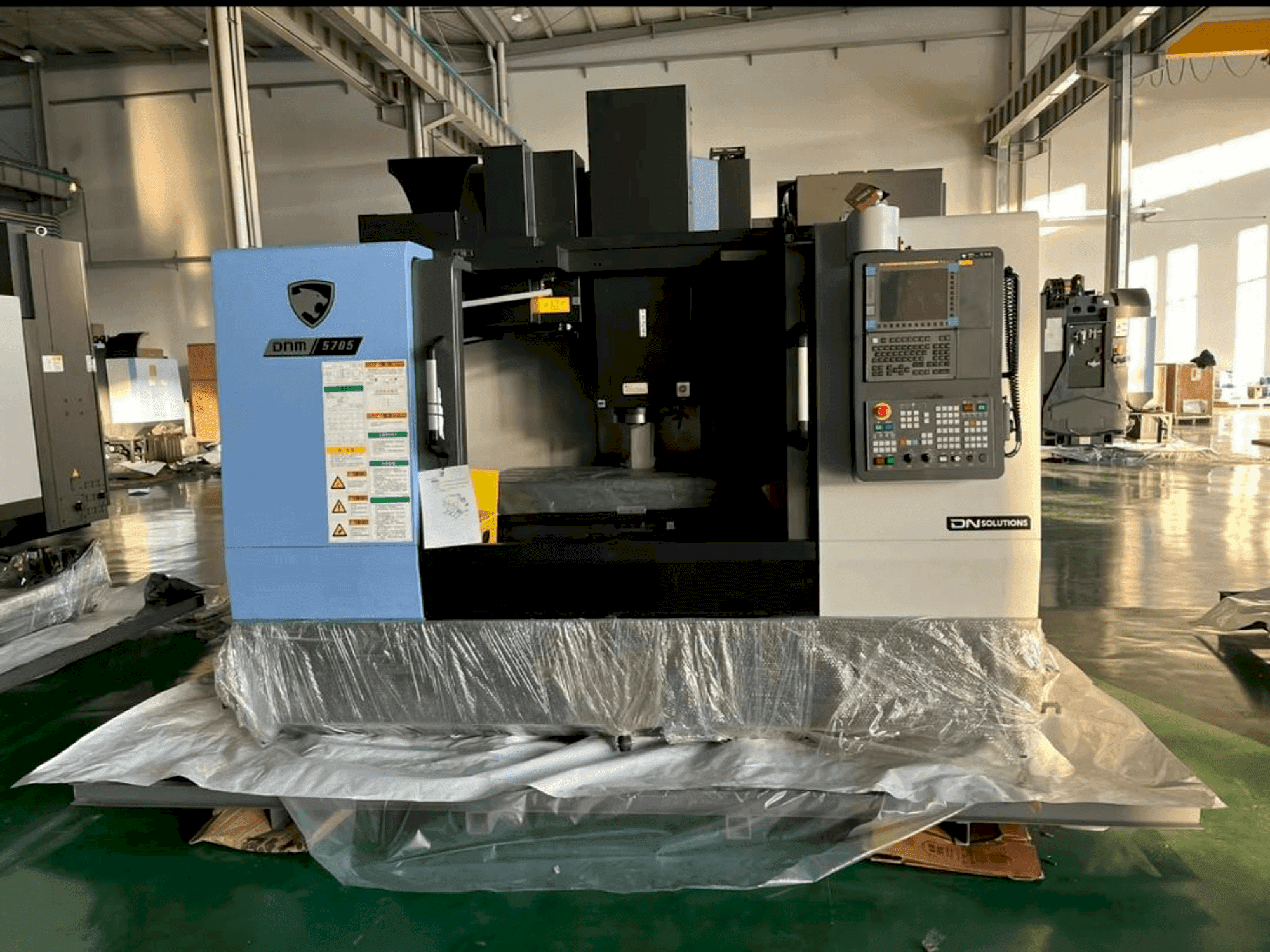

This 3-axis DOOSAN DNM 5705 vertical machining center was manufactured in 2024. It features a robust table size of 1300 x 570 mm with a loading capacity of 1000 kg, and a high spindle speed range of 8,000 to 12,000 rpm. Equipped with a BT40 tool shank type and a rapid traverse rate of 36/36/30 m/min for X/Y/Z axes, it ensures efficient machining. Ideal for precision tasks, buy this DOOSAN DNM 5705 vertical machining center. Contact us for further details regarding this machine.

Overview

brand: DOOSAN
year: 2024
MODEL: DNM 5705
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN DNM 5705

General Data

Measurements width: 2413 mm
Measurements depth: 3110 mm
Measurements height: 2985 mm
Machine weight: 6500 kg

Control Unit

Model: OiPLUS
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 - 12000 rpm 1/MIN
Spindle motor power: 11/18.5 kW
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 1050 mm
Y-AXIS Movement: 570 mm
Z-AXIS Movement: 510 mm

Additional Equipment

- Feed motor (X/Y/Z): 1.8/1.8/3 kW
- Power supply: 30 kVA
- Coolant tank capacity: 380 l

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Tool diameter: ￠80 mm
- - Max. Tool diameter adjacent to empty space: ￠125 mm
- - Max. Tool length: 300 mm
- - Max. Tool weight: 8 kg
- - Tool change time (tool-to-tool): 1. 2 s
- - Tool change time (chip-to-chip): 3. 2 s
- - High precision and fast tool changes
Qualitative Machine Benefits:
- - Robust control with fanuc oiplus

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
