➤ Used DOOSAN T3600 D For Sale | gindumac.com

Show in original language

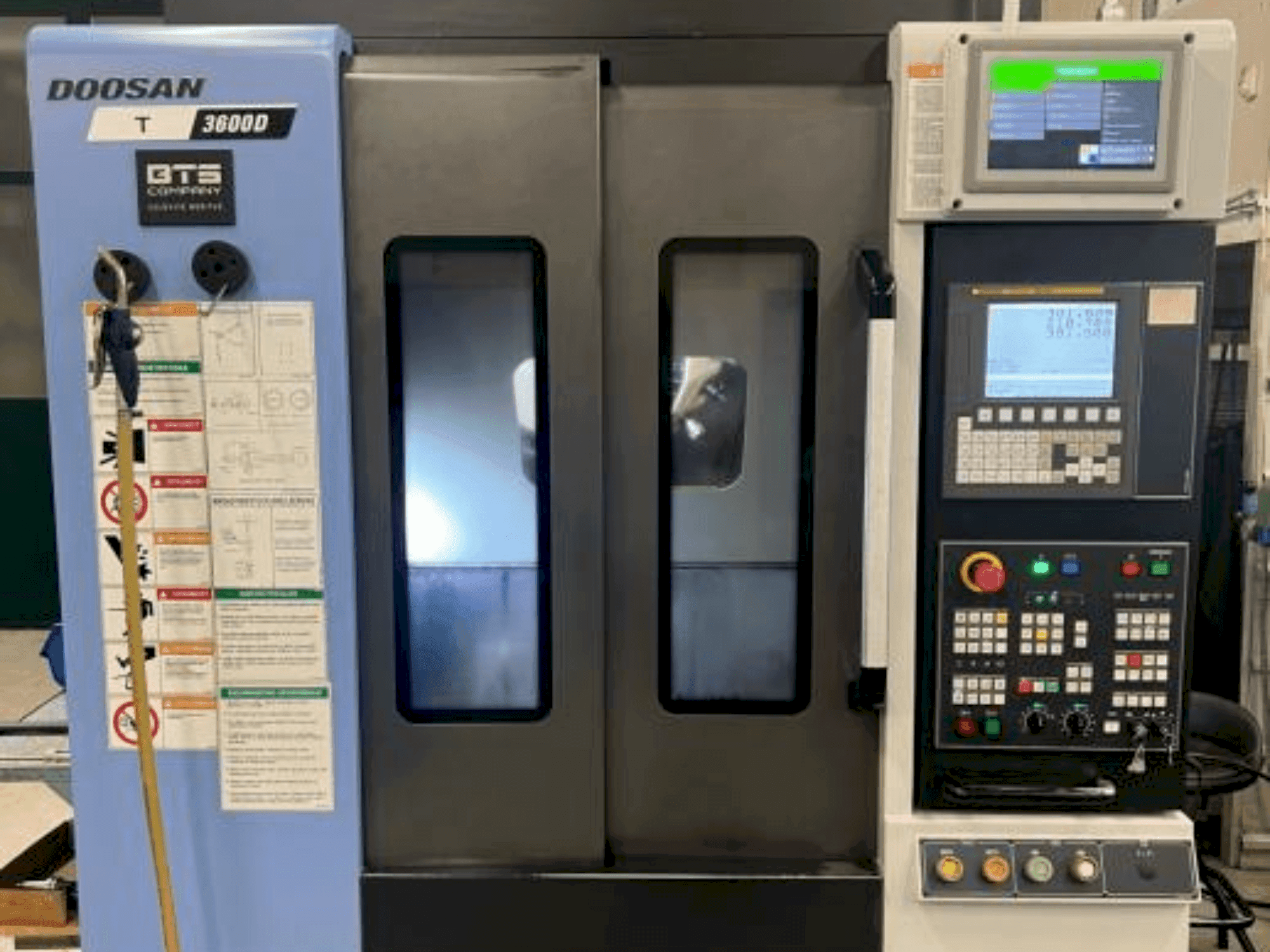

This 3-axis DOOSAN T3600 D vertical machining center was manufactured in 2016. It features a CNC FANUC I series controller, dual rotary table, and is still operational for testing. Key specifications include a max spindle speed of 12,000 rpm, spindle power of 13 kW, and a table capable of handling loads up to 200 kg. Ideal for precision machining, the DOOSAN T3600 D machine we have for sale is in very good condition. Contact us for further details regarding this vertical machining center.

Overview

brand: DOOSAN
year: 2016
MODEL: T3600 D
production hours: 3100
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN T3600 D

Control Unit

Control Brand: FANUC
Control Model: I SERIES

Dimensions

Machine Depth: 3684 mm
Machine Height: 2507 mm
Machine Weight: 5200 kg

Movement

Number of Axes: 3
X-axis Travel: 520 mm
Y-axis Travel: 360 mm
Z-axis Travel: 350 mm

Technical Specification

Spindle Power: 13 kW
Spindle Speed: 12000 RPM

Additional Information

Additional equipment

Holder (pin) BT30 - ER 25 … 5 pieces
Holder (pin) BT30 – Weldon … 2 pieces
Pulling screws … 10 pieces

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
