DOOSAN DNM 650 Vertical Machining Centre

Show in original language

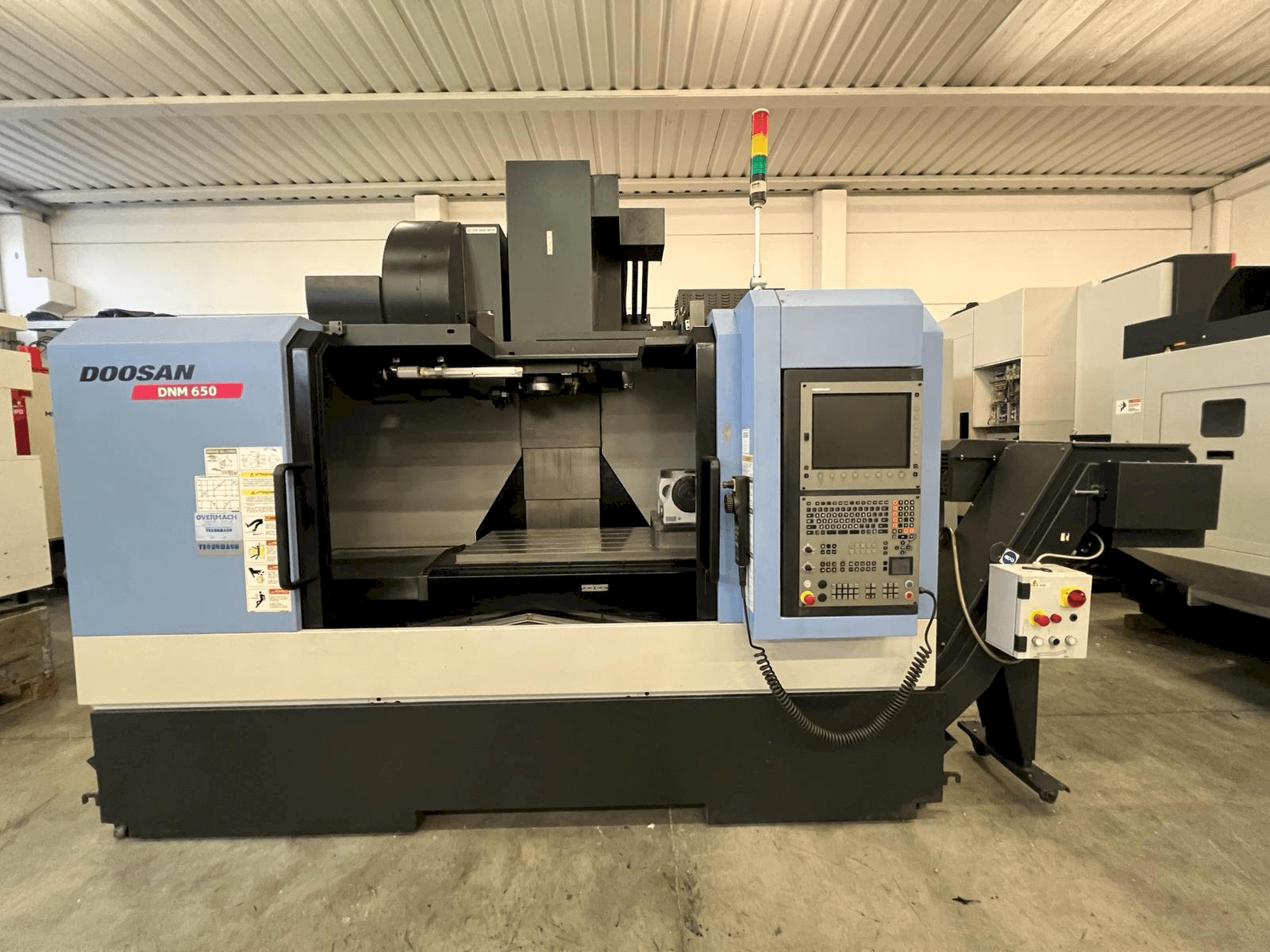

This DOOSAN DNM 650 Vertical Machining Centre was manufactured in 2012 in South Korea. It is equipped with a HEIDENHAIN iTNC 530 control and internal cooling - IKZ - 18 bar. This 5-axis machining centre has a ISO 40 spindle with 12,000 rpm and 18kW motor power. It comes with presetting, chip conveyor and a 30 tool magazine. The table size is 1300 x 700 mm.

Overview

brand: DOOSAN
year: 2012
MODEL: DNM 650
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - DOOSAN DNM 650

General Data

Machine weight: 8500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 18.5 kW
Tool taper: ISO 40
Number of axis: 5

Movement

X-AXIS Movement: 1270 MM
Y-AXIS Movement: 650 MM
Z-AXIS Movement: 610 MM

Table

Outer length: 1300 mm
Outer width: 700 mm

Tools

Number of stations: 30
Type of tool holder: ISO 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Internal Cooling - IKZ - 18 bar
- Chip Conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Presetting: yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
